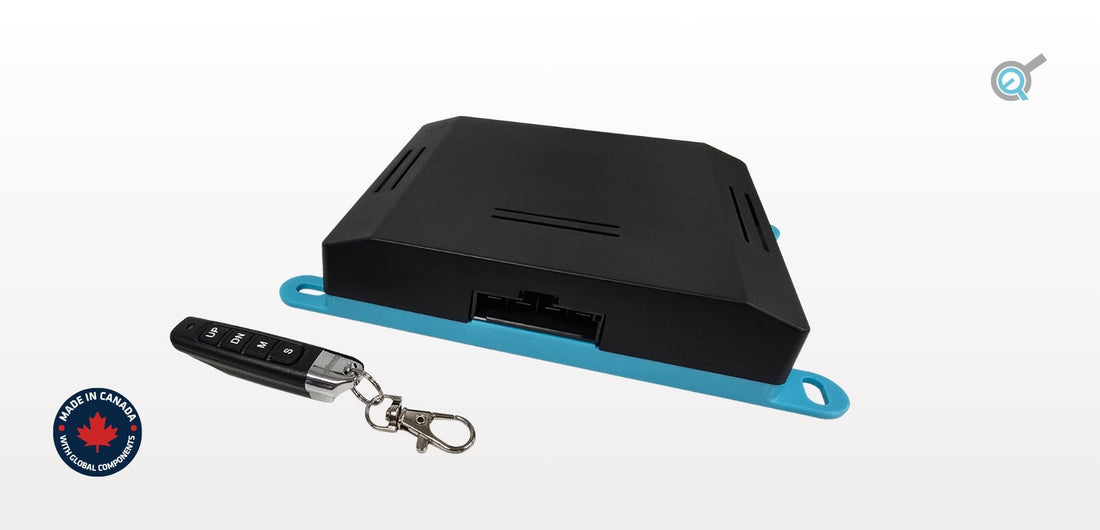

We’re excited to announce the release of our PA-CB40-4 Synchronized Motion Control System. Designed for user-friendly operation, these actuator control boxes, manufactured in Canada, bring more flexibility and intelligence to how you operate your Hall effect electric linear actuators. Whether you're working on an industrial actuator system, smart home actuator setups, or custom projects requiring synchronous motion, the PA-CB40-4 Synchronized Motion Control System delivers power, advanced features, and convenience in a compact plug-and-play package.
Key Features and Specs
Our PA-CB40-4 is a 4-channel control box for linear actuators engineered to simplify motion control and extend the functionality of your actuators. Each control box includes our new and improved RF wireless actuator controller remotes with a 100 ft range while offering enhanced protection features to ensure safe and efficient operation.
PA-CB40-4 – Precision Four-Channel Synchronous Motion
If your application requires perfectly synchronized movement between four actuators, the PA-CB40-4 is your go-to 4-channel control box for linear actuators. Designed for use with Hall effect feedback actuators, it ensures all four actuators move at the same speed and in the same direction, thanks to its built-in synchronization algorithm. Key features include:
- 12.5 A output @ 12 VDC Per Channel (6.25 A @24 VDC Per Channel)
- Synchronization for four Hall effect actuators
- Input voltage: 12 or 24 VDC
- Wireless remote mode selection
- Robust safety features
- Pairing for up to 4 wireless remotes
With the PA-CB40-4 synchronized motion control system, you gain advanced safety features that include real-time sync monitoring and protection against short circuits, voltage faults, overloads, and overuse. For more detailed technical information, check out our PA-CB40-4 datasheet.
Installation and Compatibility: Plug-and-play Connectors
Our PA-CB40-4 is built specifically for actuators that have Molex Mini-Fit Jr 6-Pin connectors and Hall effect feedback compatibility, offering plug-and-play convenience within the matching voltage and current requirements. The suitable wiring harness options with Molex connectors are sold separately and are used to connect your linear actuator and power source to the PA-CB40-4 synchronized motion control system, ensuring a secure and clean connection.
Use Cases and Applications
The PA-CB40-4 synchronized motion control system is perfect for projects requiring synchronized movement of four actuators. With enhanced safety mechanisms and various user convenience features, this 4-channel control box for linear actuators is a top-tier choice for advanced linear motion applications found in:
- Smart home actuator setups
- Industrial synchronized actuator systems
- Automotive use cases
- Window and gate automation
FAQ Questions
How many actuators can the 4-channel control box operate simultaneously?
Our PA-CB40-4 synchronized motion control system operates 4 actuators together simultaneously.
What is the difference between momentary and non-momentary control modes?
Momentary control mode requires the user to continuously press and hold the wireless remote’s button to move the actuators. Once the button is released, motion immediately stops. Non-momentary control mode allows the actuator to continue moving automatically after a single button press until it reaches its limit switch or is stopped manually.
How does the control box handle synchronization between multiple actuators?
Each actuator sends real-time positional feedback signals to the control box through its Hall sensors. The control box continuously monitors these feedback pulses and automatically adjusts motor speed and current to ensure all actuators move in perfect unison—even under uneven loads or changing conditions.
IN SUMMARY
The PA-CB40-4 is part of our next-generation control boxes offering advanced smart and safety features. Compact, efficient, and easy-to-use, our 4-channel control box for linear actuators marks an exciting upgrade in our product lineup for synchronous motion control of multiple actuators.
We hope you found this as informative and interesting as we did, especially if you were looking into suggestions for your next synchronized motion control system. If you have any queries or wish to discuss our products further, please do not hesitate to contact us! We are experts in what we do and will be happy to assist however we can.
