12-24 VDC - Synchronized 4 Channel Hall Effect Actuator Control - 25A - Wireless Remotes

12-24 VDC - Synchronized 4 Channel Hall Effect Actuator Control - 25A - Wireless Remotes

Model: PA-41-4-12V24V

Low stock
Ships within 24 hours
Volume Discount
1-6 units $420.00 USD
7-9 units $407.40 USD
10–19 units $399.00 USD
20–49 units $390.60 USD
Regular price $420.00 USD
Regular price Sale price $420.00 USD
Sale Sold out
  • Linear Actuator Calculator
  • Get Free Actuator Guide
View full details
Description
PA-41-4-12V24V Specifications

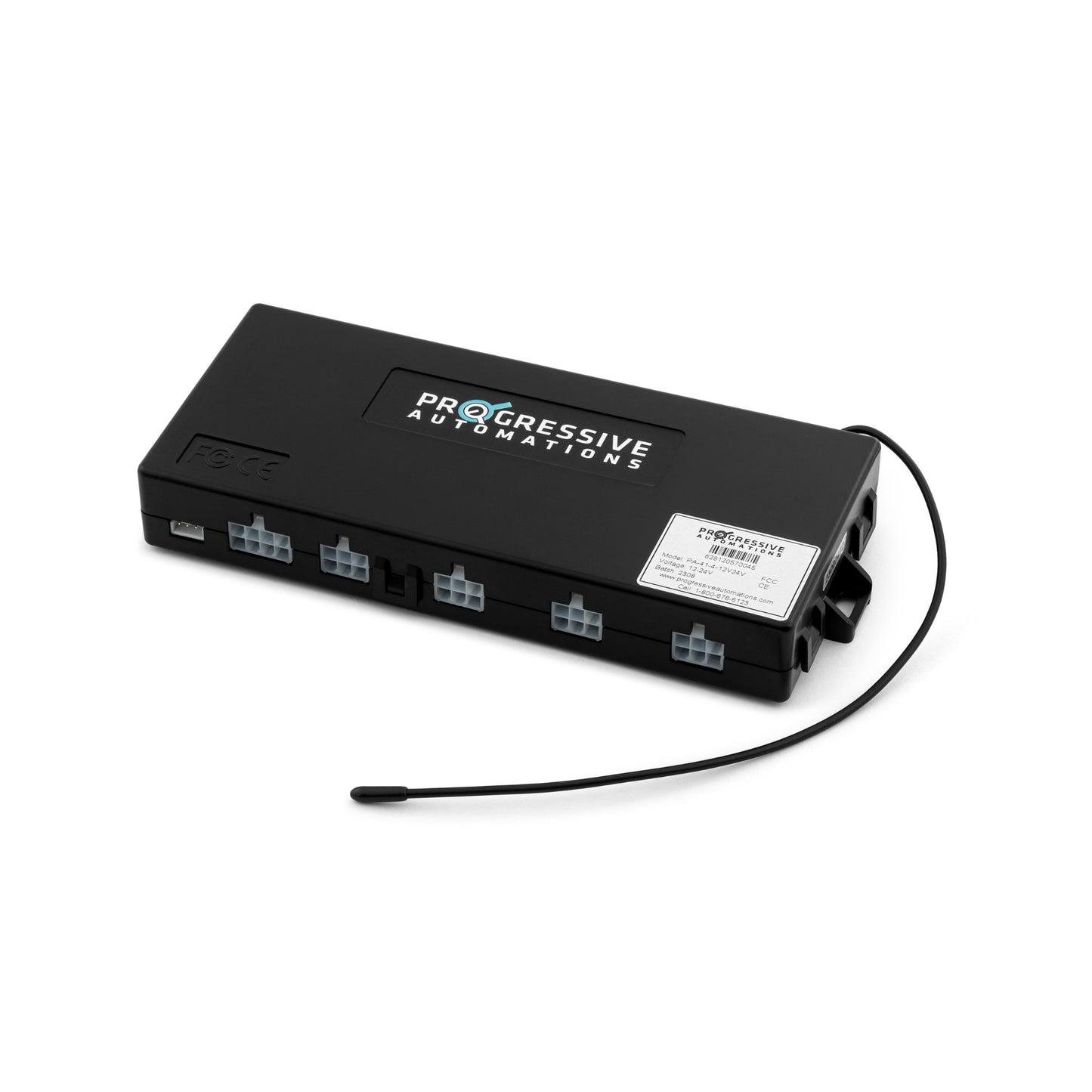

The PA-41-4-12V24 control box allows for synchronous control of four linear actuators with hall effect feedback. Using either of the 2 wireless remotes provided, users have the ability to extend, stop, and retract their synchronized actuators from up to 100 feet away (open air). The control box has both momentary and non-momentary capabilities for the wireless remotes, a wired RC-13 momentary rocker switch, as well as an in-line fuse to protect against short circuits.

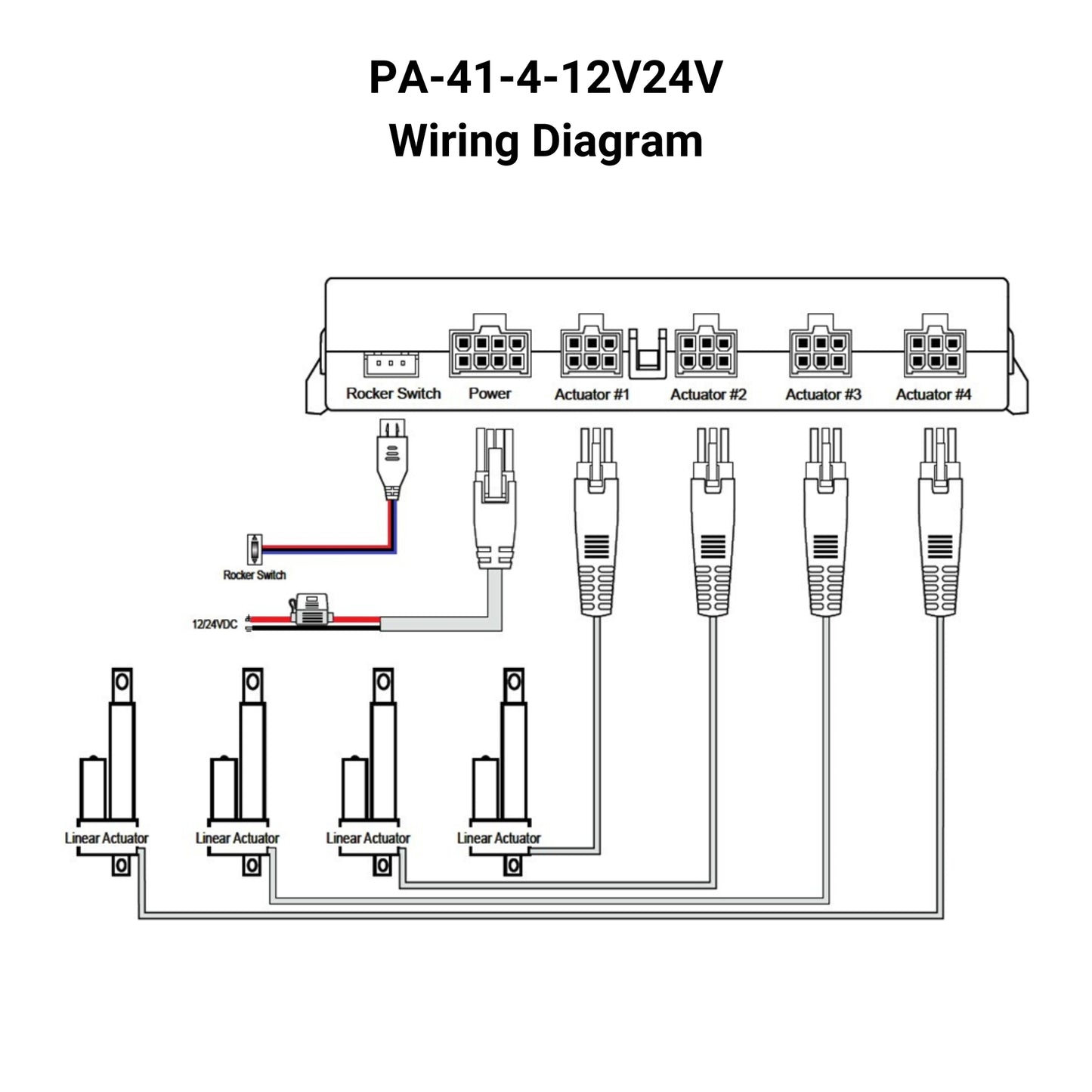

Using the included wire harness, connect the linear actuators to the control box. Apply 12-24 VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-41-4-12V24 is designed to handle a maximum of 6.25 A per channel at 12 VDC and 5 A per channel at 24 VDC.

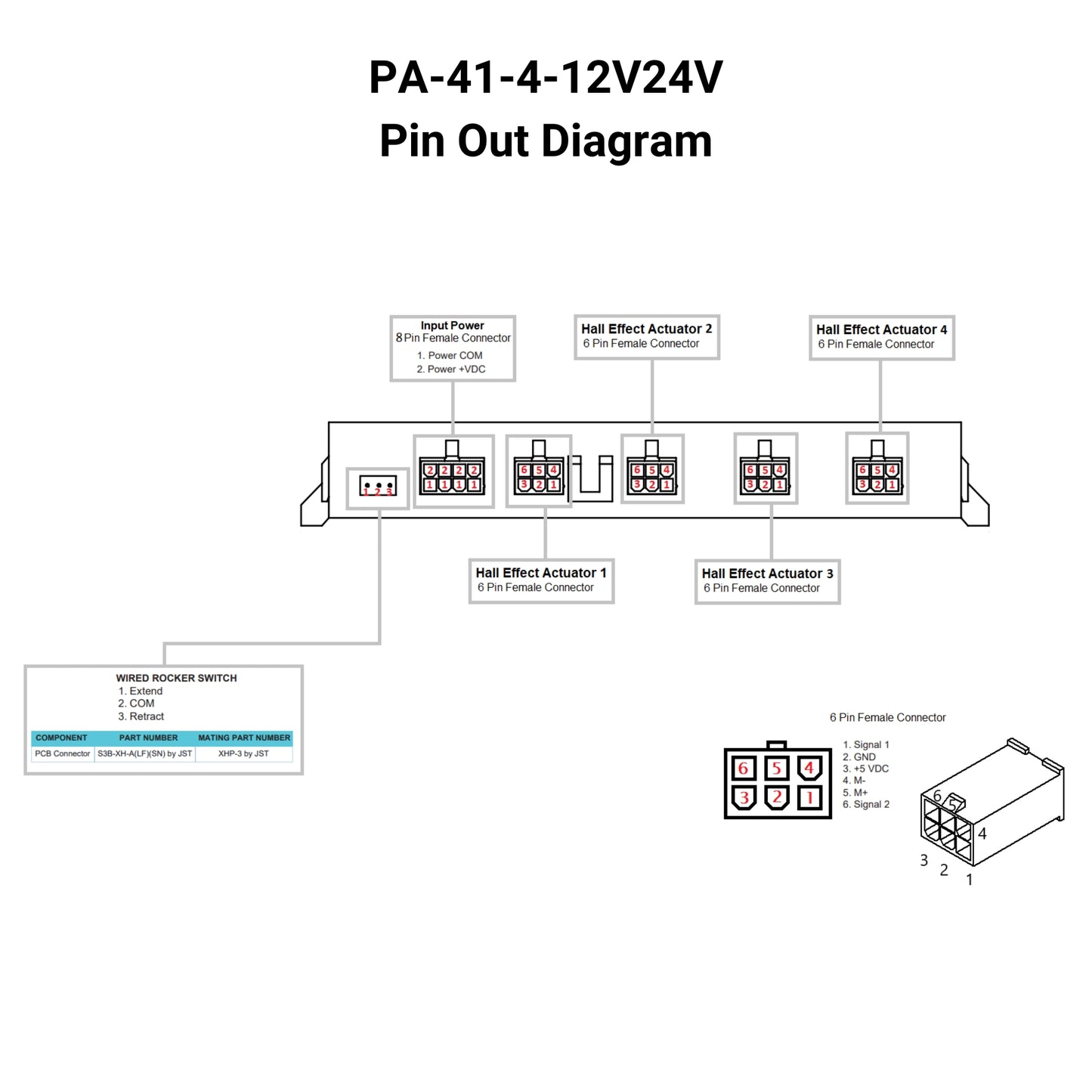

Please see the PA-41-4-12V24 Data Sheet for information about controls, wiring, and troubleshooting.

* Only compatible with 12 VDC or 24 VDC hall effect type actuators. Controls 4 matching Hall Effect actuators simultaneously to travel the same speed together in the same direction. Ensure PA-04-HS actuators are not fully loaded to stay within the current rating.

Overview
PA-41-4-12V24V Specifications

The PA-41-4-12V24 control box allows for synchronous control of four linear actuators with hall effect feedback. Using either of the 2 wireless remotes provided, users have the ability to extend, stop, and retract their synchronized actuators from up to 100 feet away (open air). The control box has both momentary and non-momentary capabilities for the wireless remotes, a wired RC-13 momentary rocker switch, as well as an in-line fuse to protect against short circuits.

Using the included wire harness, connect the linear actuators to the control box. Apply 12-24 VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-41-4-12V24 is designed to handle a maximum of 6.25 A per channel at 12 VDC and 5 A per channel at 24 VDC.

Please see the PA-41-4-12V24 Data Sheet for information about controls, wiring, and troubleshooting.

* Only compatible with 12 VDC or 24 VDC hall effect type actuators. Controls 4 matching Hall Effect actuators simultaneously to travel the same speed together in the same direction. Ensure PA-04-HS actuators are not fully loaded to stay within the current rating.

Product Specifications
Number of Channels4
Input Voltage 12-24 VDC
Output Voltage 12-24 VDC
Max Current at 12VDC Per Channel 6.25 A
Max Current at 24VDC Per Channel 5 A
Duty Cycle 10% (2 min on, 18 min off)
Feedback Input Hall Effect Sensor
Operational Temperature -30°C to 60°C (-22°F to 149°F)
Housing Color Black
Housing Material Plastic
Certifications CE, FCC

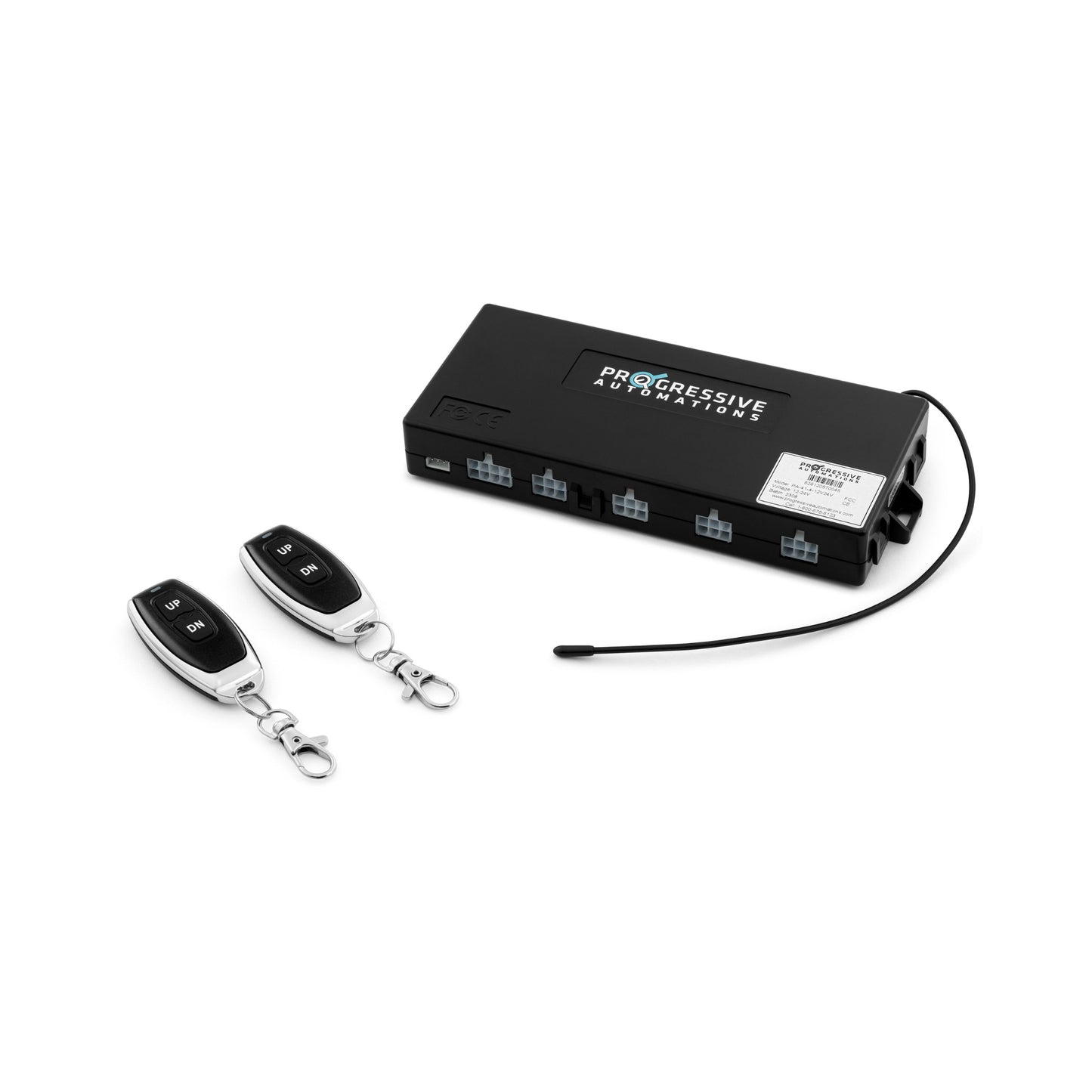

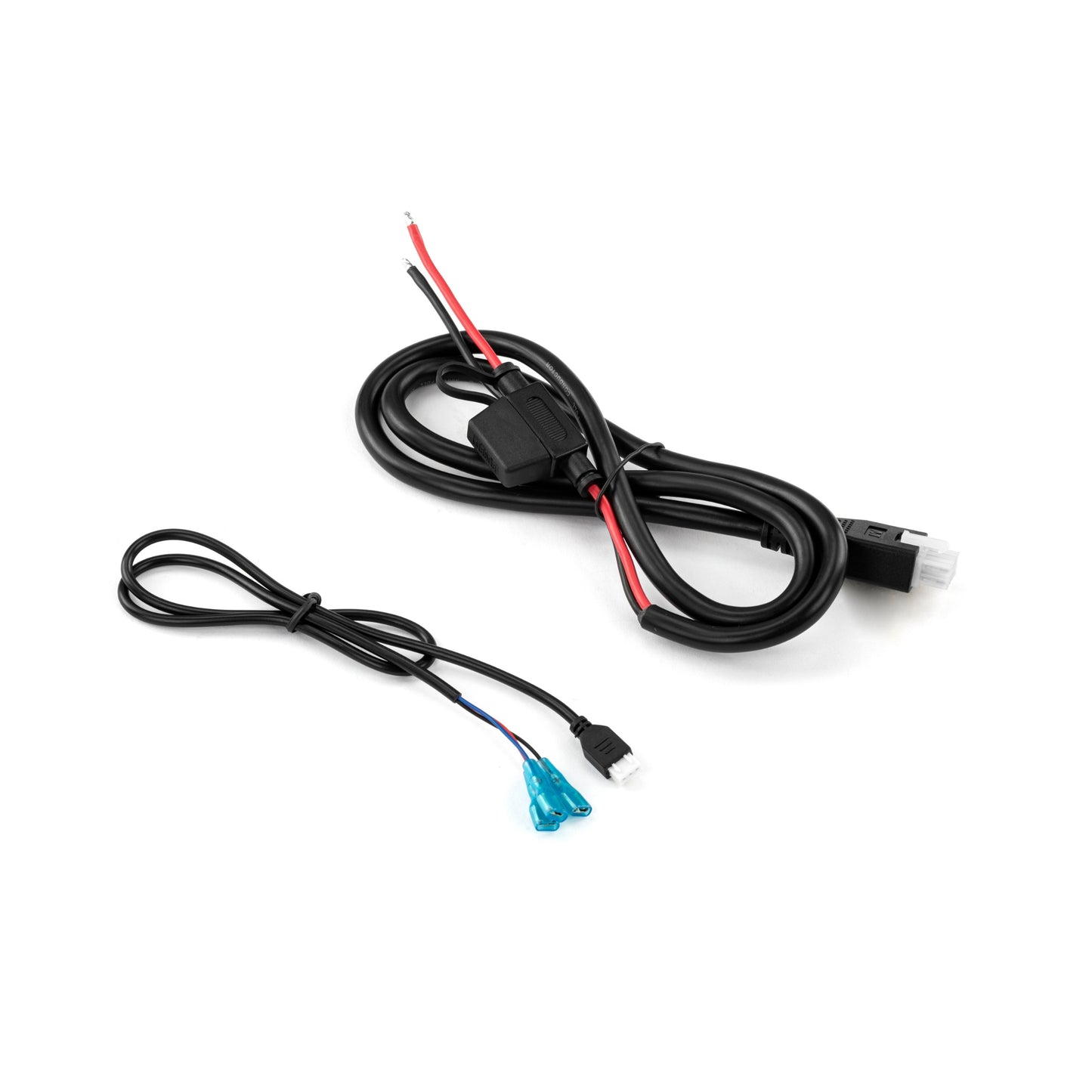

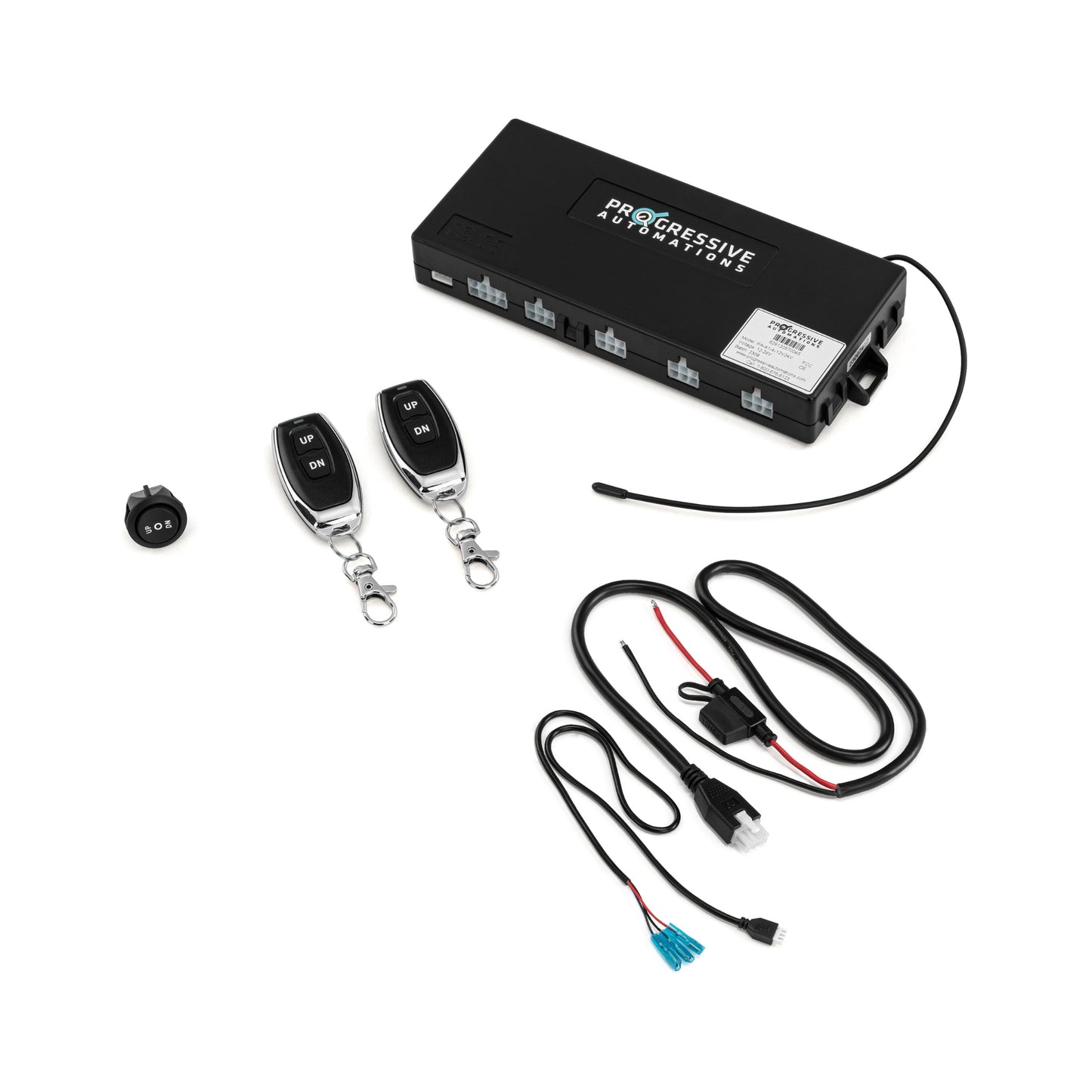

Kit Includes 1 control box, 2 wireless remotes, 1 power wire harness w/ in-line 30A fuse, 1 Remote Sync Pushbutton, Wired Rocker Switch (RC-13)
Wireless Frequency 433.92 Mhz
Wireless Range 100 Ft

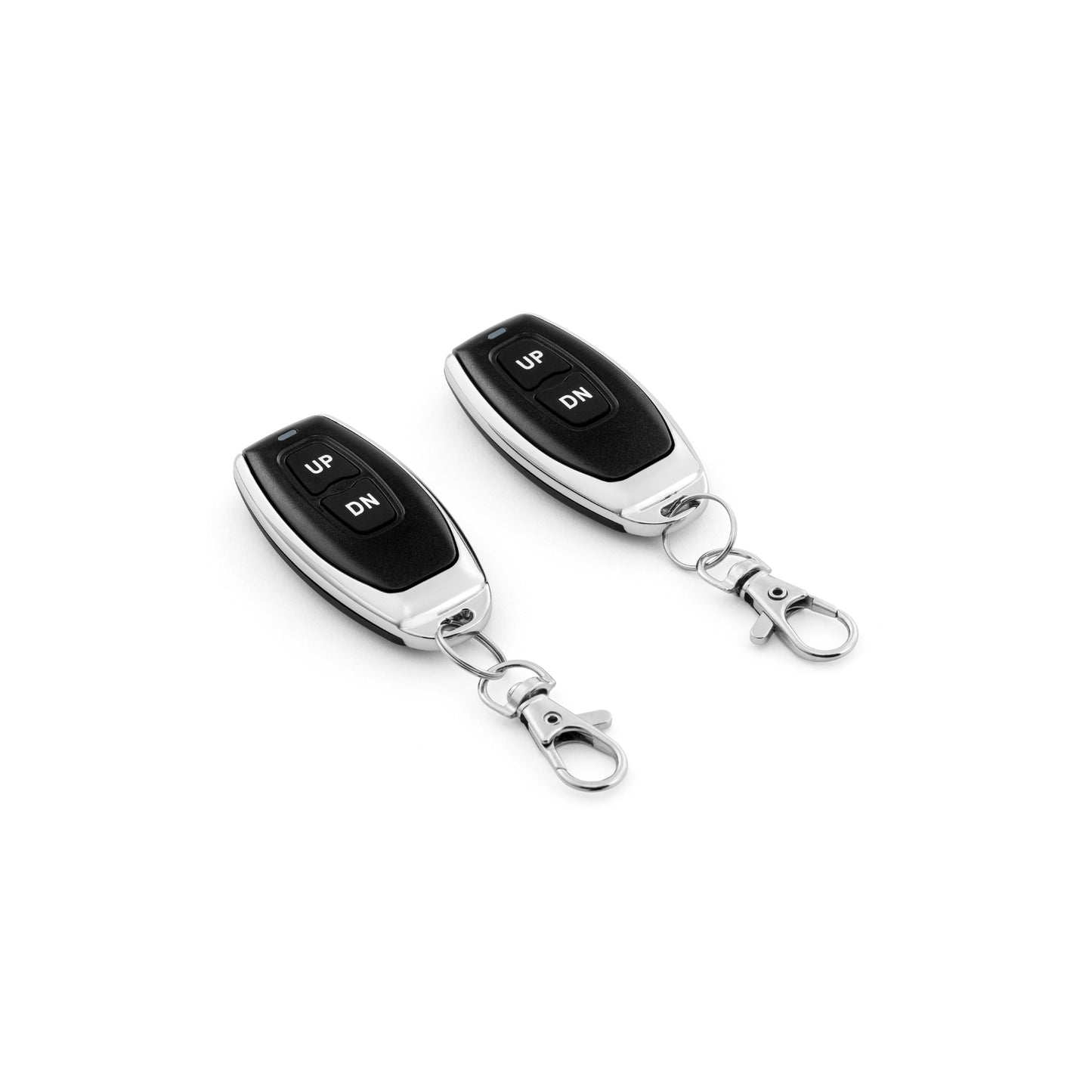

Wireless Remote Functions Up, Down, Pause (Momentary/Non Momentary Modes)
Wired RockerIncluded
Remote Battery Type 2x CR2016 3V Lithium cell

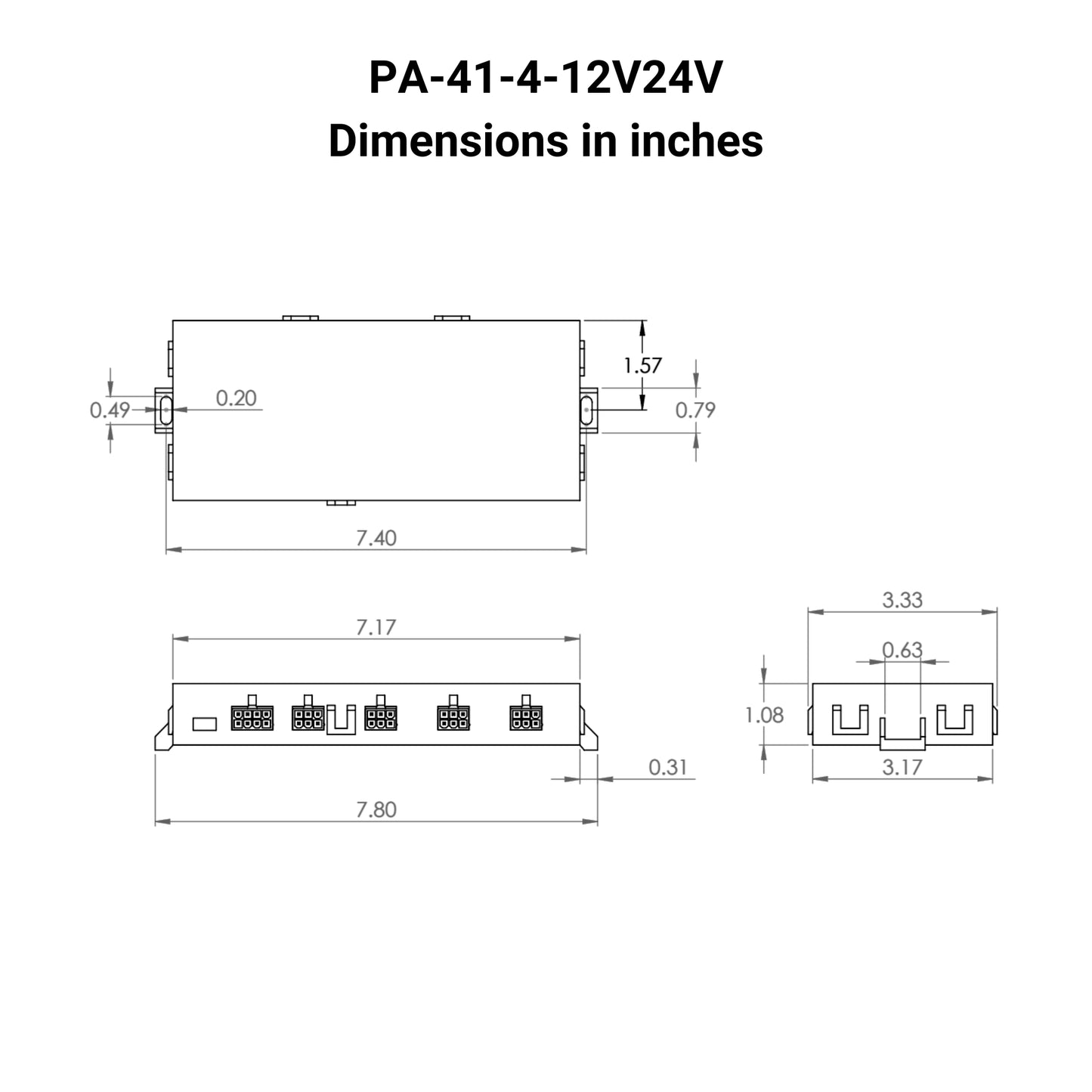

Dimensions 7.87" x 3.35" x 1.10"
Warranty18 Months
