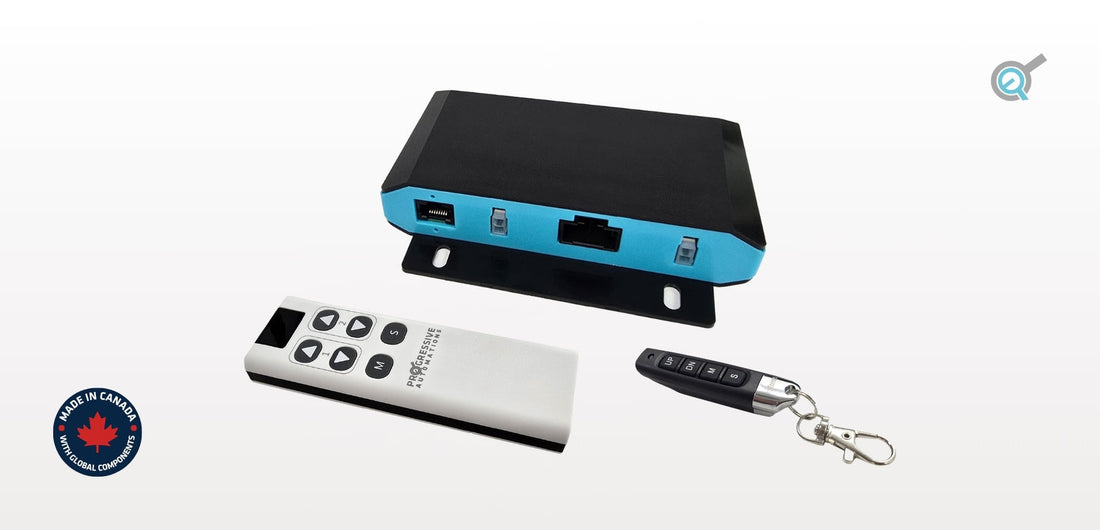

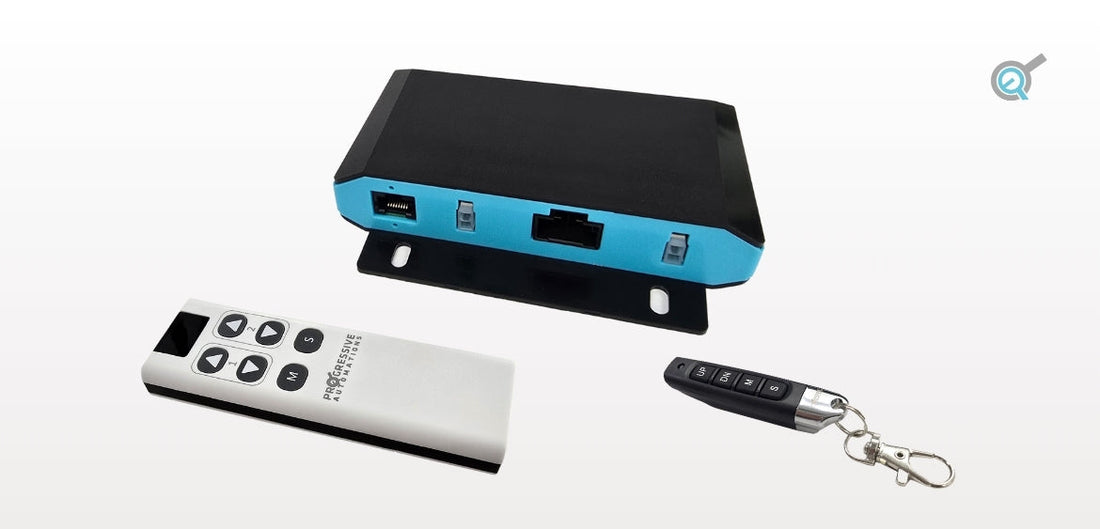

The advancement of actuator technology and automation systems has created a growing need for control solutions that combine high efficiency, versatility, and intelligent functionality — all within a compact, wireless design. To meet this demand, we’re excited to introduce the PA-CB30 as our new actuator control system to offer wireless high performance and advanced safety features in a versatile compact actuator control box! In this article, we’ll take a closer look at the key specifications, safety innovations, and practical applications that make the PA-CB30 dual-channel control box a powerful and reliable choice for your next project.
Key Technical Specifications
The PA-CB30 control box supports 2-wire brushed DC motor operation through 12V and 24V actuator compatibility, rated per channel to handle 12.5A at 12 VDC or 6.25A at 24 VDC. Apply 10 to 26 VDC across the two input power wires, and the system is now ready to use with our 2-wire linear actuators connected to the output ports. Capable of either individual or dual parallel control, this 2 channel actuator controller also offers advanced safety features and wireless versatility in a compact actuator control box.
The suitable wire harness options with Molex connectors are sold separately and are used to connect your linear actuator to the PA-CB30 dual-channel control box. Electric linear actuators with the Molex Mini-Fit Jr 2-Pin Connector are plug-and-play for easy integration. As a 25% duty cycle control box, the PA-CB30 control box has a maximum continuous operational time of 5 minutes before a cool-down period to avoid overheating.
Wireless Control Features
The PA-CB30 control box can be paired with up to 4 remotes for flexible control options and can be paired with either the RT-40 or RT-41 wireless remotes. All the compatible 433 MHz wireless remotes offer wireless remote mode selection, smooth motion mode, momentary and non-momentary control to match a broad range of user preferences.
When paired with the RT-40 4-button remote, it allows parallel control of two actuators, including up, down, stop, and programming functions from a range of 100 ft (30.48m) in the open air. For applications requiring individual control, selecting the RT-41 as your included RF 6-button remote provides dedicated up/down control for each channel, along with stop and programming functions from a range of 60 ft (18.29m) in the open air.
Smart Safety and Efficiency
The PA-CB30 dual-channel control box is equipped with multiple layers of protection to ensure reliable operation and protect components from electrical damage. Built-in safety features include:
- Out-of-range input voltage protection
- Overload protection
- Short circuit protection
- Input voltage reverse polarity protection
- 2x LED indicators for troubleshooting error modes
There is also a smart power saving mode where the sleep mode current draw is 4 mA at 12 VDC, with an instant wake-up sleep mode response time of 100 ms and a standby response time of 60 ms. Offering 99% efficiency in both 12V and 24V, direct to the control box allows for optimized performance without sacrificing responsiveness. (Note that the power cable is not included in this calculation as it varies in gauge and length.) Please see the PA-CB30 control box data sheet for information about controls, wiring, and troubleshooting steps.
Applications and Compatibility
This dual-channel control box is ideal for a variety of environments and applications. The PA-CB30 dual-channel control box delivers versatility in a compact design, making it an excellent choice for installations where space is limited but reliability is essential:
- home automation controller
- robotics actuator controller
- modular lifting system control
Plug-and-play compatibility with actuators utilizing the Molex Mini-Fit Jr 2-Pin Connectors allows our 2 channel actuator controller to easily integrate into new or existing motion control systems. The Molex Mini-Fit Jr connectors ensure simple and secure wiring, and the optional wire harnesses make setup even easier.
FAQ Questions
What actuators are compatible with the PA-CB30 control box?
-The PA-CB30 control box supports 2-wire brushed DC motor operation through 12V and 24V actuator compatibility, rated per channel to handle 12.5A at 12 VDC or 6.25A at 24 VDC. Actuators with the Molex Mini-Fit Jr 2-Pin Connector are plug-and-play. If needed, the suitable wire harness options with Molex connectors are sold separately and are used to connect your linear actuator to the PA-CB30 control box.
How many remotes can I pair with the PA-CB30?
-The PA-CB30 dual-channel control box can be paired with up to 4 remotes.
Does the PA-CB30 support both 12V and 24V actuators?
-Yes, the PA-CB30 dual-channel control box accepts an input of 10 to 26 VDC across the power wires and is designed to support both 12V and 24V actuator compatibility.
What safety features does the control box offer?
-Safety features include out-of-range input voltage, overload, short circuit, and input voltage reverse polarity protection. There is also a smart power saving mode where the sleep mode current draw is 4 mA at 12 VDC with instant wake-up, wireless remote mode selection, smooth motion mode, momentary and non-momentary control, and 2x LED indicators for troubleshooting.
Can I use the PA-CB30 for dual-motor applications?
-Yes, the PA-CB30 dual-channel control box has two output ports capable of controlling 2 actuators for dual-motor applications.
Conclusion
Compact, efficient, and powerful, the PA-CB30 dual-channel control box delivers intelligent motion control in a user-friendly form factor. Whether you need parallel motion, independent control, or wireless flexibility, the PA-CB30 control box offers exceptional performance and reliability.
We hope you found this as informative and interesting as we did, especially if you were looking into suggestions for a dual-channel control box solution for controlling multiple actuators. If you have any queries or wish to discuss our products further, please do not hesitate to contact us! We are experts in what we do and will be happy to assist however we can.
