12 V DC Micro Control Box - 1 Channel - 3,5A - Wireless Remote

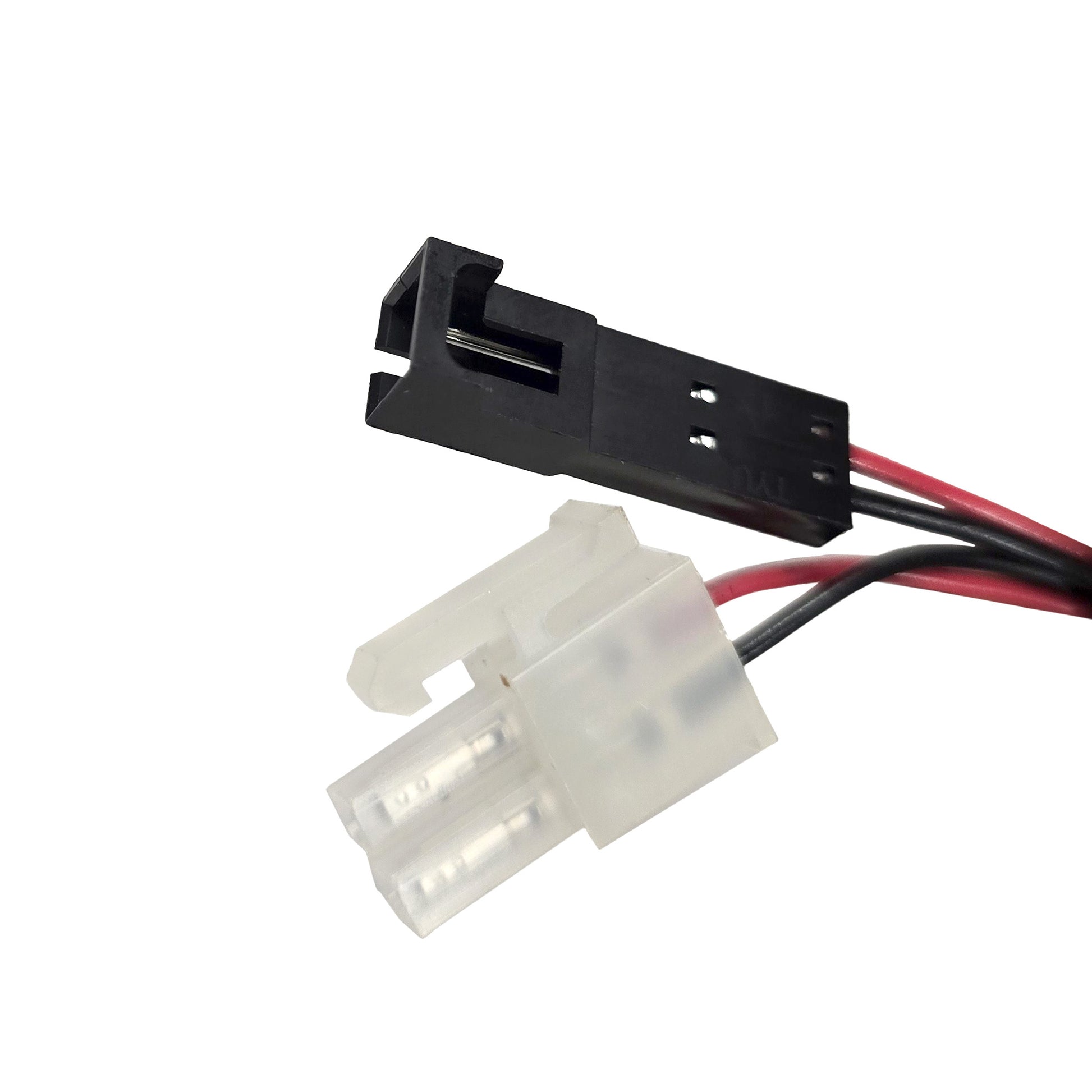

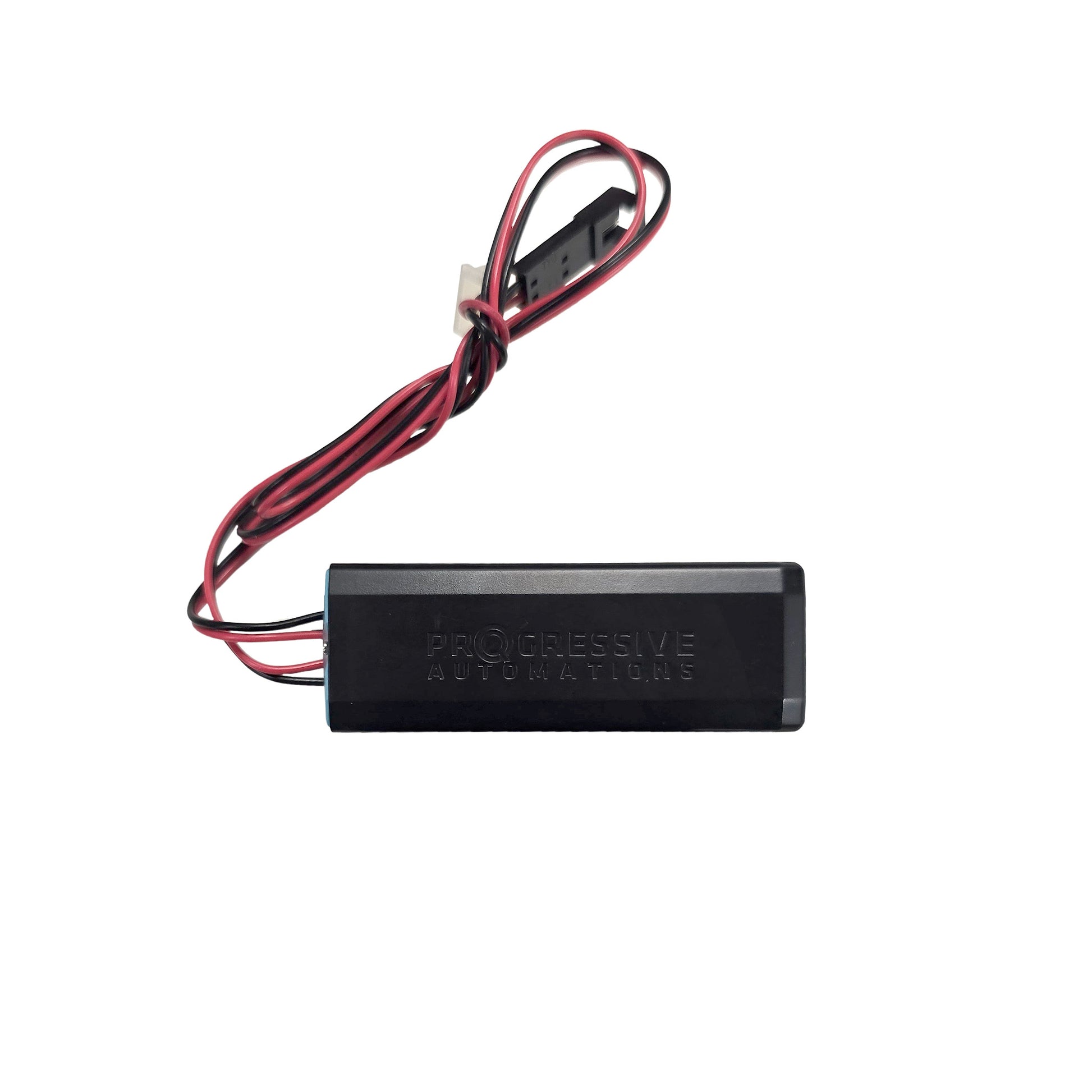

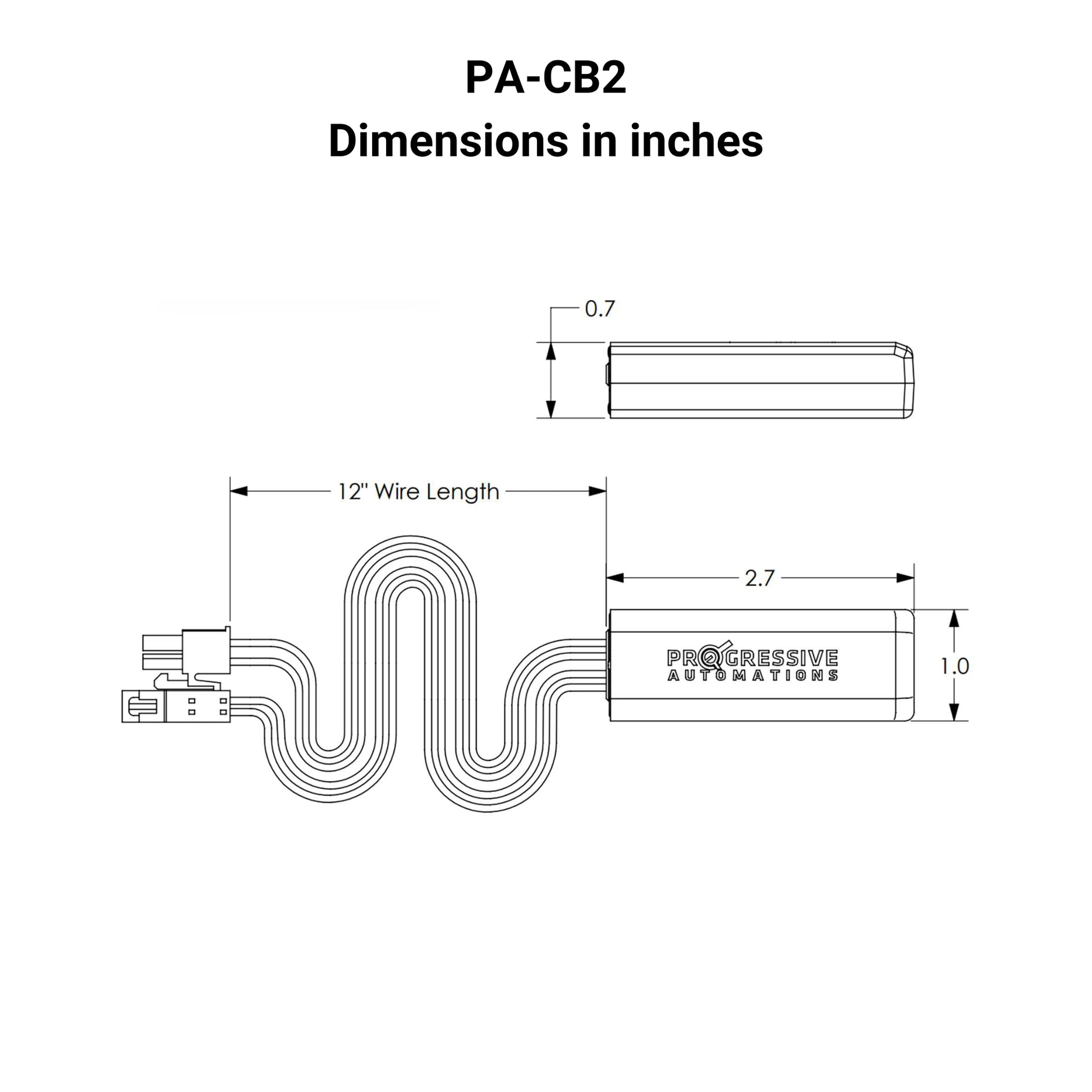

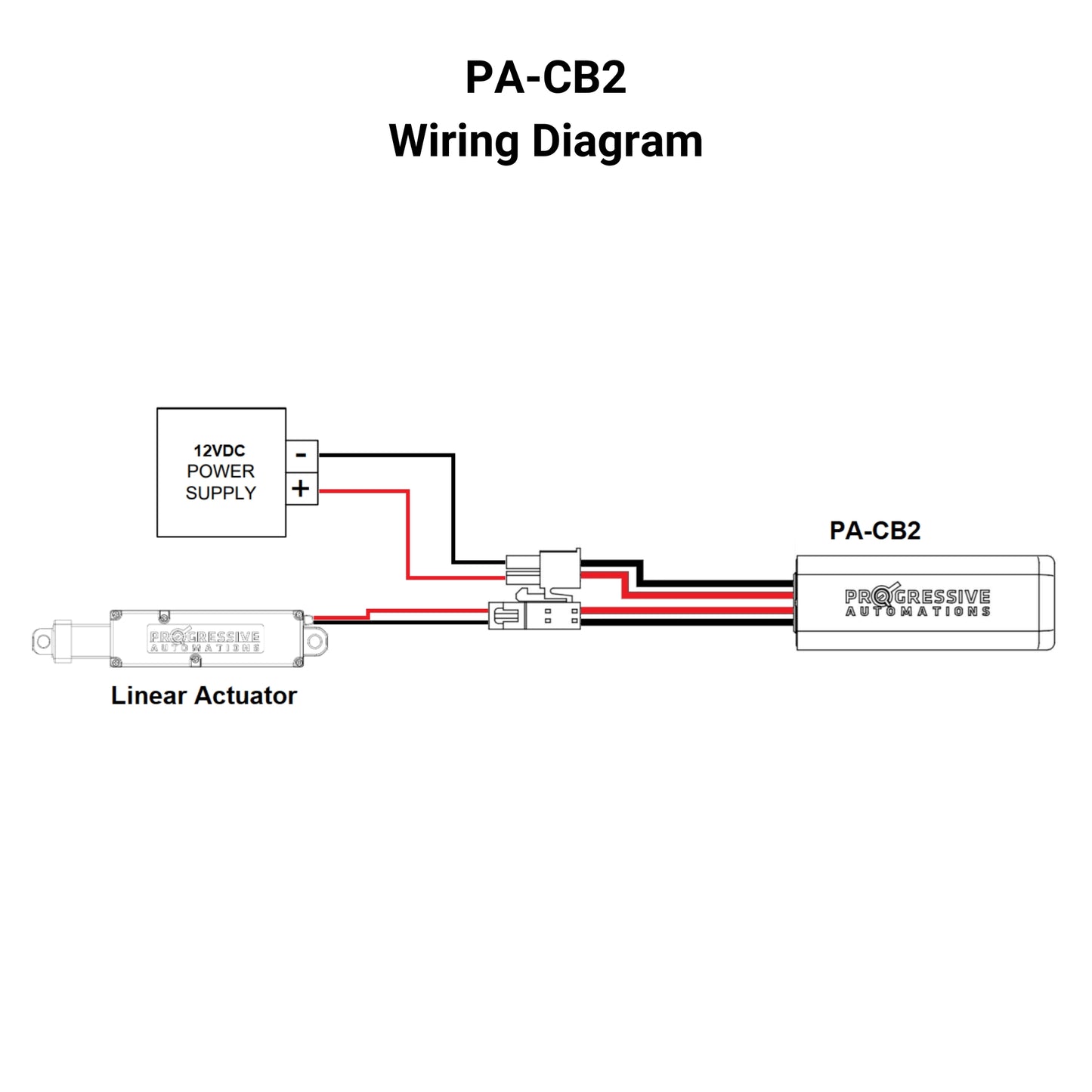

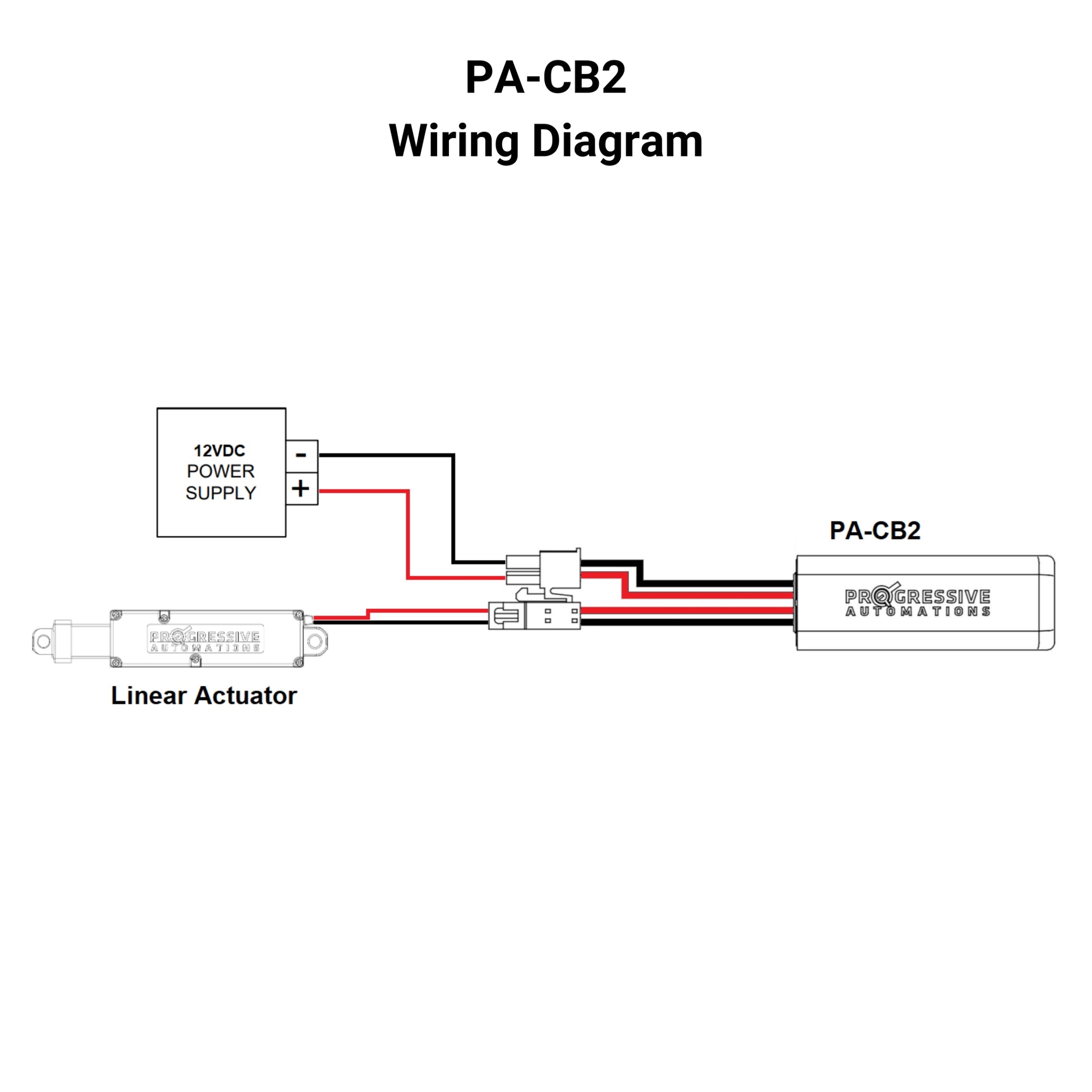

The PA-CB2 is a plug-and-play actuator control box with a 2-pin Molex SL Plug on one end that plugs directly to the 2-pin Molex SL Receptacle of the PA-MC1 for micro actuator compatibility.

After an idle timeout, the low power actuator controller enters power-saving mode with a 2.3mA standby current draw to maximize energy efficiency. Reactivate the control box with the single press of any button on the remote (90mS response time) to wake the unit instantly.

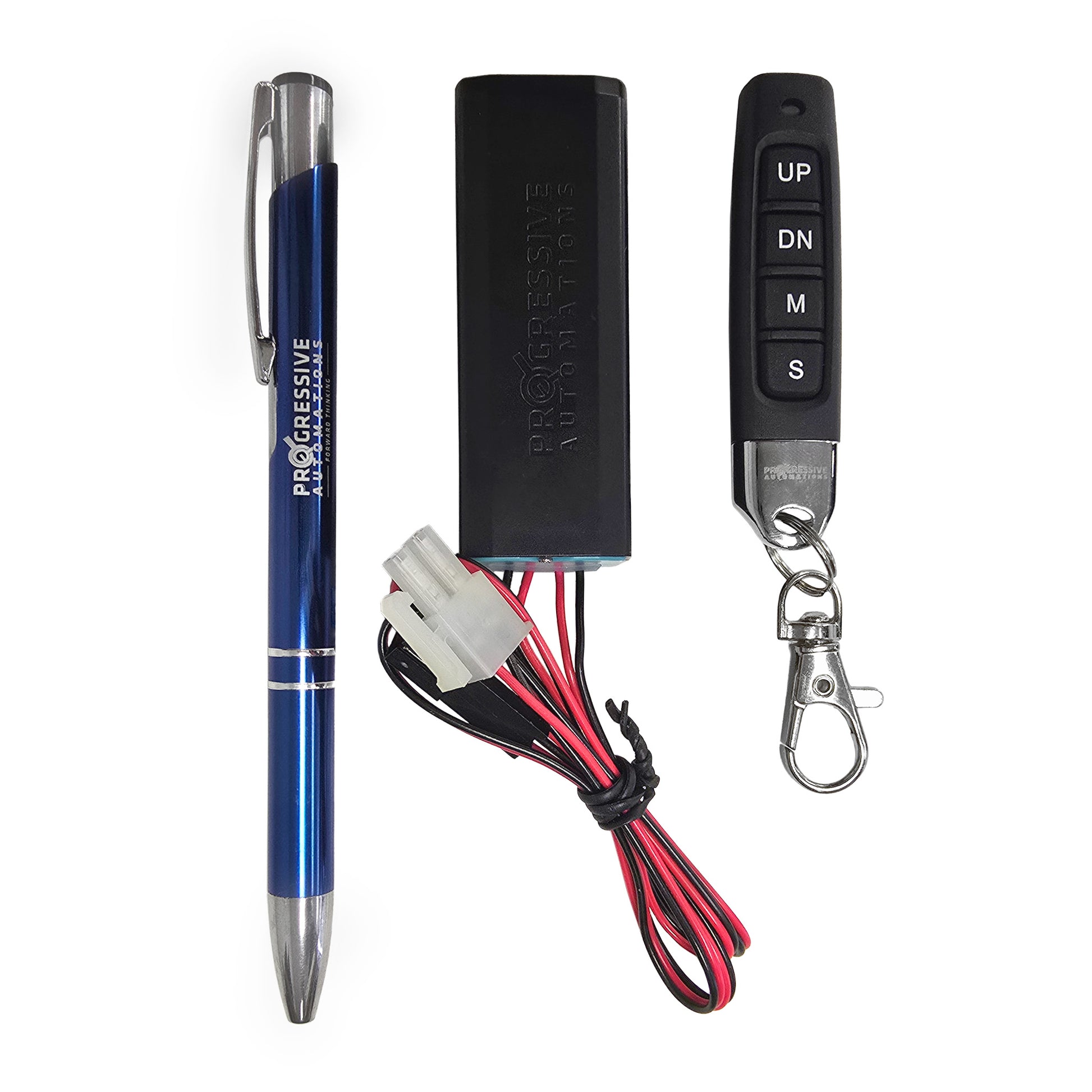

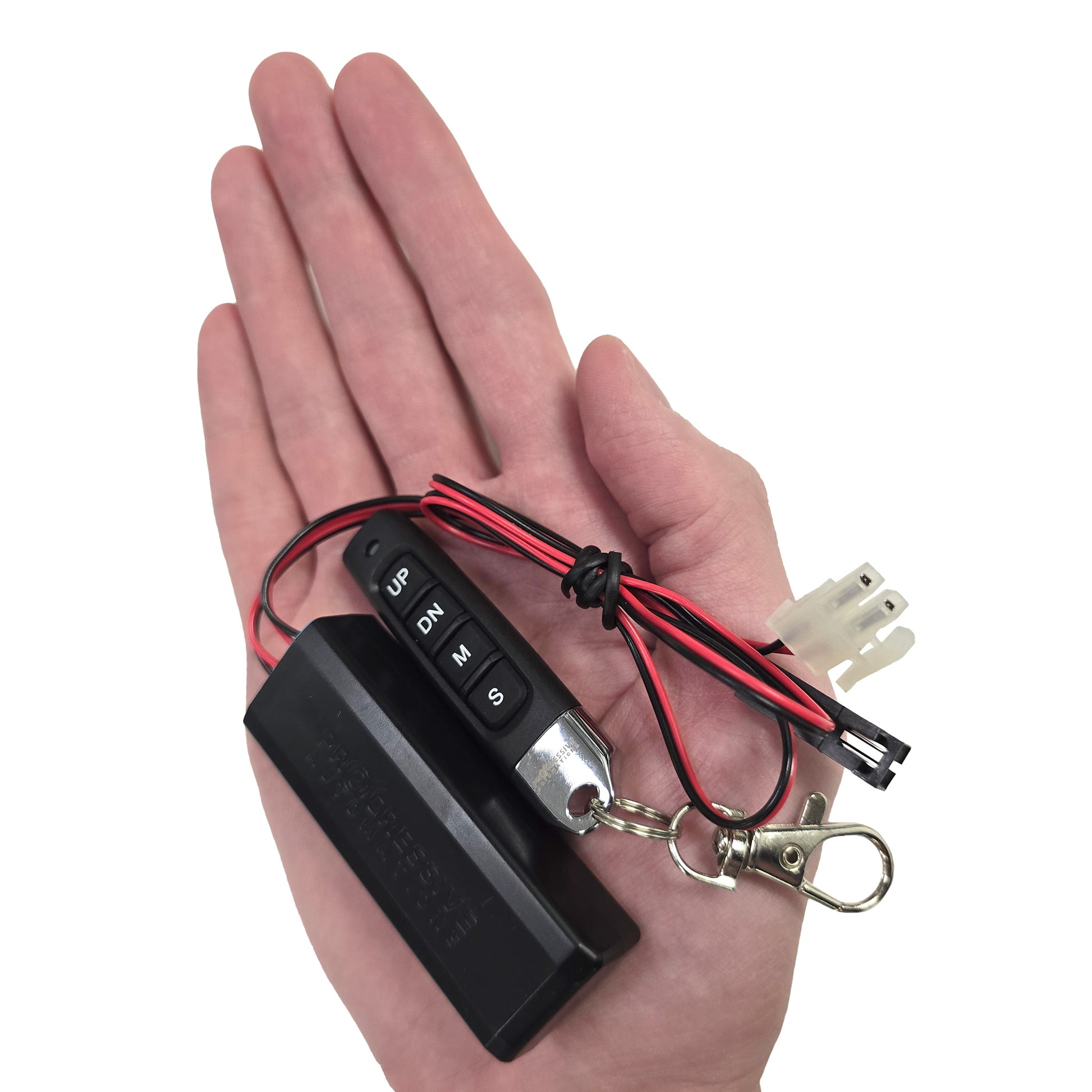

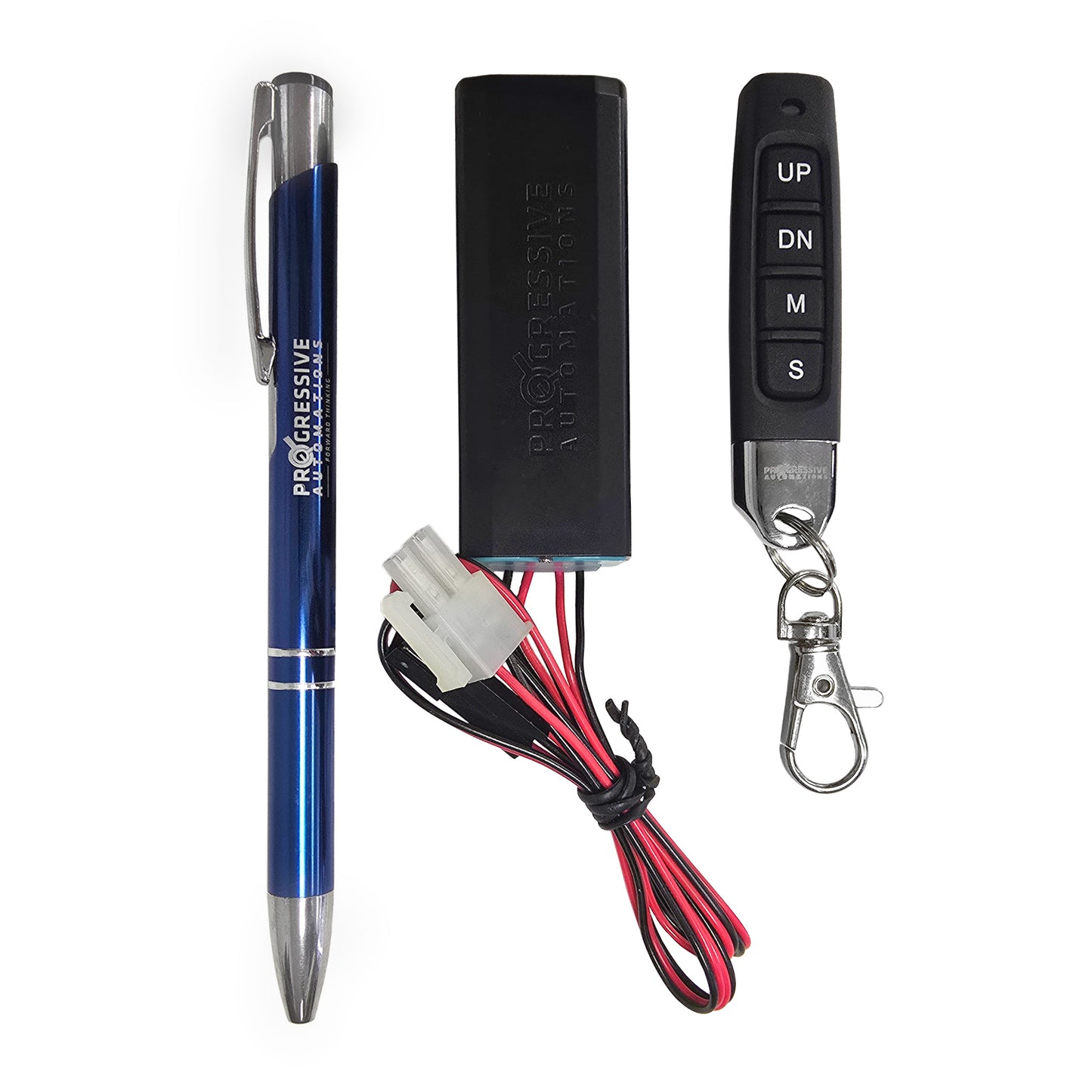

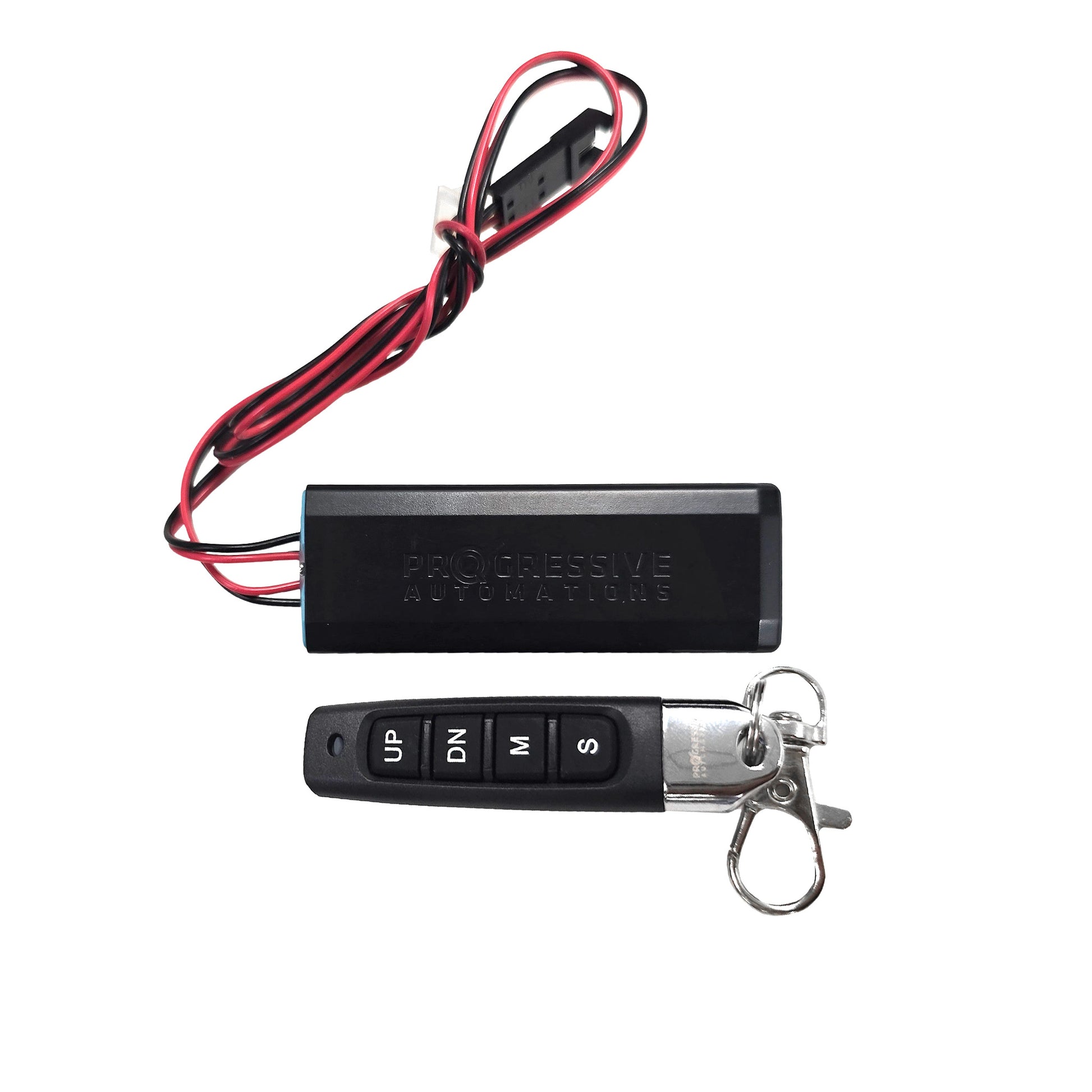

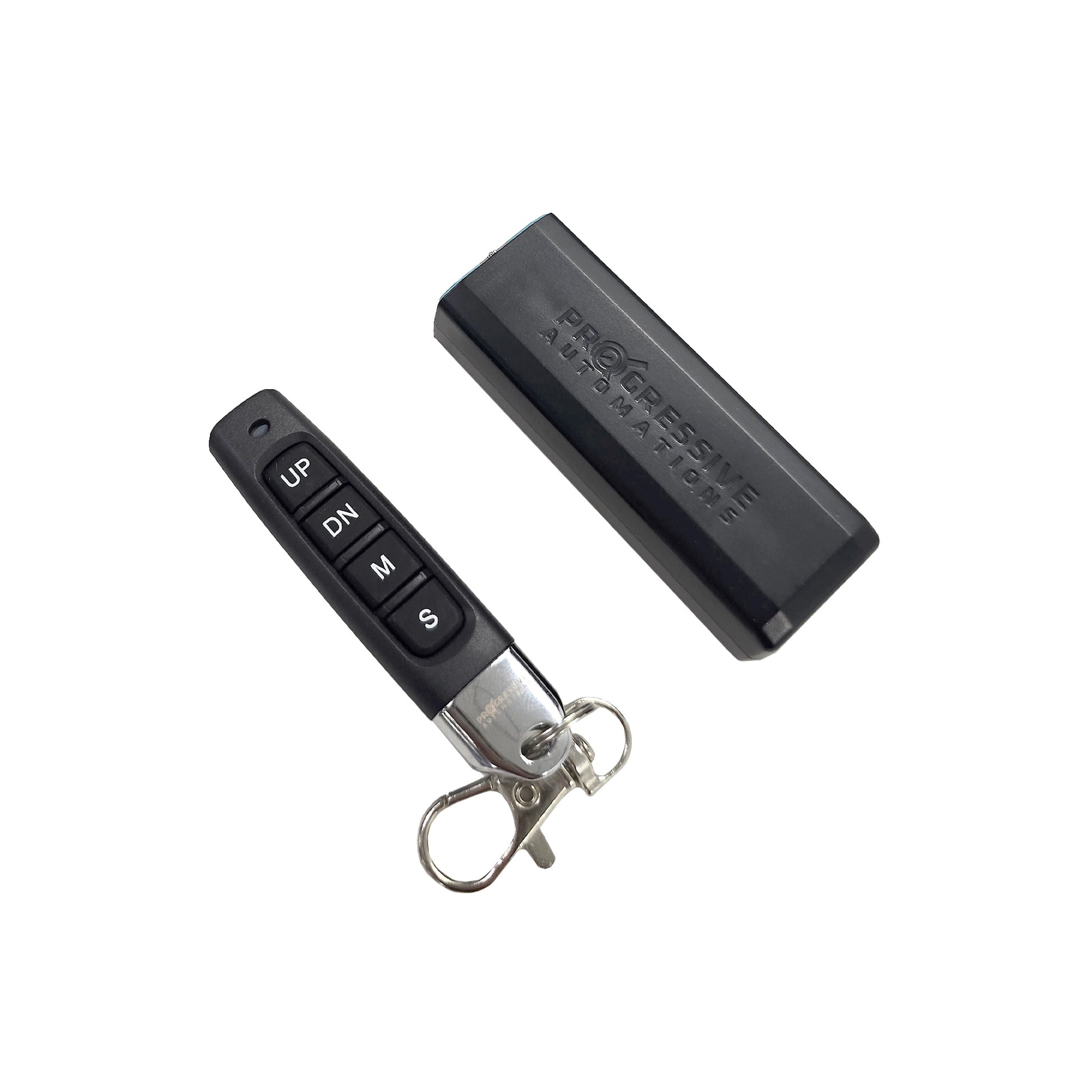

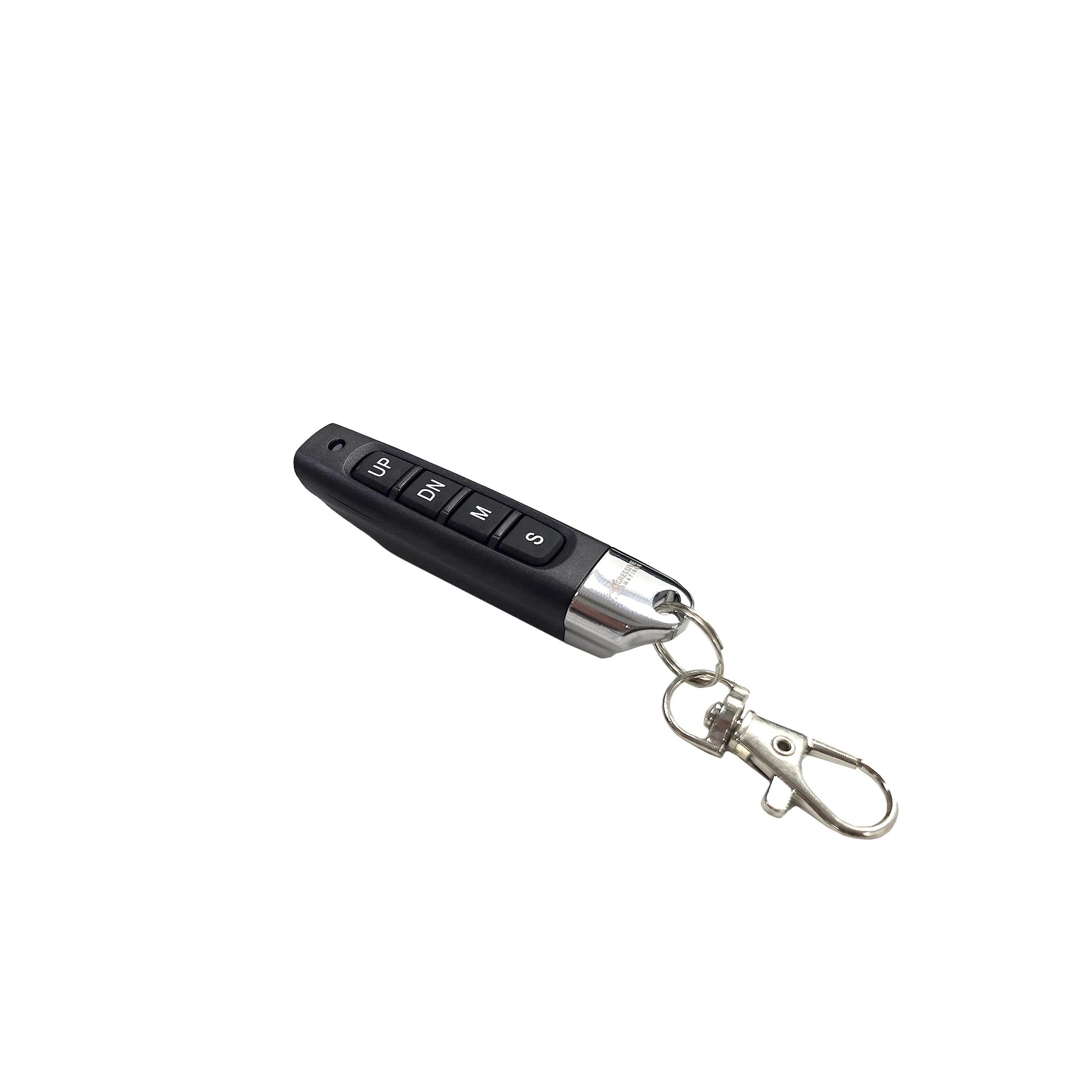

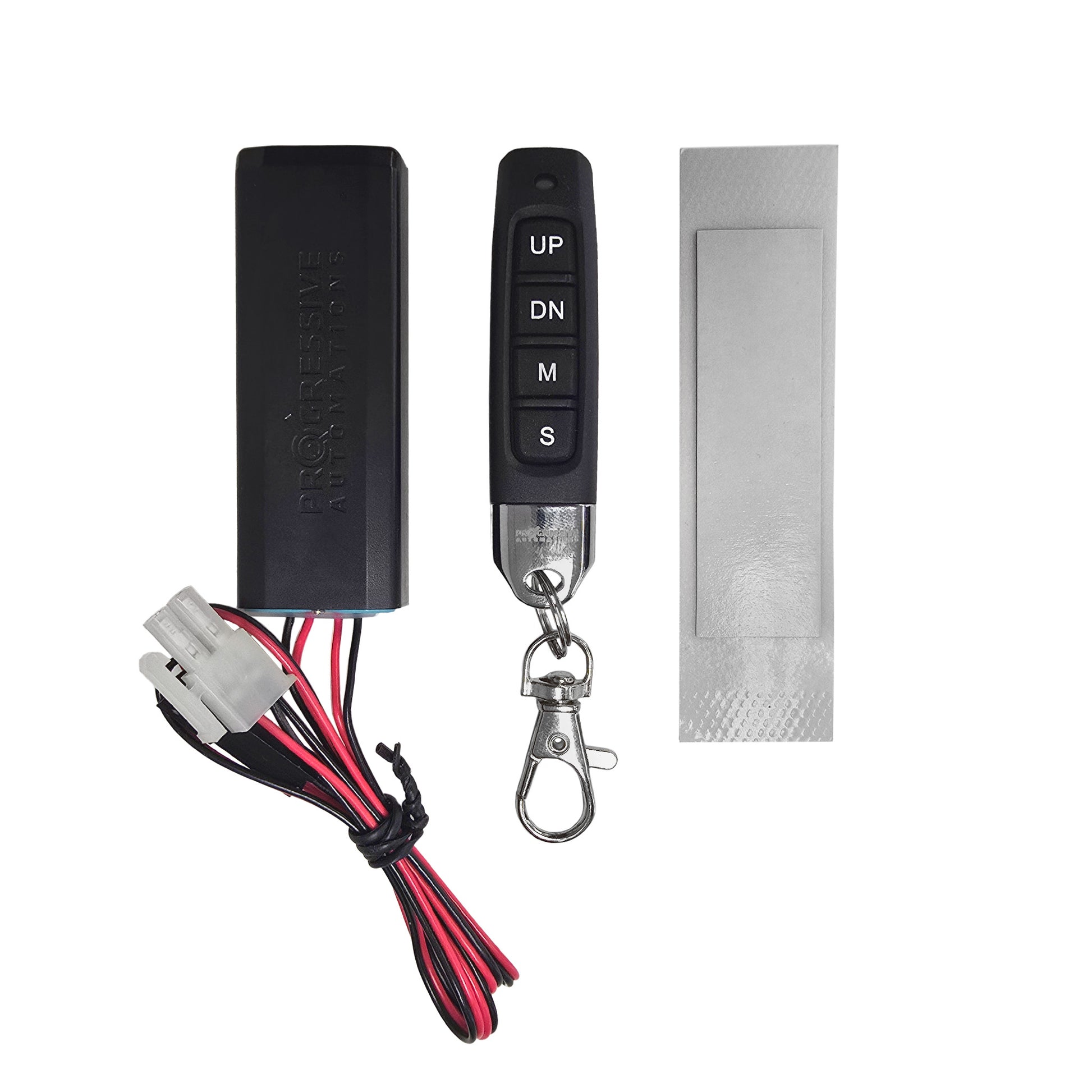

The PA-CB2 wireless remote supports access for extension, retraction, stop, and programming modes. The PA-CB2 can have up to 4 remotes paired to one control box.

For actuator mode selection and enabling smooth motion control, you must first enter programming mode, which allows the user to program the Control Box settings:

Programming Mode

1. Apply power to the Control Box.

2. Entering Programming Mode: Press and hold the M button for 7 seconds, then release the button.

3. Programming Mode: Pressing a button will initiate a specific programming mode, see Operating Instructions.

4. Exiting Programming Mode:

a. Pressing M button once will return to Normal Mode.

b. Normal Mode will resume after 15 seconds if no buttons are pressed while in Programming Mode.

Changing Between Momentary and Non-Momentary

1. Enter Programming Mode

2. Press the UP button once to switch between Momentary and Non-Momentary control.

3. Normal Mode automatically resumes.

Smooth Motion Control (OFF by default)

1. Enter Programming Mode

2. Press the S button once to toggle Smooth Motion ON or OFF.

3. Normal Mode automatically resumes after pressing the button.

The PA-CB2 fail-safe features include overload safety protection and input reverse voltage protection that shuts off operation in case of input power miswiring and overload conditions.
