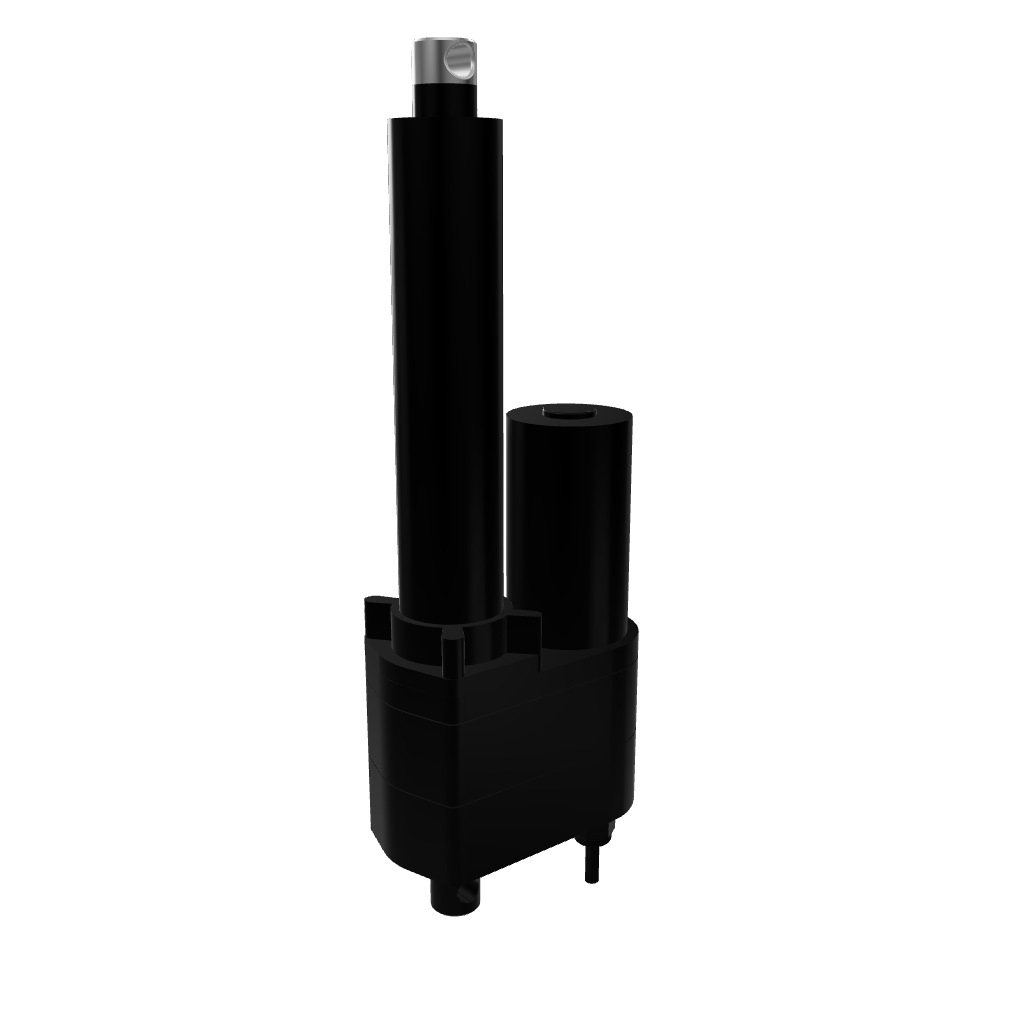

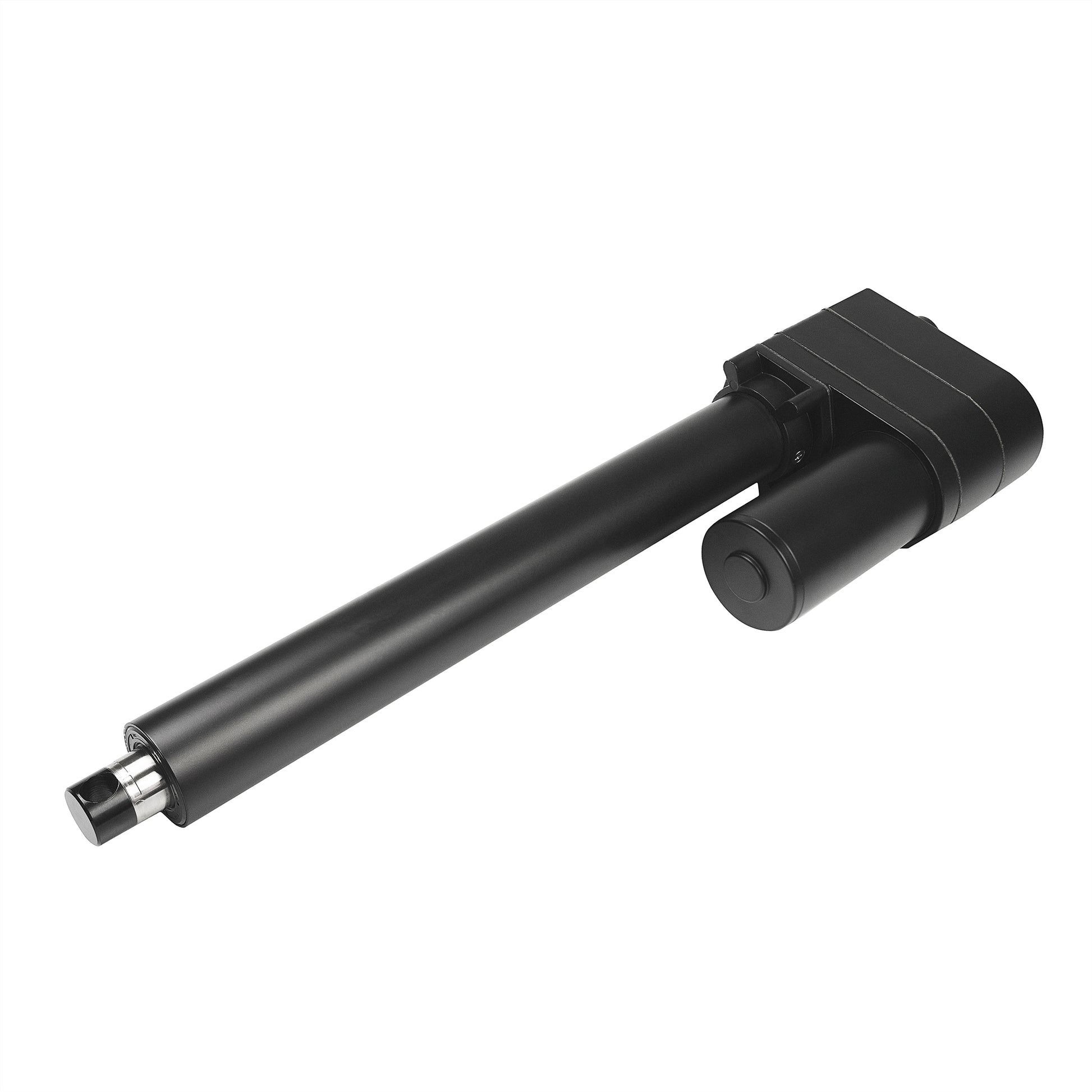

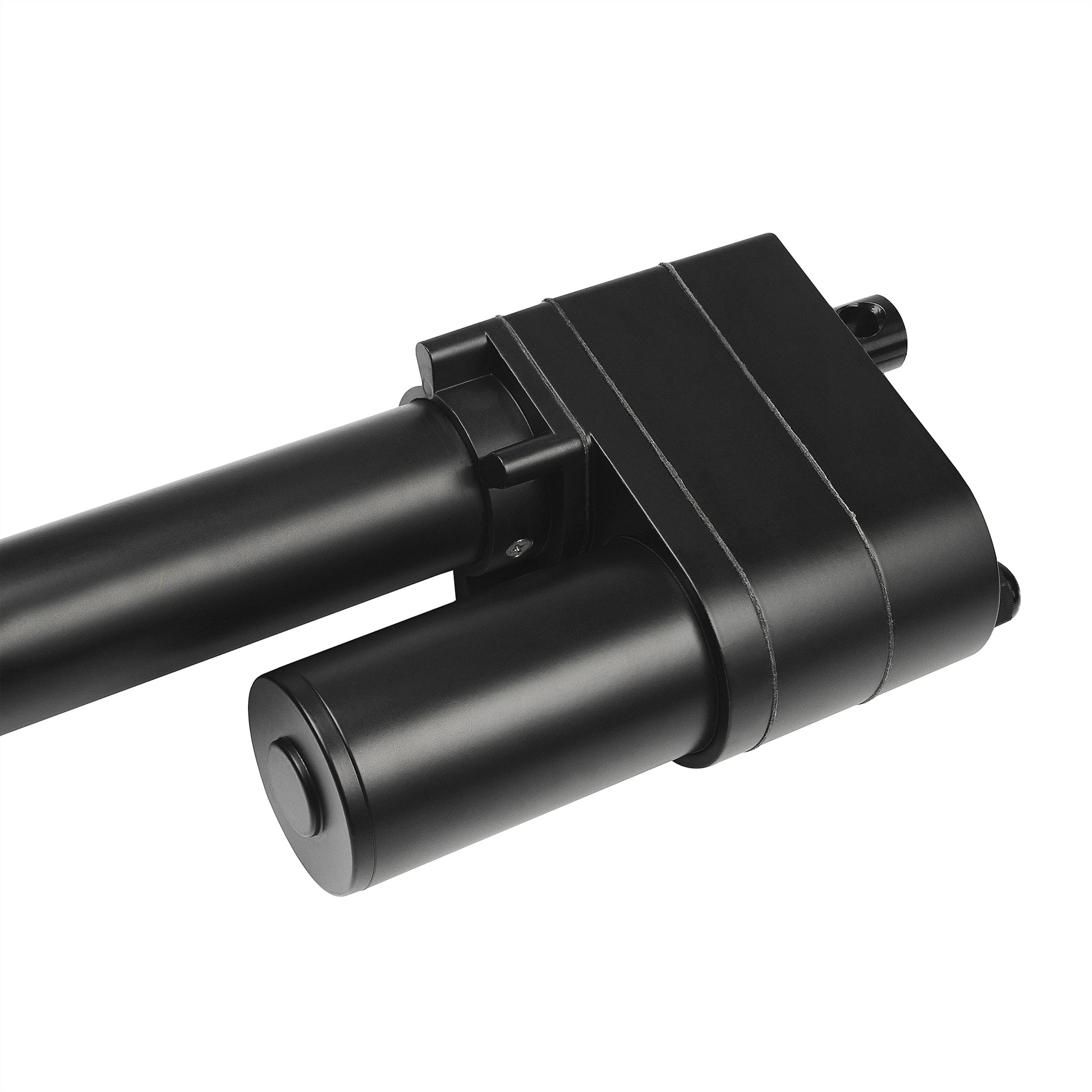

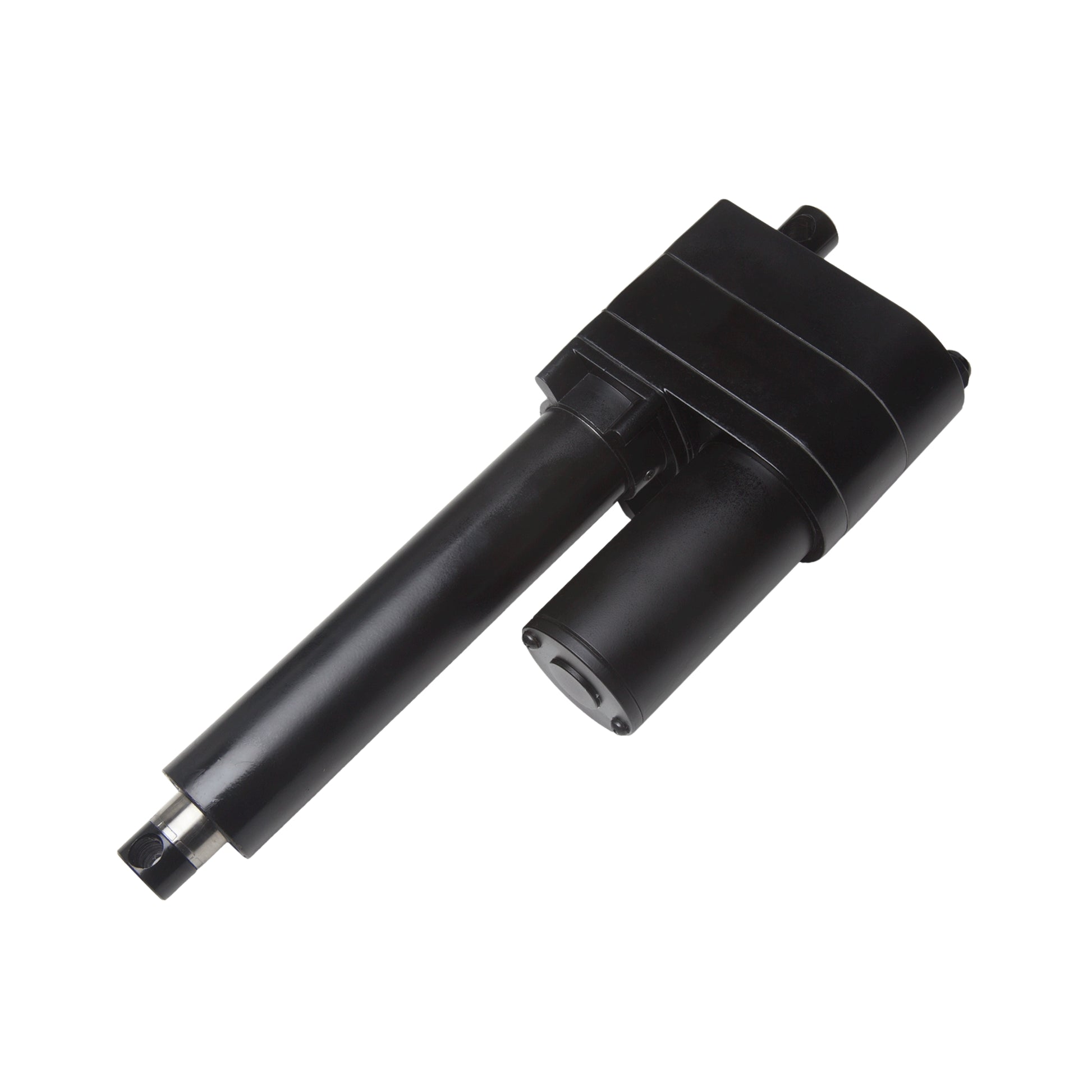

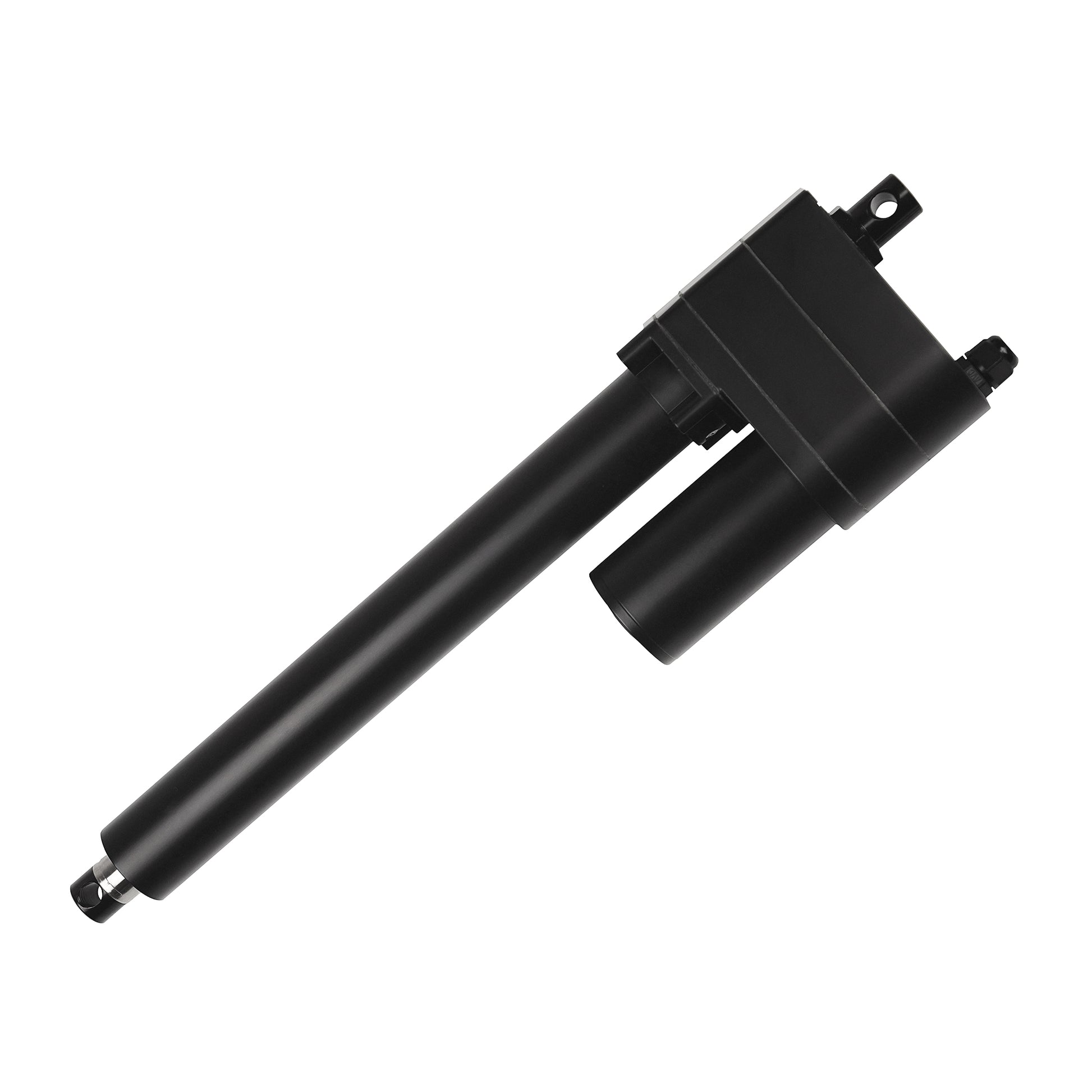

Heavy Duty Linear Actuator

Heavy Duty Linear Actuator

MODEL: PA-17

From:
$305.00
From:
$305.00
Specs
PA-17 PRODUCT INFO

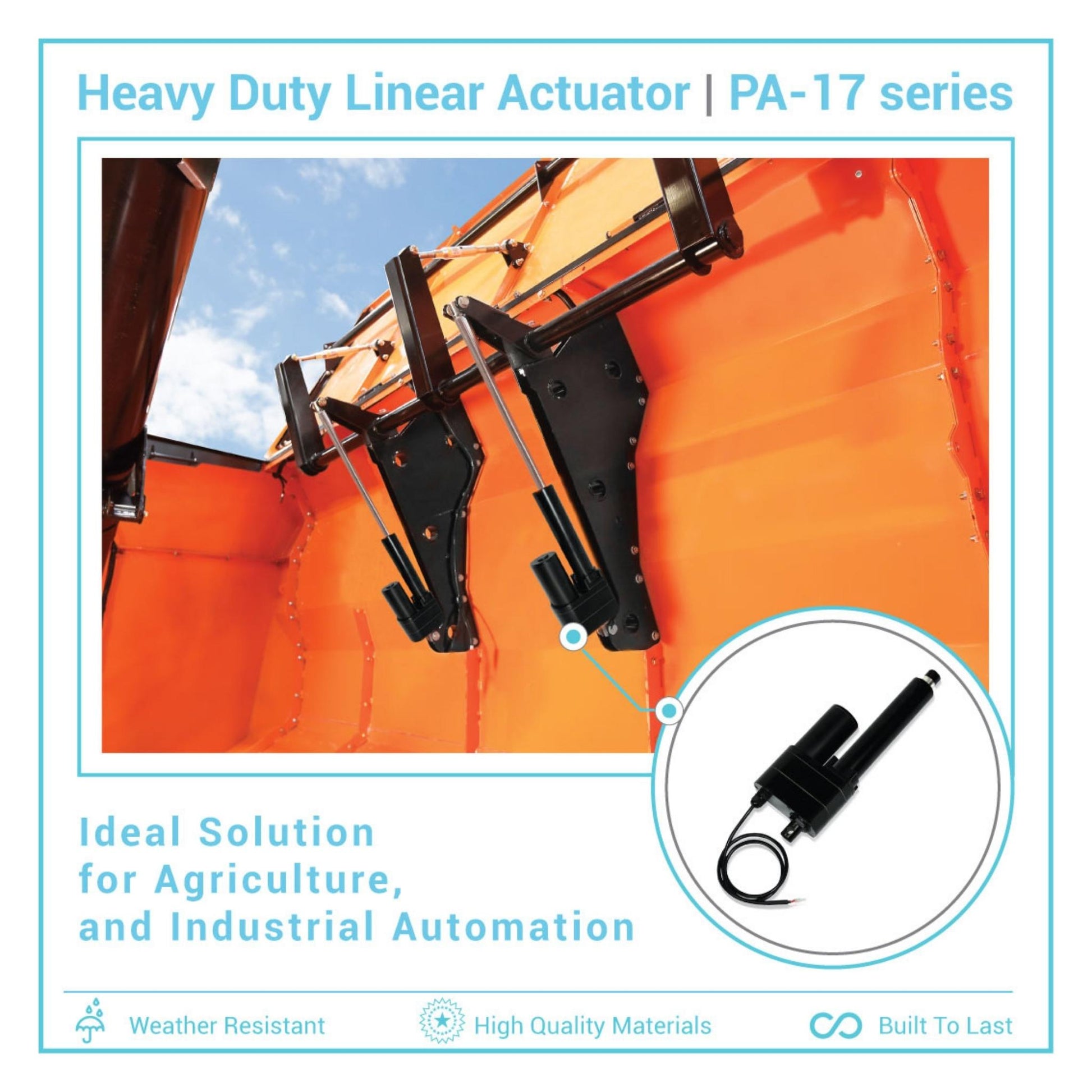

When you need high-force, power and performance combined with a reliable automation solution there is only one unit for you, the PA-17 heavy duty linear actuator. These heavy duty units are perfect for jobs that require large amounts of force and can be found anywhere where powerful linear motion is needed such as boat automation, industrial and manufacturing settings as well as construction equipment. The PA-17 is available in forces of 850 lbs and 2,000 lbs with speeds of 0.66”/sec (850 lbs) and 0.33”/sec (2,000 lbs). Stroke sizes range from 1-24”.

Every unit you see in our drop down menu is available and ready to ship out today.

CONTROLS & BRACKETS:

The PA-17 heavy duty electric actuator is compatible with a variety of our control boxes. With each control box comes a wide range of control options useful for whatever project you have in mind, as well as a very simple wiring process.

The BRK-17 mounting brackets have been specifically crafted for the PA-17 industrial actuator. They have been tested to withstand the types of heavy duty force that our heavy duty actuators can exert and provide a full 180 degrees of rotation. The BRK-17 comes with all the required screws and is easily installed in any project.

CUSTOM INDUSTRIAL ACTUATORS:

Our custom actuator service is able to create a unit specifically fitted for your needs based on the Custom Options available. All you have to do is give us a call and one of our experienced staff engineers will guide you through the process and your custom actuator will be ready in as little as 10-20 business days.

PA-17 SPECIFICATIONS

  • Input Voltage
    12V DC
  • Stroke
    1-24 inches
  • Force
    850 lbs and 2000 lbs
  • Speed
    0.33"/sec (2000 lbs); 0.66"/sec (850 lbs)
  • Protection Class
    IP65
  • Operational Temperature
    -25C~+65C
  • Noise
    db<45(A)
  • Duty Cycle
    25%
  • Limit Switch
    Built In, Adjustable
  • Current (full load)
    20A
  • Mounting Holes
    0.50"
  • Motor Type
    Brushed DC Motor
  • Screw Type
    ACME
  • Housing Type
    Stainless Steel

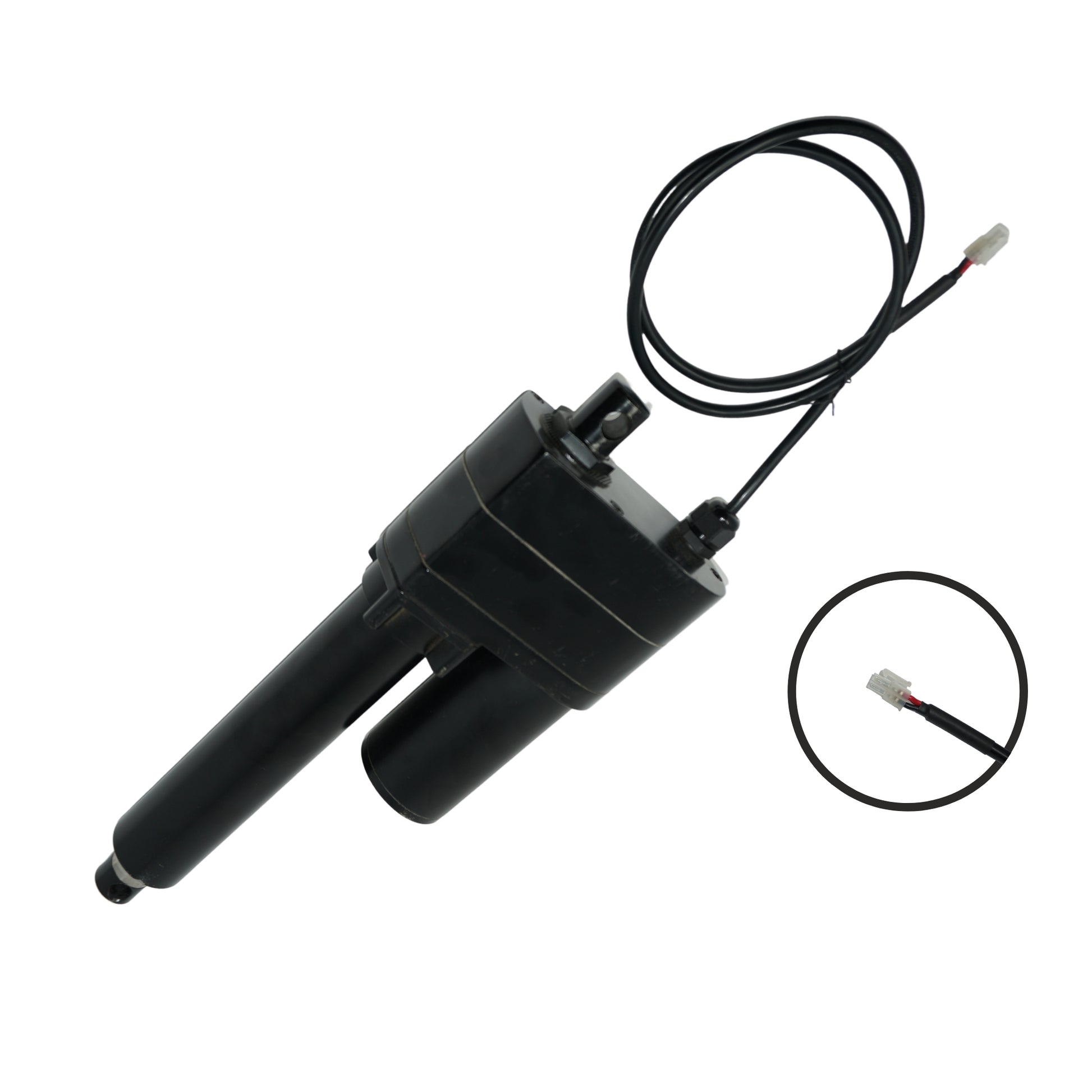

  • Wire Length
    40"
  • Fully Retracted
    9.8" + stroke
  • Fully Extended
    9.8" + stroke + stroke
  • Certifications
    CE
  • Unit Weight
    0 lbs
  • Warranty
    18 Months
Pdf

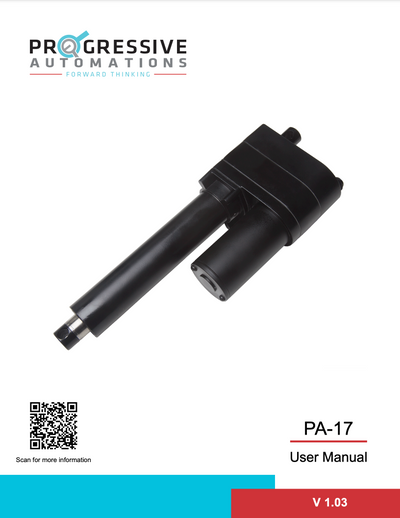

Product PDF

PA-17 PRODUCT INFO
3D Models
Video

Videos

Custom Options

Custom Options

  • · Customize force to 450 lbs (1.5"/sec) or 1600 lbs (0.39"/sec)
  • · Customize voltage to 24V, 36V or 48V
  • · Customize stroke length from 1-40"
  • · Add Potentiometer or Hall Effect Sensor
  • · Customize actuator mounting holes
  • · Customize actuator dimensions
  • · Customize the wired connector

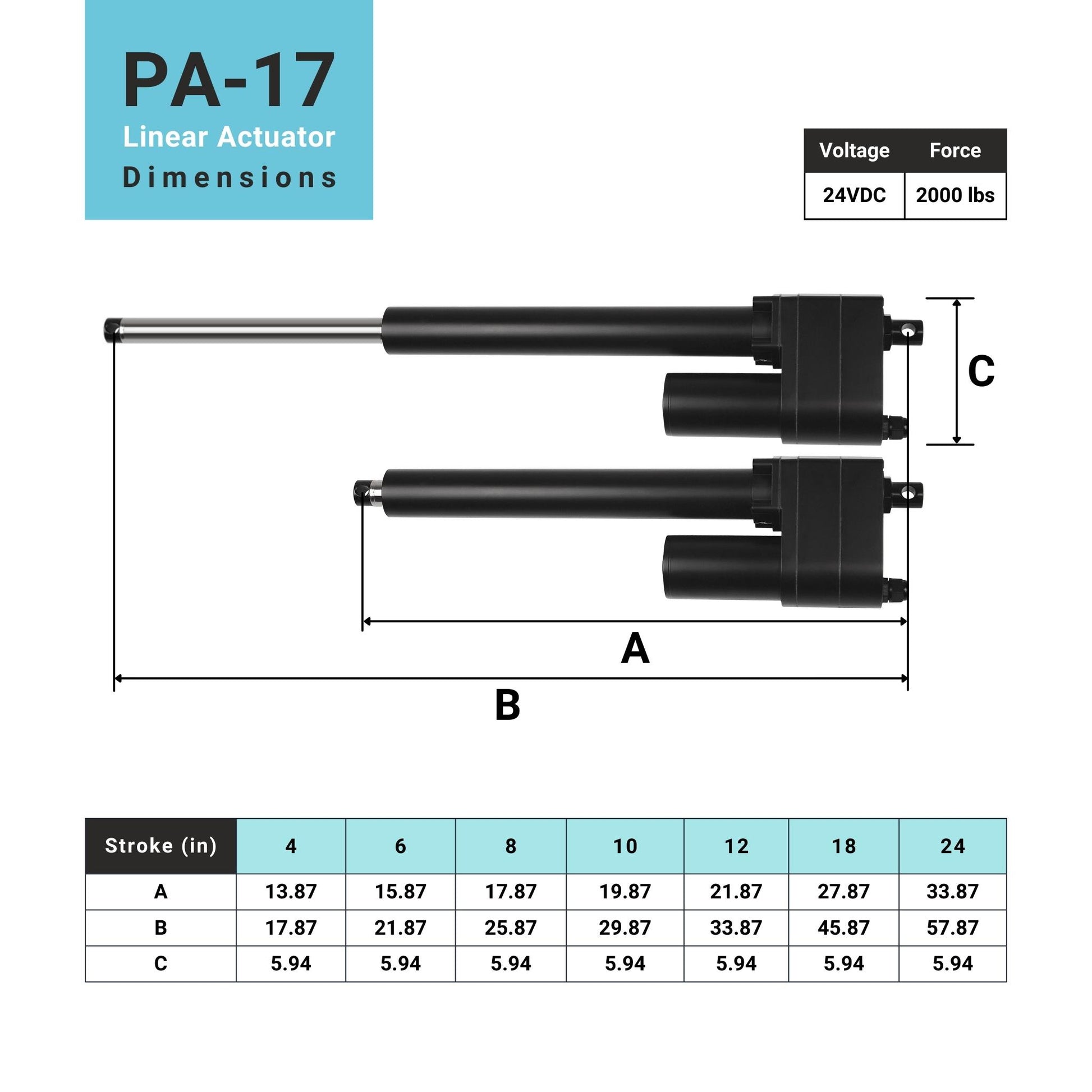

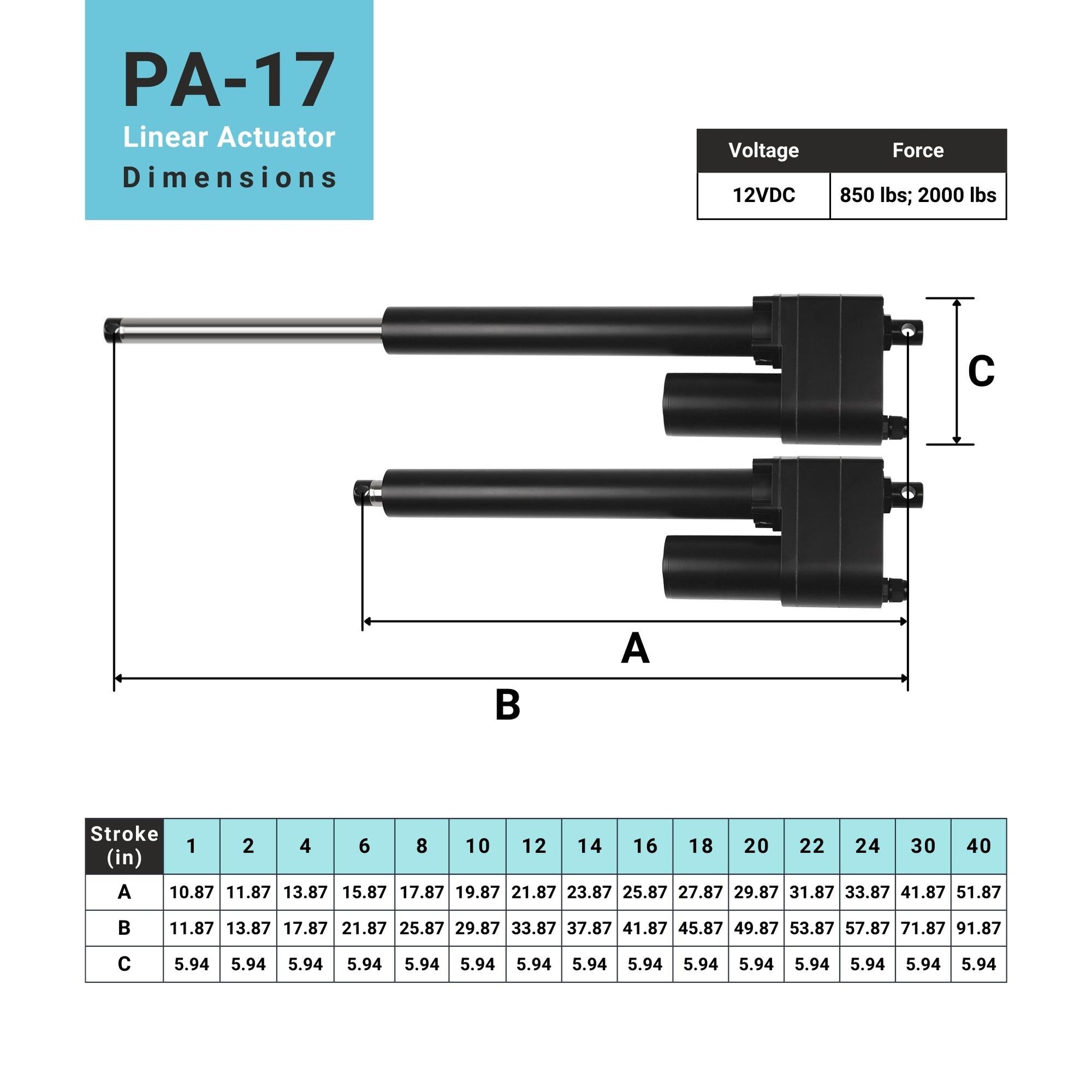

Dimensional Drawing

Dimensional Drawing

Heavy Duty Linear Actuator
Warranty

Warranty

We guarantee that all products you receive will be brand new, and have been thoroughly tested for defect and performance before being shipped to you. At Progressive Automations Inc we put our products to the test, stressing their performance in heat, cold, liquid, and under heavy loads and high duty cycles. The specifications listed on our products aren't just approximations, they're backed up by hours and days of testing. We're so confident in our actuators quality, performance, and endurance, that we proudly offer the industry leading 18 month warranty.

All products produced and sold by progressiveautomations.com are covered by our comprehensive 18 month warranty against defect or flaw. If we sell you a product, and it stops working before 18 month pass, we will replace it free of charge. However, the product has to only have been used within its rated parameters and environment conditions.
