Bracket Kit for LG-02

Bracket Kit for LG-02

SKU: LG-02-BRK

In stock
Se envía en 24 horas
Volume Discount
1-6 units $0.00 USD
7-9 units $0.00 USD
10–19 units $0.00 USD
20–49 units $0.00 USD
Precio habitual $25.00 USD
Precio habitual Precio de oferta $25.00 USD
Oferta Agotado
Color - White
  • Linear Actuator Calculator
  • Get Free Actuator Guide
Ver todos los detalles
Description
LG-02-BRK Specifications

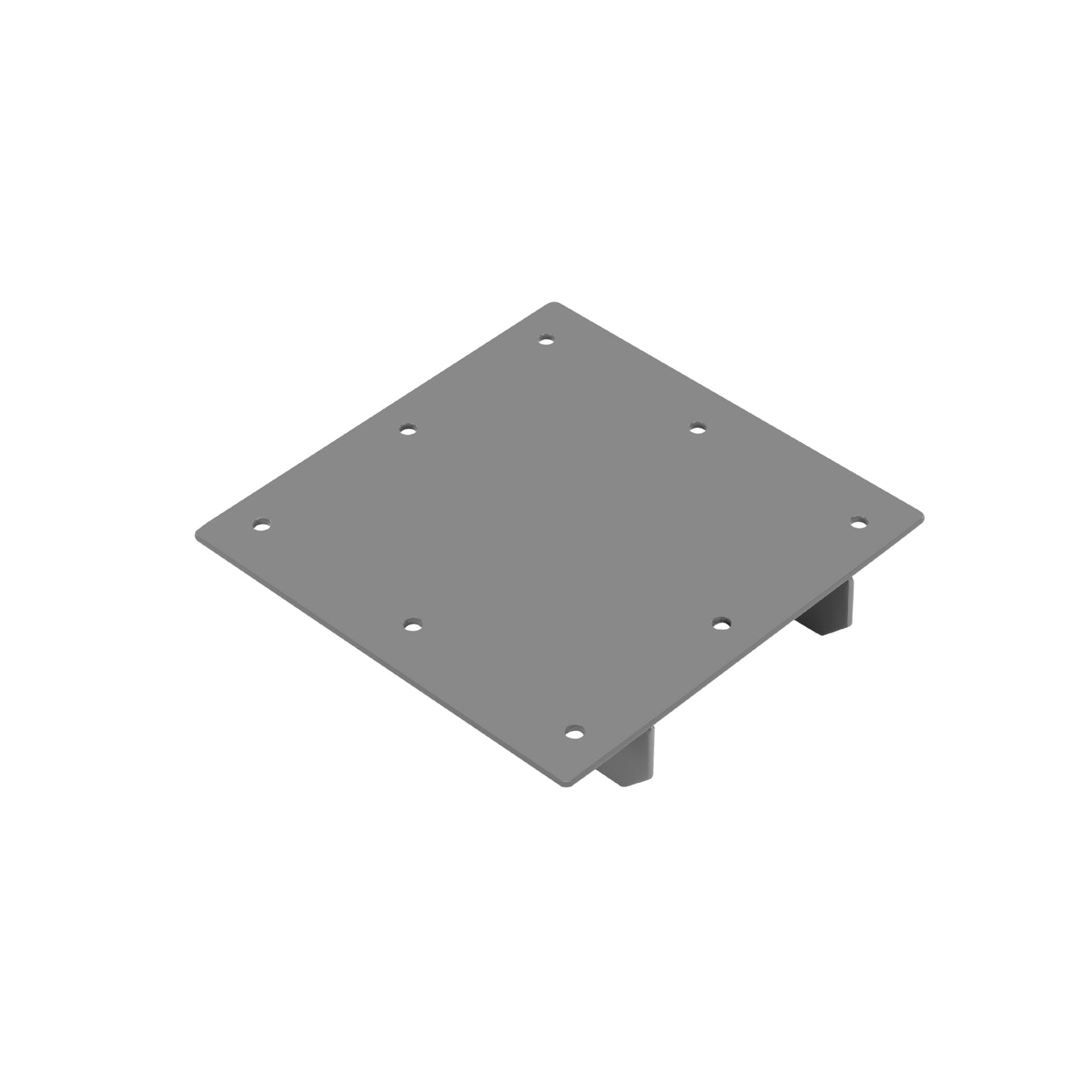

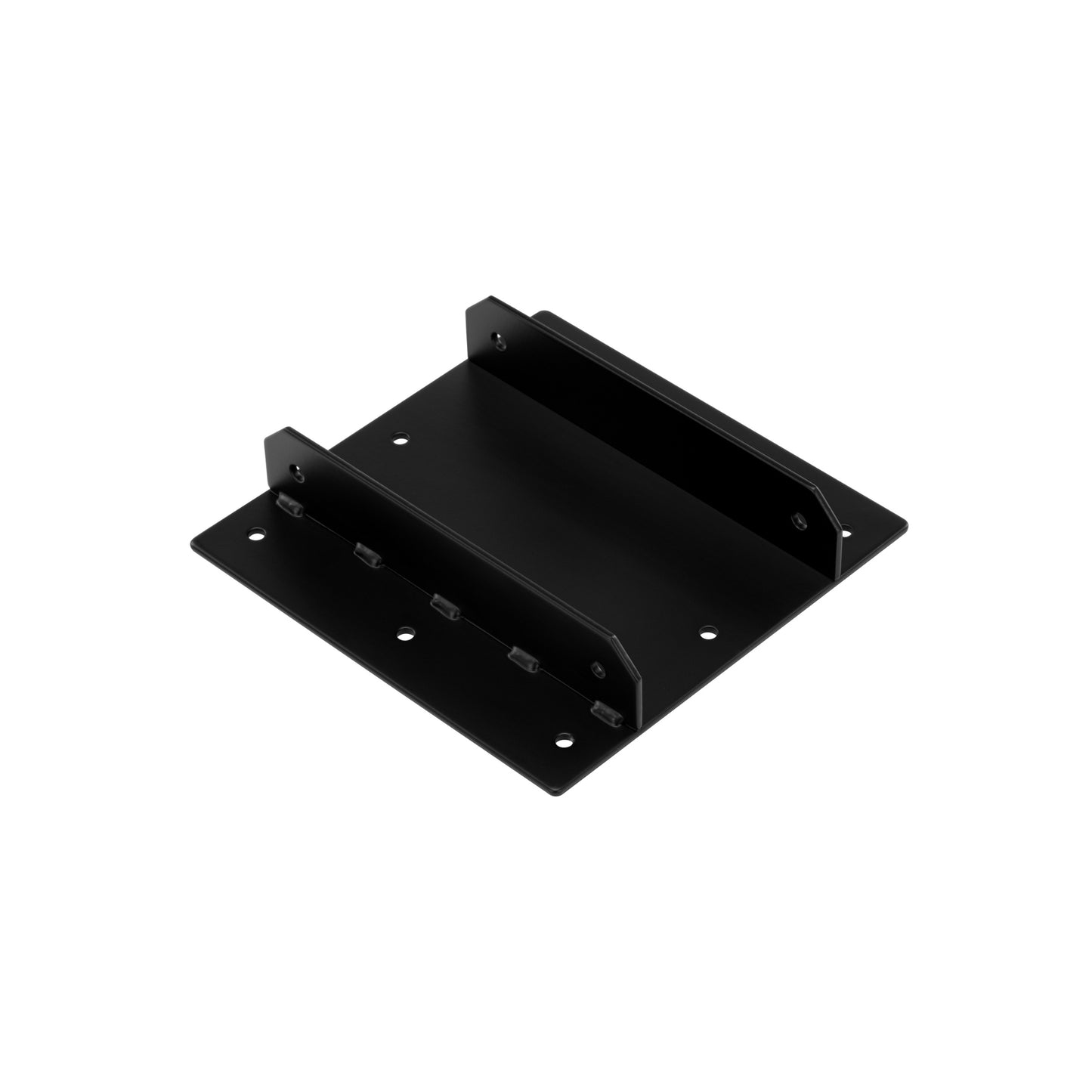

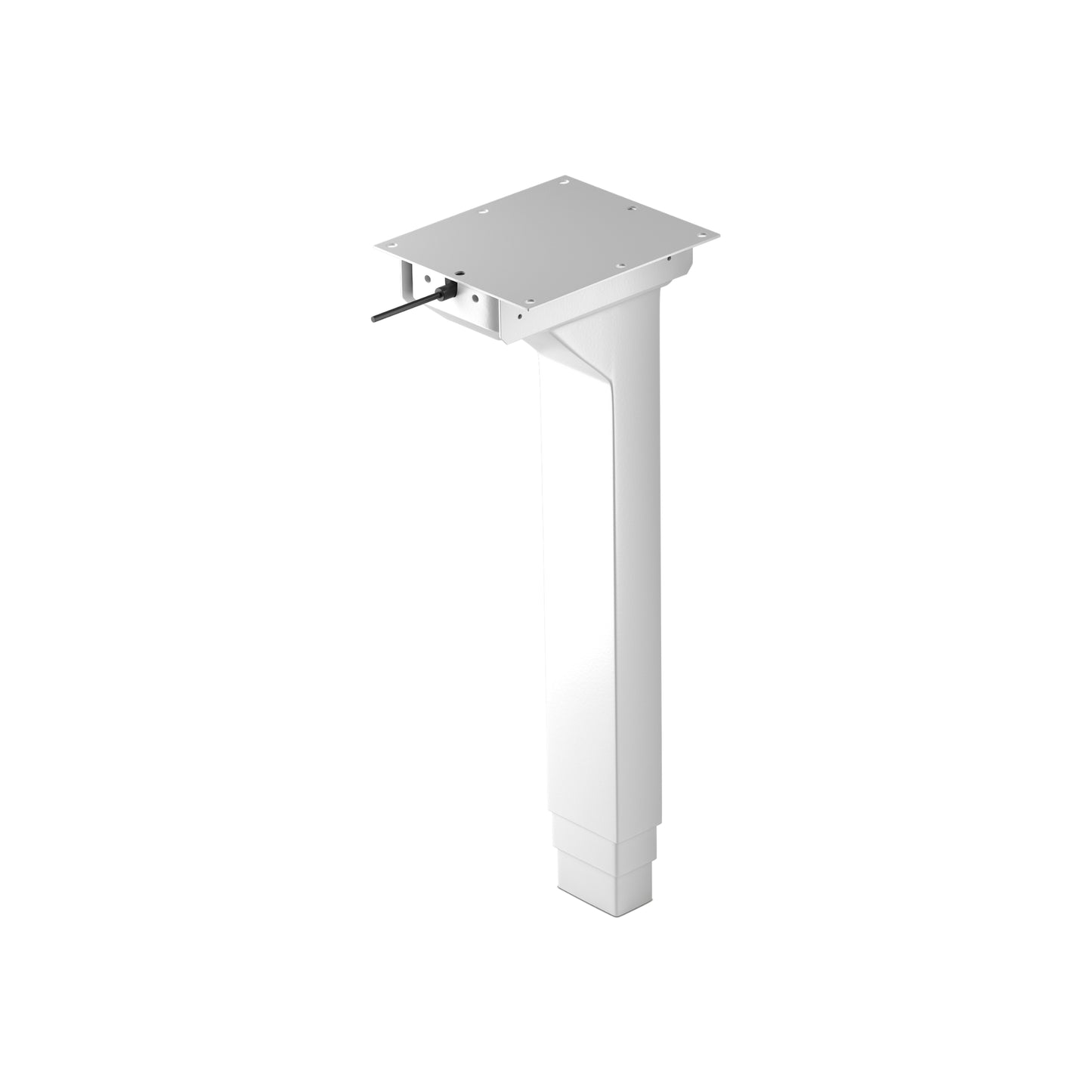

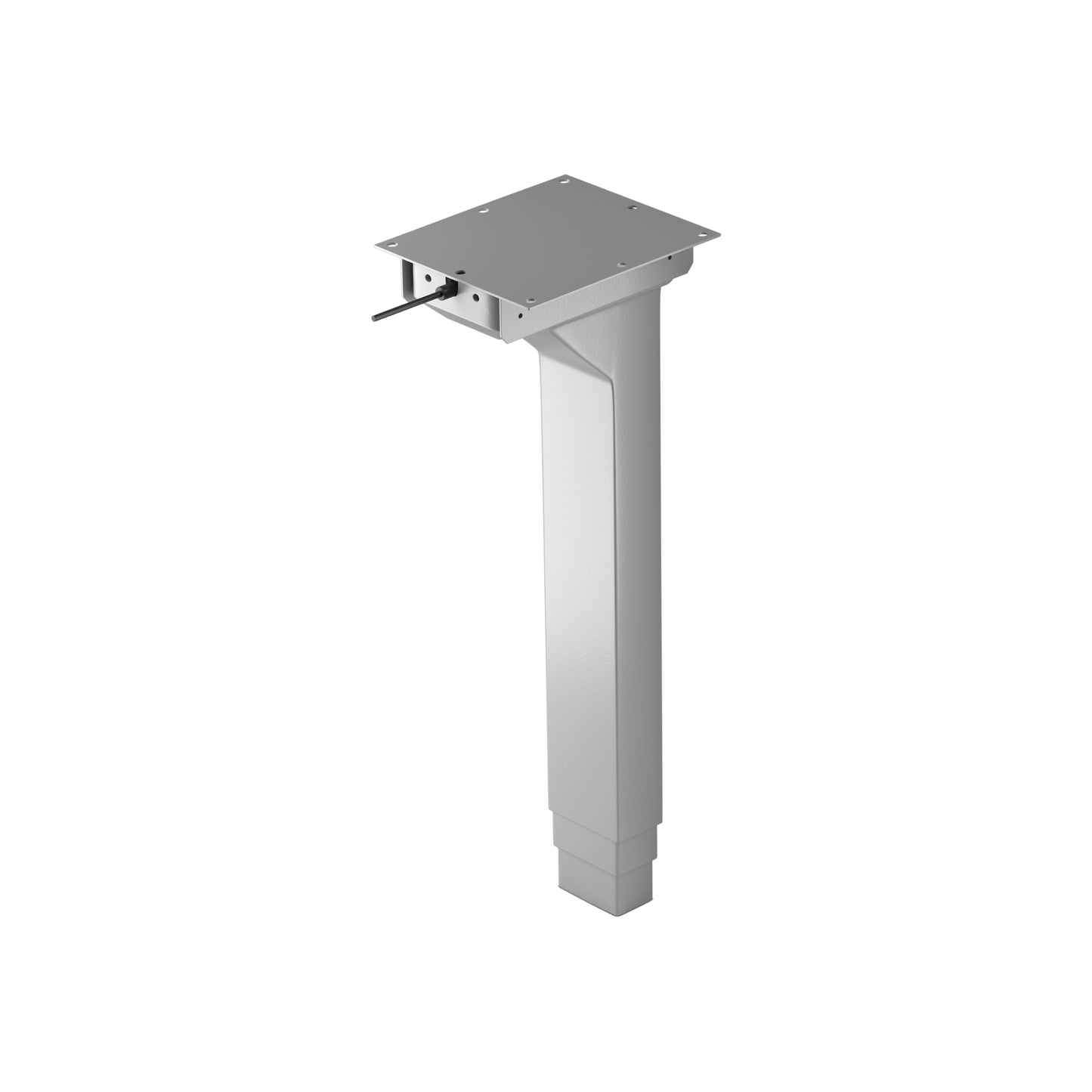

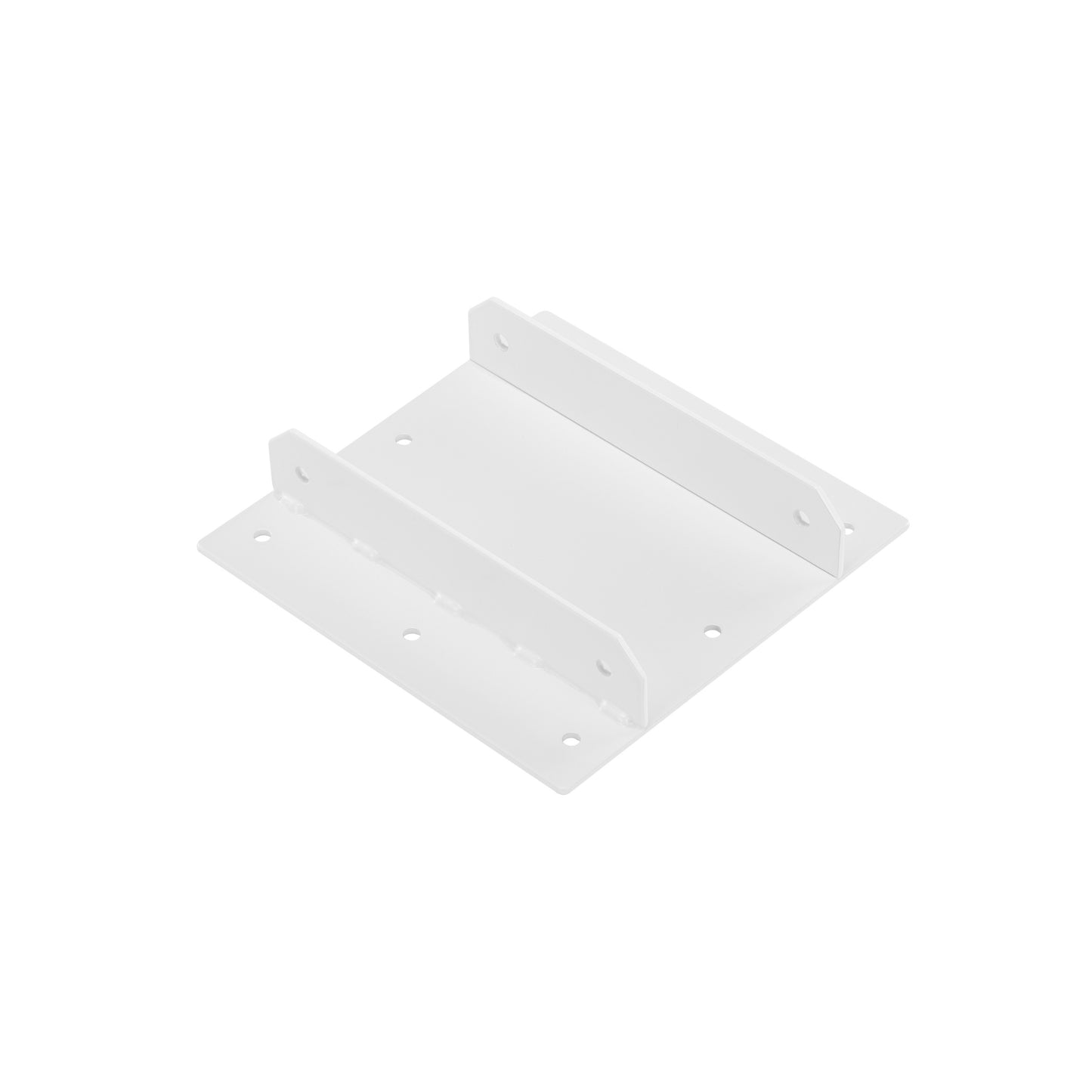

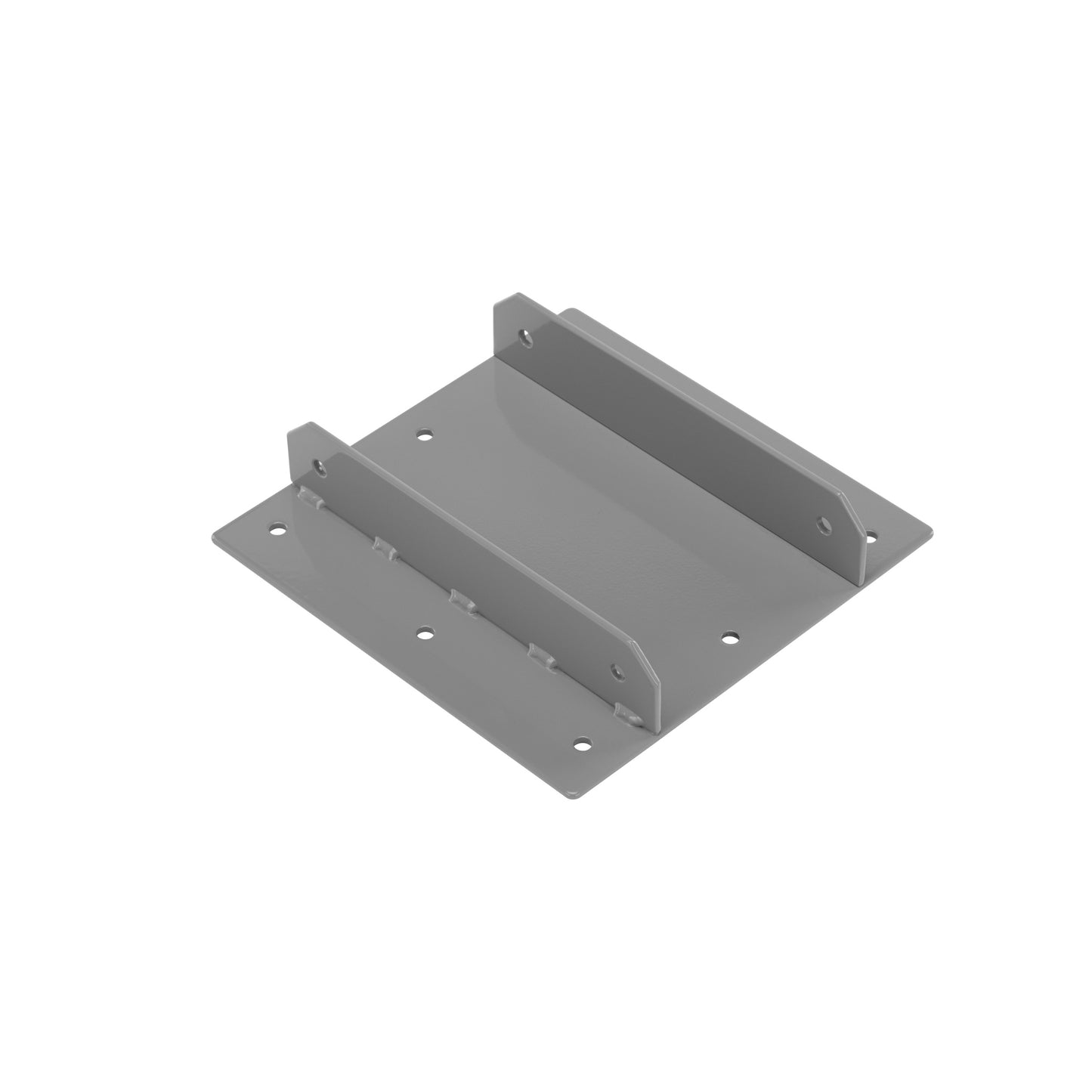

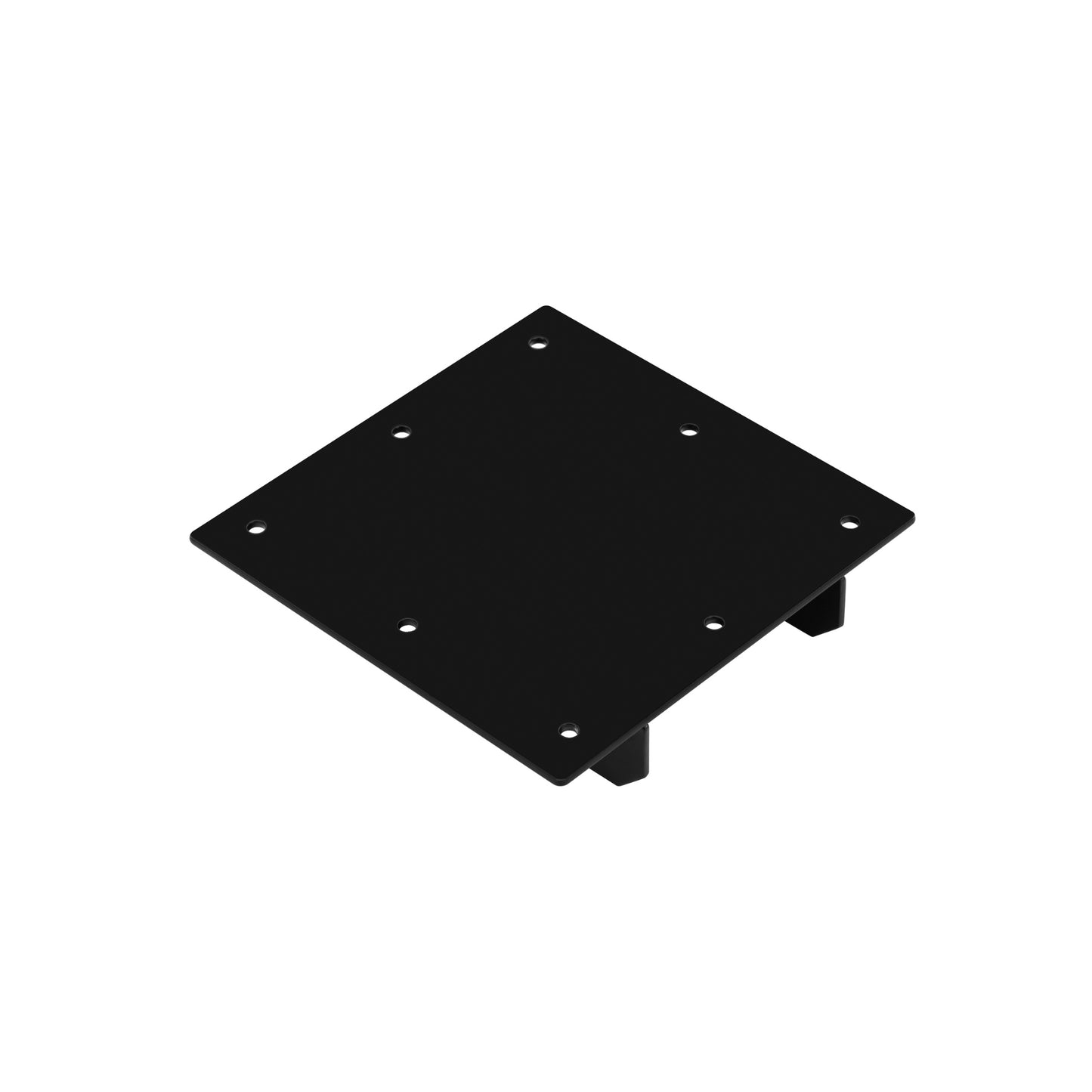

Our LG-02-BRK mounting brackets are designed for the LG-02 lifting column legs. The self tapping screws offer a fast and convenient means of attaching the top mounting bracket to wooden tabletops.

The machine screws secure the top mounting bracket and bottom foot standoff to the LG-02 lifting column legs. Depending on your color preferences, the powder coated finish can be chosen in the black, white, or gray color. Backed by 60 months of warranty, we guarantee high levels of durability in our heavy duty mounting brackets constructed out of steel to serve you well over the years!

Overview
LG-02-BRK Specifications

Our LG-02-BRK mounting brackets are designed for the LG-02 lifting column legs. The self tapping screws offer a fast and convenient means of attaching the top mounting bracket to wooden tabletops.

The machine screws secure the top mounting bracket and bottom foot standoff to the LG-02 lifting column legs. Depending on your color preferences, the powder coated finish can be chosen in the black, white, or gray color. Backed by 60 months of warranty, we guarantee high levels of durability in our heavy duty mounting brackets constructed out of steel to serve you well over the years!

Compatibility Chart

Product Specifications
Material Type:
Steel
Actuator Model:
LG-02
Kit Includes:

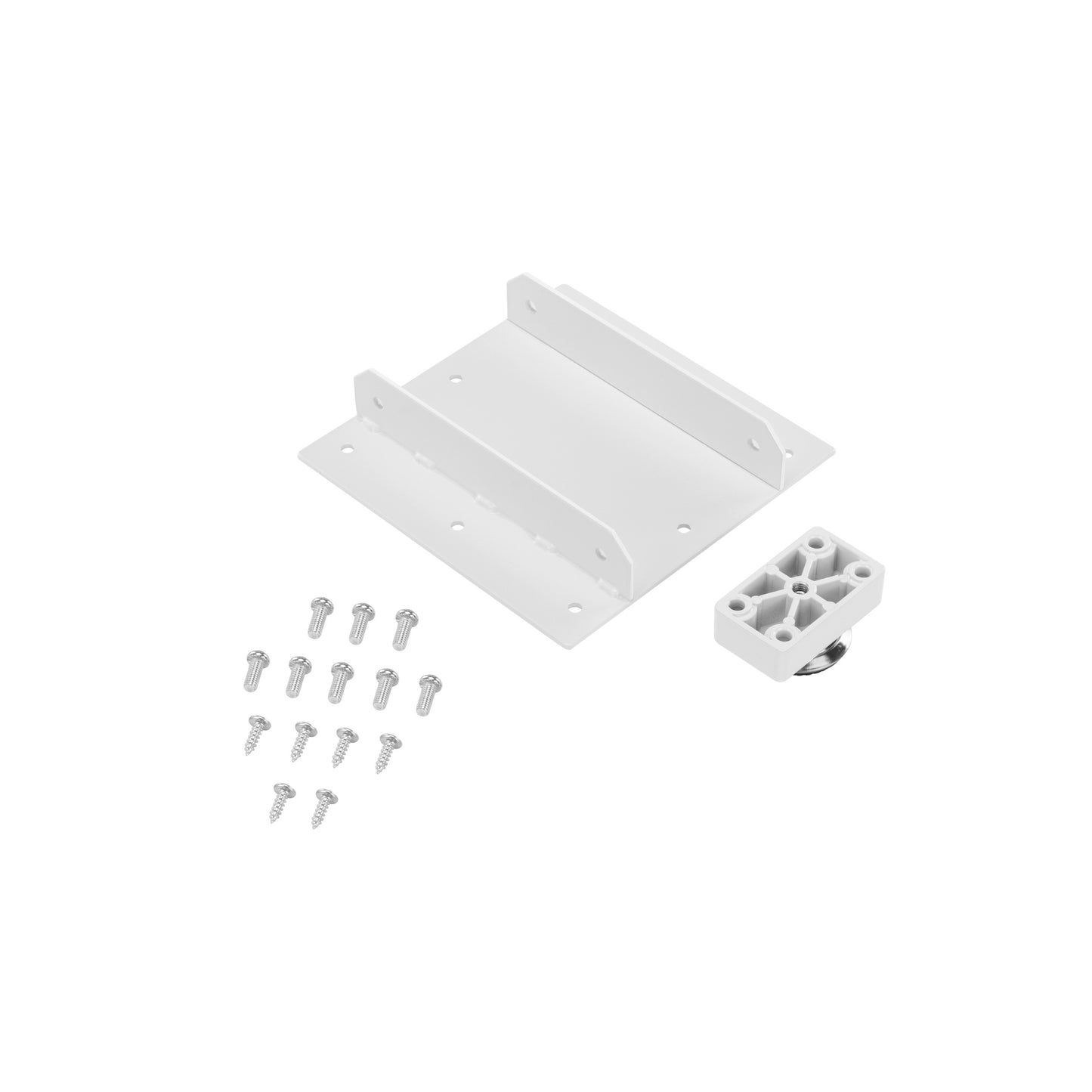

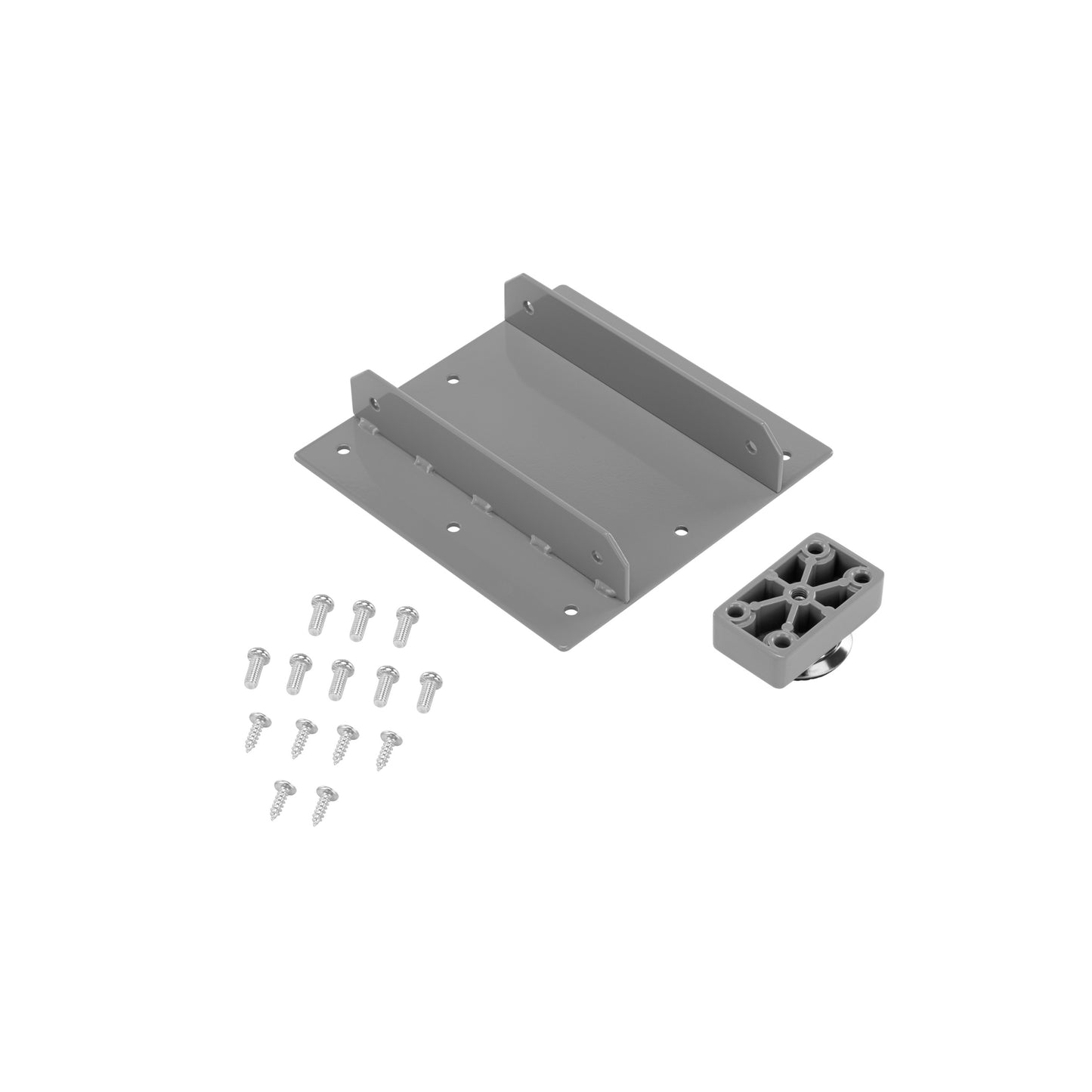

Top Mounting Bracket, Bottom Foot Standoff, Preinstalled Glide, 6x ST 4.8x16 Self Drilling Screw, 8x M6x14 Machine Screw
Unit Weight:
3.0 lbs
60 Months
Brackets Compatibility
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Read More
Video & Articles
Videos
Support
FAQ
How Can I Determine Which Progressive Automations Linear Actuator is Best Suited for My Application?

Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.

What Is Duty Cycle and How Is It Calculated?

Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)

For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.

What Does Stroke Mean? How Am I Supposed to Know Which Size to Choose?

Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.

How Do I Know Which Force Rating Is Right for My Application?

We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator

Can I Synchronize My Linear Actuators?

Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.

Controlling Multiple Linear Actuators at the Same Time

How To Utilize FLTCON-2 & FLTCON-4 Control Boxes?

What Are the Control Box Options For My Actuator?

The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.

Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.

What Is Backdriving? -- What Does Dynamic and Static Load Ratings Mean? -- What Is Lateral Loading?
What Is Backdriving?

Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.

What Does Dynamic and Static Load Ratings Mean?

Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.

What Is Lateral Loading?

Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
