Columna elevadora modular – compacta y personalizable

Name: Columnas elevadoras modulares LG-11 con selección de control remoto
Brand: Progressive Automations
SKU: LG-11-3SS-16-230-HS-24V-N
Price: 158.99 USD
Availability: InStock

Caja de control	Voltaje de entrada	Número de patas
FLTCON-1	110 VAC	1
FLTCON-2	110 VAC	2
FLTCON-2-24VDC	24VDC	2
FLTCON-3	110 VAC	3
FLTCON-4	110 VAC	4

Descripción

LG-11-3SS-16-230-HS-24V-N Especificaciones

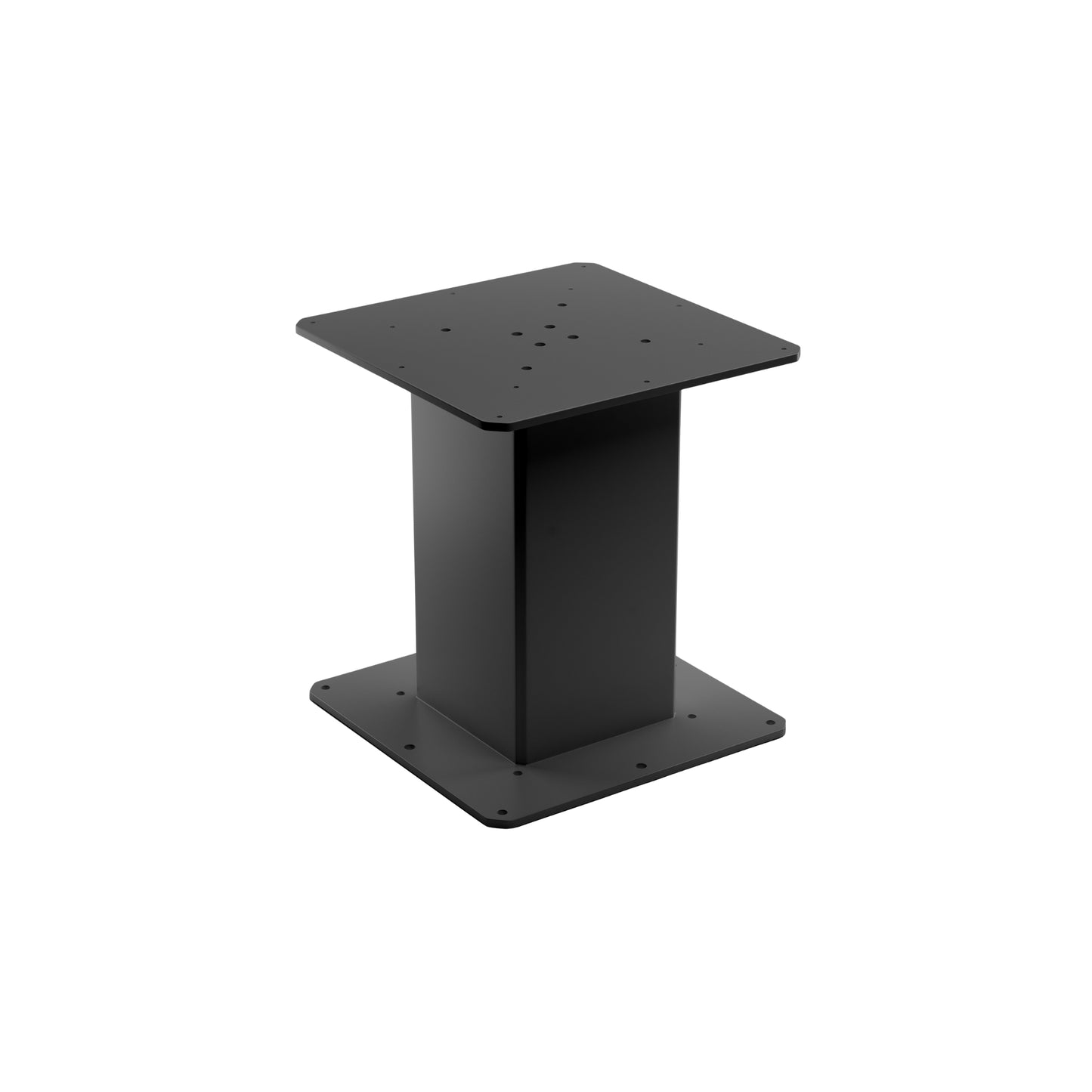

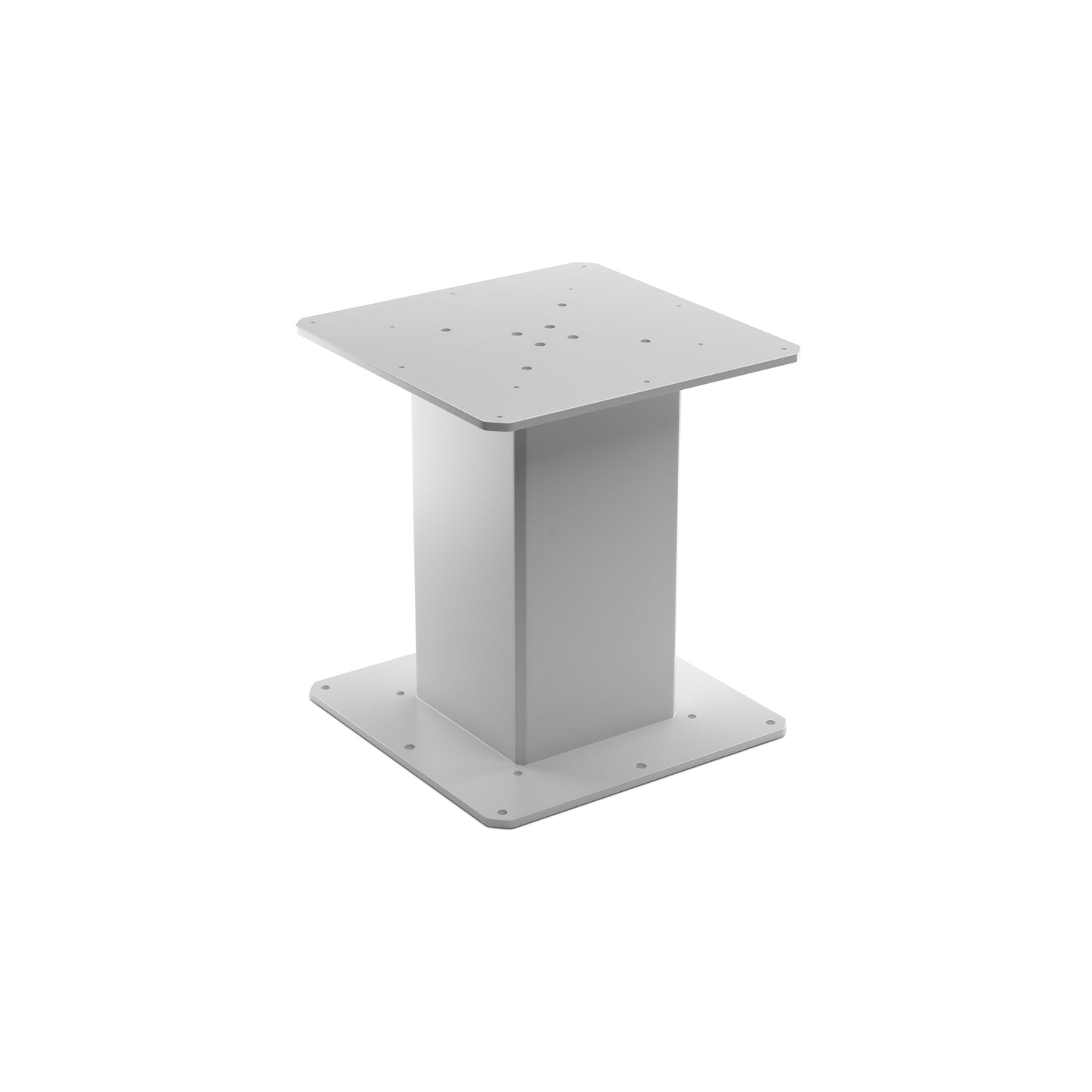

El LG-11-3SS-16-230-HS-24V es una columna elevadora modular de unidad única que puede emparejarse con nuestros controles remotos y con la serie de cajas de control FLTCON, capaces de gestionar hasta 4 patas en un único sistema de control. Esta columna puede generar hasta 230 lb de fuerza, lo que permite configuraciones personalizables capaces de adaptarse a una variedad de montajes personalizados.

Diseñada con una forma de columna cuadrada, este modelo de 3 etapas también tiene un rango de altura de 12.4" a 28.9". Elige entre nuestra amplia gama de opciones de control remoto y disfruta de todas las funciones únicas de nuestros diferentes mandos cableados programables, que pueden usarse junto con mandos inalámbricos para mayor comodidad. La instalación es un procedimiento sencillo con la ayuda de nuestro manual instructivo en PDF, que puedes encontrar aquí.

AUTOCARAVANA, amp;, RV, VIAJE, REMOLQUES, CAMPERS, QUINTA, RUEDAS, Automotriz, Industria, MARINA, MOBILIARIO, Embarcaciones, amp;, Marina, Industria, AUTOCARAVANA & RV, REMOLQUES DE VIAJE, CAMPERS, QUINTAS RUEDAS, Industria automotriz, MOBILIARIO MARINO, Embarcaciones & industria marina,Elevador de mesa,Mesa,Elevador

Resumen

LG-11-3SS-16-230-HS-24V-N Especificaciones

Especificaciones del producto

Input Voltage	24VDC
Travel Distance	16.5"
Height Range	12.4" to 28.9"
Lifting Capacity	230 lb
Speed	0.55 "/s
Wire Length	17”
Lifting Mechanism	Brushed DC Motor
Stages	3
Shape	Square
Color	Silver, Black
Number of Remote Options	Various (with Progressive Automations Control Box)
Material	Aluminum Alloy
Duty Cycle	10% (2 minutes on, 18 minutes off)
Noise Level	<55dB from 1.5m
Protection Level	IP54
Unit Weight	32 lb
Energy Saving Mode	More Info
Programmable Memory Presets	More Info
Charging Port	More Info

Warranty:

84 Months

Información técnica

Seguir un conjunto de estándares es crucial para que las empresas garanticen que sus productos y servicios puedan alcanzar un nivel de calidad que promueva la satisfacción del cliente. En Progressive Automations, nuestro único objetivo es lo mejor para nuestros clientes y nos esforzamos por lograr mejoras continuas. Debido a esto, nos complace anunciar que Progressive Automations ahora cuenta con la certificación ISO 9001:2015.

Calidad en la que puedes confiar – Más información

Hojas de datos

LG-11 Data Sheet

Data sheet for LG-11

View

Modelos 2D/3D

LG-11 3D Models

Base de conocimientos

Videos y artículos

Videos

Presentamos nuestras nuevas columnas elevadoras modulares LG-11 y LG-13

9 de mayo de 2024Nathan Bong

Muchas aplicaciones que requieren un sistema de accionamiento para movimiento lineal utilizan col...

Preguntas frecuentes

What is the lifting capacity of the LG-11 and how does its square column design benefit stability?

The LG-11 lifting column offers a rated lifting capacity of 230 lbs per column. Its square aluminum structure ensures excellent lateral reinforcement and equal stability on all four edges.

What is the height range of the LG-11 and its suitability for compact setups?

Our LG-11 lifting column offers a height range of 12.4" to 28.9", the shortest retracted height available in our
lineup. This compact design allows our LG-11 telescopic lifting column to fit a large range of application
requirements found in compact desks, small automation projects, and table lift systems.

Can the LG-11 be used with FLTCON control boxes in multi-leg systems?

Yes — our LG-11 lifting column can be paired in 2, 3, or 4-leg systems using FLTCON control boxes with synchronized motion for multi-leg system compatibility.

What remote control options and programmable features are available for the LG-11?

Our LG-11 lifting columns are compatible with a wide selection of wired remotes, wireless remotes, and the RT-BT1 Dongle for Bluetooth control. Programmable features include memory preset positions, minimum and maximum height limits, child lock, collision detection sensitivity, stand reminders, and energy saving mode.

Is installation of the LG-11 straightforward and does it include a detailed manual?

Yes, the LG-11 lifting column includes a detailed PDF installation guide with operation instructions, wiring diagrams, and the hardware requirements to ensure plug-and-play easy installation.

visto recientemente

Built the multi-purpose table that was perfect for our space!

We recently decided to convert our breakfast room / bar area into a den. We loved the feel of it, but the coffee table didn't give us enough options for how we love. Enter this lifting column. Our table is on 8 casters, has two aluminum bases and a quartz top. We use it as a coffee table at mid height, as a tea table at its lowest height, and at 30" height we use it for a computer table, kitchen island extension and a breakfast table (with ghost chairs). Couldn't be happier with the way it turned out!

One minor complaint is that the actuator doesn't want to go down to the lowest position on the first try. We have to push for that setting a couple of times.

Dear Atul,

Thank you for your thoughtful review! Your multi-purpose table setup sounds absolutely amazing - being able to transform it from a coffee table to a breakfast table and even a kitchen island extension is such a creative use of the lifting column! We're so glad it worked out perfectly for your space.

We appreciate your feedback regarding the actuator not always reaching the lowest position on the first try. The LG-11 is designed to operate smoothly in both directions, so we’d love to look into this further for you. Please reach out to our support team at sales@progressiveautomations.com - we’re happy to assist in troubleshooting and ensuring everything works as expected.

Enjoy your versatile setup! 😊

Sincerely,
The Progressive Automations Team

Couldn't be simpler. Perfect for a table!

Used two of these for a table. The client wanted it to go from 18 inches to 30 inches, and we were having a lot of trouble finding the right base until I found these. Two of them more than support a 30x90x2-inch olive and epoxy table (although I did need to bolt a steel plate onto the bottom to give it a broader base). The client LOVES it, and it's incredibly easy to operate. Completely plug-and-play, no issues at all. I'll definitely be back the next time a client wants a table that can raise and lower.

Hi Mulligan Woodworking,

Thank you for the amazing feedback! We're thrilled that our lifting columns were the perfect solution for your project and could support such a stunning table design. It's great to hear that your client loves it and that the setup was seamless for you. The steel plate addition is a clever touch! We're looking forward to helping you with more projects in the future. Thank you for choosing us!

Sincerely,
The Progressive Automations Team

Great product/ easy install

The construction of the lifting tower is top notch, the installation is just plug and use can’t, get any easier than that.
Thanks for providing high quality products!!

Hello Hector,

Thank you so much for the wonderful review! 😊 We’re thrilled to hear that the installation was a breeze and that you’re happy with the quality of our lifting column. Providing high-quality, easy-to-use products is our top priority, so it means a lot to know we delivered. If there’s anything else we can do to support you, don’t hesitate to reach out. Happy lifting!

Best regards,
The Progressive Automations Team
