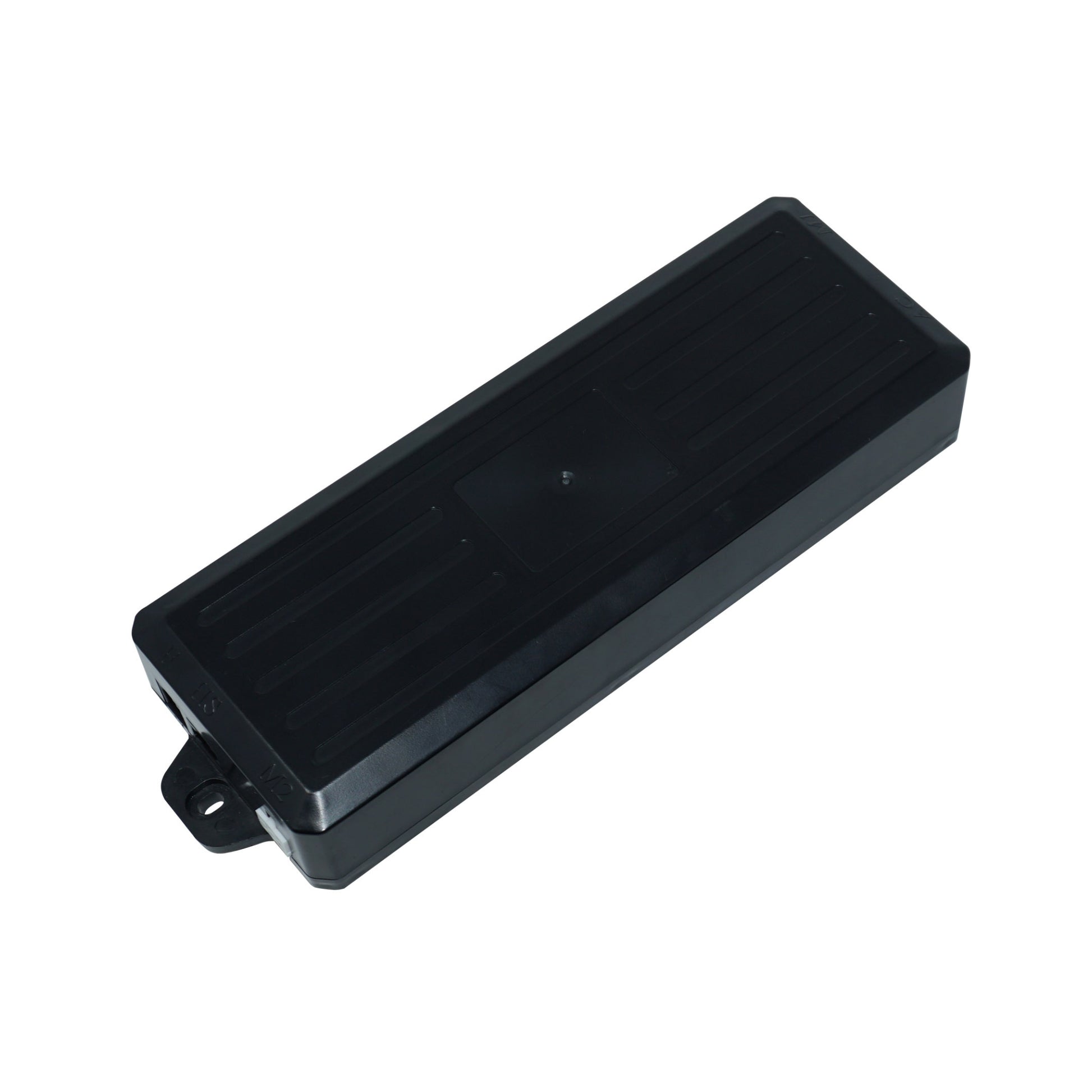

110 VCA - 24 VCC - Caja de Control de Efecto Hall de 2 Canales con Preajustes

Ensure FLTCON-2 compatibility by selecting actuators and lifting columns that have hall effect sensor feedback, 24 VDC operation, and current draw no higher than 8A each. To ensure actuator or lifting column synchronization, the setup requires two identical columns or two identical actuators paired together, similar wire length, and a reset procedure for initial setup. For more information, check our Control Boxes Compatibility Chart.

The hall effect synchronization process reads the positional feedback signals coming from the two actuators to determine their speed and adjusts the power being applied to them for the dual actuator sync effect. Key setup requirements include selecting two identical columns or two identical actuators paired together, similar wire length, and a reset procedure for initial setup.

Assuming the older table lift was already previously using an FLTCON-2 with the same pinouts, mounting, power requirements, and programming requirements, a newer FLTCON-2 could be used as a replacement control box. For more information on compatibility with legacy models, reach out to our customer support team sales@progressiveautomations.com.

Use our RT-BT1 Bluetooth Dongle to connect compatible FLTCON control boxes to your smartphone via the Progressive Motion app, available for both Android and iOS platforms. With this app, you can:

• Adjust compatible linear actuators, lifting columns, and standing desk frames effortlessly.
• Store and access your preferred height settings with four memory positions.
• Manage multiple devices within a single interface for ultimate convenience.

The FLTCON-2 accepts 110 VAC input voltage, while the FLTCON-2-24VDC accepts 24 VDC input voltage—choose based on the power supply types that are available around your installation.
