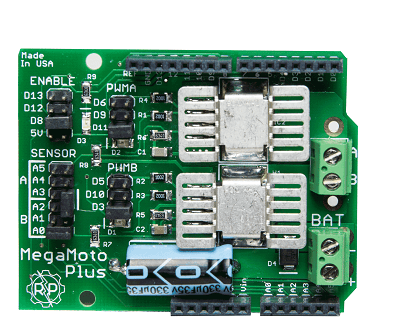

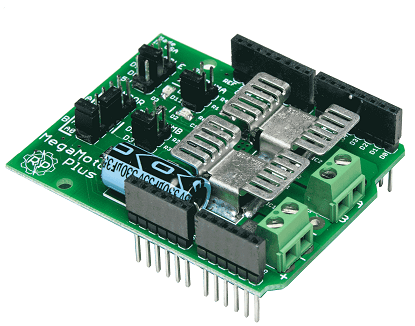

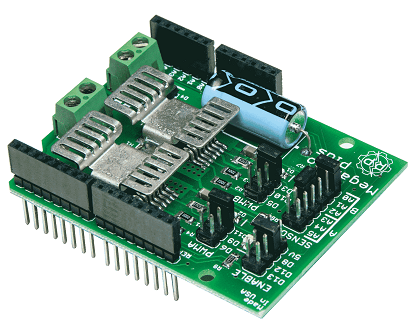

MegaMoto Plus H-bridge for Arduino

MegaMoto Plus H-bridge for Arduino

Model: LC-80

In stock
Ships within 24 hours
Volume Discount
1-6 units 66.00
7-9 units 62.70
10–19 units 59.40
20–49 units 56.10
50+ Get a Quote
$66.00 USD
$66.00 USD
Sale Sold out
  • Linear Actuator Calculator
  • Get Free Actuator Guide
  • Created with Fabric.js 1.7.22 You may also need these
View full details
Description
LC-80 Specifications

The LC-80 is an H-bridge shield for our Arduino units. It is the first of its kind that allows the user to control up to 30A of current at up to 28V. It allows complete speed control of a single actuator and is stackable three high allowing full control of up to three actuators. With the addition of relays that control can extend to up to six actuators.

Specifications
LC-80 Specifications

The LC-80 is an H-bridge shield for our Arduino units. It is the first of its kind that allows the user to control up to 30A of current at up to 28V. It allows complete speed control of a single actuator and is stackable three high allowing full control of up to three actuators. With the addition of relays that control can extend to up to six actuators.

Product Specifications
Input Voltage:
5-28V (24V max battery rating)
Operating Current:
20A (continuous)
Power Chips:
2 ea. BTN7960B
On Resistance:
0.16 ohm max at 25C
PWM Frequency:
DC to 20kHz
Current Sense Output:
0.0745V per Amp - 2.98V at 40A
Power Connectors:
2 each screw terminal (14AWG wire)
Size:
2.9" x 0.5" x 2.1"
Unit Weight:
0.08 lbs
