Finding an actuator for your operational and installation requirements can be a long and tedious process. Often it involves trial-and-error, or thorough planning and discussions before making a decision. Our engineers have created a linear actuator calculator to make this process even easier for you! We will need your max opening angle, mounting point coordinates, the height and width of your object, and the protection rating you require. We have used a dynamic box model to encompass all similar projects. By providing us with the angle for your linear actuator (the maximum opening angle between moving and stationary part of your object), alongside the other mentioned specifications, we can recommend the best actuator choice for you. Play around with this tool to find your exact match and sidetrack any time-consuming product browsing and research. From your input parameters, we will also recommend the best mounting options and controls for your actuator and application. If you’re unsure about your electric actuator angle or parameters, or still need to determine certain required parameters, it may be best to figure these specs out before using this calculator. Alternatively, our team of expert engineers will be delighted to help you out if you’re unsure!

AAC7DA31-52E9-495C-BD5E-CF2C9CDF5EB5

Actuators Under a Load

Actuators Under a Load


A popular mounting position for our customer’s linear actuators is under the load it is required to push. To target these types of applications, our engineers have devised an electric actuator calculator tool that will use your input parameters to recommend the best actuator for your application. To best utilize this tool, we will need: the number of actuators you are planning to use, the maximum mass of your load, your actuator travel distance, your minimum actuator dimensions, required protecting rating, and required speed. From this information, we will use our algorithm to determine which actuator is best suited for you. It is important to be quite sure about the information you provide before deciding on an actuator using this tool. Any discrepancy could result in a change to our actuator recommendation. We will also recommend control options that may be suitable for both your actuator recommendation and application.



B0312823-3ABA-4A41-A716-CC860A119F2F

Actuators Pushing/Pulling

Actuators Pushing/Pulling

Mounting your actuator to perform a push/pull function from the side of your application requires separate input parameters and calculations from our other two calculator options. Therefore, we have created this third and final calculator for linear actuators. While similar to our ‘under the load’ model, this calculator takes other variables into consideration also, such as frictional losses. To determine the best linear actuator for this type of application, we will need the number of actuators you are planning on using, the required travel distance, the required protection rating, any friction coefficients that are applicable to you from our list, and the angle you are going to mount from. Following your force calculations, alongside all other required parameters, we will recommend the best actuator for your application. This calculator will be solely based off of the input parameters you provide, so it is important to have all information completely accurate. Our recommendations may change if there is any change to your provided information.

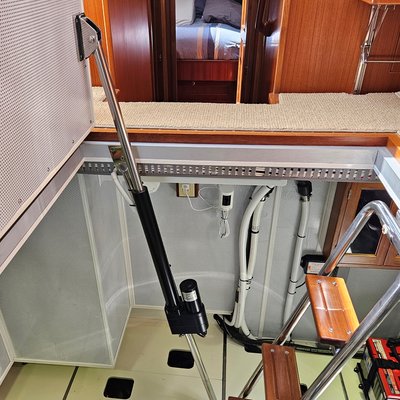

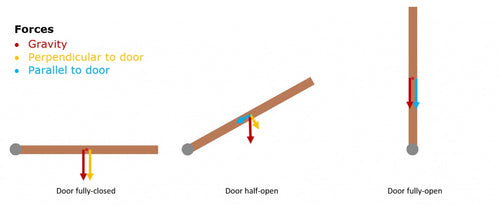

Dynamic Box

Finding an actuator for your operational and installation requirements can be a long and tedious process. Often it involves trial-and-error, or thorough planning and discussions before making a decision. Our engineers have created a linear actuator calculator to make this process even easier for you! We will need your max opening angle, mounting point coordinates, the height and width of your object, and the protection rating you require. We have used a dynamic box model to encompass all similar projects. By providing us with the angle for your linear actuator (the maximum opening angle between moving and stationary part of your object), alongside the other mentioned specifications, we can recommend the best actuator choice for you. Play around with this tool to find your exact match and sidetrack any time-consuming product browsing and research. From your input parameters, we will also recommend the best mounting options and controls for your actuator and application. If you’re unsure about your electric actuator angle or parameters, or still need to determine certain required parameters, it may be best to figure these specs out before using this calculator. Alternatively, our team of expert engineers will be delighted to help you out if you’re unsure!

AAC7DA31-52E9-495C-BD5E-CF2C9CDF5EB5 Actuators Under a Load


A popular mounting position for our customer’s linear actuators is under the load it is required to push. To target these types of applications, our engineers have devised an electric actuator calculator tool that will use your input parameters to recommend the best actuator for your application. To best utilize this tool, we will need: the number of actuators you are planning to use, the maximum mass of your load, your actuator travel distance, your minimum actuator dimensions, required protecting rating, and required speed. From this information, we will use our algorithm to determine which actuator is best suited for you. It is important to be quite sure about the information you provide before deciding on an actuator using this tool. Any discrepancy could result in a change to our actuator recommendation. We will also recommend control options that may be suitable for both your actuator recommendation and application.



B0312823-3ABA-4A41-A716-CC860A119F2F Actuators Pushing/Pulling

Mounting your actuator to perform a push/pull function from the side of your application requires separate input parameters and calculations from our other two calculator options. Therefore, we have created this third and final calculator for linear actuators. While similar to our ‘under the load’ model, this calculator takes other variables into consideration also, such as frictional losses. To determine the best linear actuator for this type of application, we will need the number of actuators you are planning on using, the required travel distance, the required protection rating, any friction coefficients that are applicable to you from our list, and the angle you are going to mount from. Following your force calculations, alongside all other required parameters, we will recommend the best actuator for your application. This calculator will be solely based off of the input parameters you provide, so it is important to have all information completely accurate. Our recommendations may change if there is any change to your provided information.

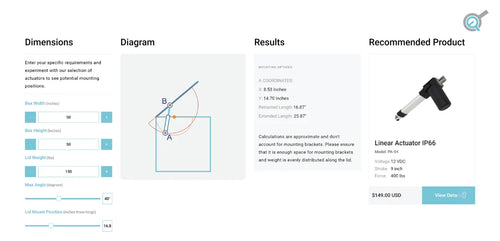

Dimensions

Enter your specific requirements and experiment with our selection of actuators to see potential mounting positions.

-
+
-
+
-
+
45
25
Diagram
Results
Mounting Options: A COORDINATES: X: Y: Retracted Length Extended Length:

Calculations are approximate and don't account for mounting brackets. Please ensure that it is enough space for mounting brackets and weight is evenly distributed along the lid.

Coming soon
Stroke Length Retracted H2H Extended H2H Weight
1" 5.13" 6.13" 1.6 lbs
2" 6.13" 8.13" 1.7 lbs
3" 7.13" 10.13" 1.8 lbs
4" 8.13" 12.13" 1.9 lbs
6" 10.13" 16.13" 2.1 lbs
8" 12.13" 20.13" 2.2 lbs
9" 13.13" 22.13" 2.4 lbs
10" 14.13" 24.13" 2.5 lbs
12" 16.13" 28.13" 2.7 lbs
Voltage 12 VDC, 24 VDC
Stroke 1-12 inch
Force 16-225 lbs
$109.00 USD
Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
4"10.88"14.88"4.65 lbs
6"12.88"18.88"4.85 lbs
8"14.88"22.88"5.10 lbs
10"16.88"26.88"5.40 lbs
12"18.88"30.88"5.65 lbs
18"25.68"43.68"6.45 lbs
24"31.68"55.68"7.20 lbs
Voltage 12 VDC
Stroke 4-24 inch
Force 200-600 lbs
$131.00 USD
Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
2"9.87"11.87"4.60 lbs
3"10.87"13.87"4.75 lbs
4"11.87"15.87"4.90 lbs
6"13.87"19.87"5.35 lbs
8"15.87"23.87"5.65 lbs
9"16.87"25.87"5.85 lbs
10"17.87"27.87"6.00 lbs
12"19.87"31.87"6.30 lbs
14"21.87"35.87"6.60 lbs
16"23.87"39.87"7.00 lbs
18"25.87"43.87"7.30 lbs
20"27.87"47.87"7.65 lbs
22"29.87"51.87"7.90 lbs
24"31.87"55.87"8.20 lbs
30"37.87"67.87"8.95 lbs
40"47.87"87.87"10.50 lbs
Voltage 12 VDC, 24 VDC
Stroke 2-40 inch
Force 100-400 lbs
$149.00 USD
Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
2"9.87"11.87"4.60 lbs
3"10.87"13.87"4.75 lbs
4"11.87"15.87"4.90 lbs
6"13.87"19.87"5.35 lbs
8"15.87"23.87"5.65 lbs
9"16.87"25.87"5.85 lbs
10"17.87"27.87"6.00 lbs
12"19.87"31.87"6.30 lbs
14"21.87"35.87"6.60 lbs
16"23.87"39.87"7.00 lbs
18"25.87"43.87"7.30 lbs
20"27.87"47.87"7.65 lbs
22"29.87"51.87"7.90 lbs
24"31.87"55.87"8.20 lbs
30"37.87"67.87"8.95 lbs
40"47.87"87.87"10.50 lbs
Voltage 12 VDC, 24 VDC
Stroke 6-40 inch
Force 400-900 lbs
$176.00 USD
Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
2"9.87"11.87"1.55 lbs
4"11.87"15.87"1.80 lbs
6"13.87"19.87"2.10 lbs
8"15.87"23.87"2.35 lbs
10"17.87"27.87"2.60 lbs
12"19.87"31.87"2.90 lbs
18"26.50"44.50"3.75 lbs
24"32.50"56.50"4.50 lbs
Voltage 12 VDC
Stroke 2-24 inch
Force 22-180 lbs
$260.00 USD

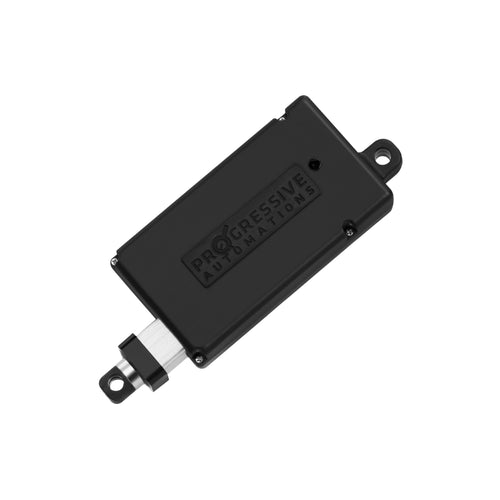

Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
0.5"3.68"4.18"0.15 lbs
0.8"3.98"4.78"0.16 lbs
1"4.18"5.18"0.17 lbs
2"5.18"7.18"0.20 lbs
4"7.81"11.81"0.25 lbs
6"9.81"15.81"0.30 lbs
8"11.81"19.81"0.35 lbs
10"13.81"23.81"0.40 lbs
12"15.81"27.81"0.45 lbs
Voltage 12 VDC
Stroke 0.5-12 inch
Force 5 lbs
$70.00 USD
Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
2"6.53"8.53"2.50 lbs
4"8.53"12.53"2.70 lbs
6"10.53"16.53"2.90 lbs
8"12.53"20.53"3.10 lbs
10"14.53"24.53"3.30 lbs
12"17.71"29.71"3.60 lbs
18"23.71"41.71"4.20 lbs
24"30.50"54.50"5.10 lbs
30"36.50"66.50"5.80 lbs
40"47.87"88.87"7.00 lbs
Voltage 12 VDC, 24 VDC
Stroke 2-40 inch
Force 330 lbs
$156.00 USD
Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
2"6.70"8.70"3.10 lbs
4"8.70"12.70"3.40 lbs
6"10.70"16.70"3.68 lbs
8"12.70"20.70"3.94 lbs
10"14.70"24.70"4.24 lbs
12"16.70"28.70"4.54 lbs
14"18.70"32.70"4.82 lbs
16"20.70"36.70"5.10 lbs
24"29.90"53.90"5.98 lbs
30"35.90"65.90"6.75 lbs
36"41.90"77.90"7.60 lbs
Voltage 12 VDC, 24 VDC
Stroke 2-36 inch
Force 450 lbs
$187.00 USD
Stroke Length Retracted H2H Extended H2H Weight
2" 6.7" 8.7" 3.10 lbs
4" 8.7" 12.7" 3.40 lbs
6" 10.7" 16.7" 3.68 lbs
8" 12.7" 20.7" 3.94 lbs
10" 14.7" 24.7" 4.24 lbs
12" 16.7" 28.7" 4.54 lbs
14" 18.7" 32.7" 4.82 lbs
16" 20.7" 36.7" 5.10 lbs
24" 29.9" 53.9" 5.98 lbs
Voltage 12 VDC, 24 VDC
Stroke 2-24 inch
Force 450 lbs
$200.00 USD

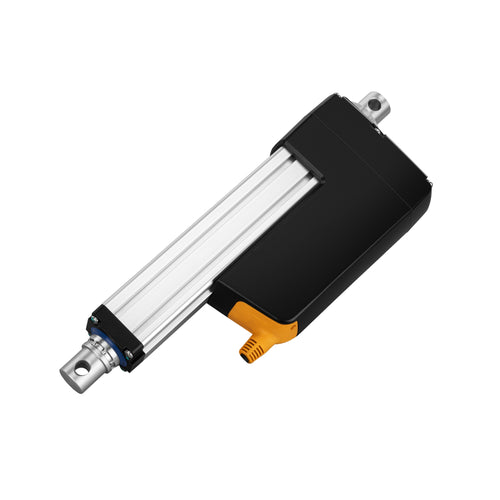

Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
4"11.87"15.87"12.36 lbs
6"13.87"19.87"12.98 lbs
8"15.87"23.87"13.56 lbs
10"17.87"27.87"14.15 lbs
12"21.84"33.84"15.41 lbs
14"23.84"37.84"16.05 lbs
16"25.84"41.84"16.64 lbs
18"27.84"45.84"17.18 lbs
24"33.84"57.84"19.11 lbs
30"41.80"71.80"24.80 lbs
40"51.80"91.80"29.50 lbs
Voltage 12 VDC
Stroke 4-40 inch
Force 720-3000 lbs
$484.00 USD
Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
1"5.13"6.13"1.50 lbs
2"6.13"8.13"1.60 lbs
3"7.13"10.13"1.70 lbs
4"8.13"12.13"1.75 lbs
6"10.13"16.13"1.95 lbs
8"12.13"20.13"2.10 lbs
9"13.13"22.13"2.25 lbs
10"14.13"24.13"2.30 lbs
12"16.13"28.13"2.50 lbs
18"22.13"40.13"3.00 lbs
24"28.13"52.13"3.50 lbs
30"34.13"64.13"4.00 lbs
40"44.13"84.13"4.85 lbs
Voltage 12 VDC, 24 VDC
Stroke 1-40 inch
Force 35-150 lbs
$109.00 USD
Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
2"7.51"9.51"1.90 lbs
4"9.51"13.51"2.05 lbs
6"11.51"17.51"2.30 lbs
8"13.51"21.51"2.40 lbs
10"15.51"25.51"2.60 lbs
12"17.51"29.51"2.80 lbs
18"23.51"41.51"3.30 lbs
24"29.51"53.51"3.75 lbs
30"35.51"65.51"4.30 lbs
40"45.51"85.51"5.15 lbs
Voltage 12 VDC
Stroke 2-40 inch
Force 35-150 lbs
$145.00 USD
Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
1"10.87"11.87"9.55 lbs
2"11.87"13.87"10.95 lbs
4"13.87"17.87"11.55 lbs
6"15.87"21.87"12.25 lbs
8"17.87"25.87"13.25 lbs
10"19.87"29.87"14.10 lbs
12"21.87"33.87"14.90 lbs
14"23.87"37.87"15.25 lbs
16"25.87"41.87"16.20 lbs
18"27.87"45.87"17.25 lbs
20"29.87"49.87"17.70 lbs
22"31.87"53.87"19.15 lbs
24"33.87"57.87"19.20 lbs
30"41.87"71.87"23.60 lbs
40"51.87"91.87"27.30 lbs
Voltage 12 VDC, 24 VDC
Stroke 1-40 inch
Force 850-2000 lbs
$317.00 USD
Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
4"13.87"17.87"11.92 lbs
6"15.87"21.87"12.56 lbs
8"17.87"25.87"13.17 lbs
10"19.87"29.87"13.83 lbs
12"21.87"33.87"14.43 lbs
14"23.87"37.87"15.05 lbs
18"27.87"45.87"17.25 lbs
24"33.87"57.87"18.20 lbs
Voltage 12 VDC, 24 VDC
Stroke 4-24 inch
Force 2000 lbs
$343.00 USD
Stroke LengthRetracted H2HExtended H2HWeight
4"11.87"15.87"10.34 lbs
6"13.87"19.87"10.56 lbs
8"15.87"23.87"11.22 lbs
10"17.87"27.87"12.10 lbs
12"21.84"33.84"12.98 lbs
16"25.84"41.84"14.30 lbs
18"27.84"45.84"14.96 lbs
24"35.81"59.81"17.16 lbs
30"41.81"71.81"21.56 lbs
40"51.81"91.81"24.64 lbs
Voltage 12 VDC, 24 VDC
Stroke 4-40 inch
Force 450-1600 lbs
$297.00 USD
Stroke LengthRetracted H2HExtended H2HWeight
4"11.87"15.87"10.34 lbs
6"13.87"19.87"10.56 lbs
8"15.87"23.87"11.22 lbs
10"17.87"27.87"12.10 lbs
12"21.84"33.84"12.98 lbs
16"25.84"41.84"14.30 lbs
18"27.84"45.84"14.96 lbs
24"35.81"59.81"17.16 lbs
30"41.81"71.81"21.56 lbs
40"51.81"91.81"24.64 lbs
Voltage 24 VDC
Stroke 4-40 inch
Force 1600 lbs
$319.00 USD
Stroke LengthRetracted H2HExtended H2HWeight
0.5"3.26"3.76"0.13 lbs
1"3.76"4.76"0.14 lbs
2"4.76"6.76"0.16 lbs
4"6.76"10.76"0.21 lbs
6"8.76"14.76"0.26 lbs
8"10.76"18.76"0.31 lbs
Voltage 12 VDC
Stroke 0.5-8 inch
Force 8-39 lbs
$65.00 USD
Stroke LengthRetracted Hole-to-Hole LengthExtended Hole-to-Hole LengthWeight
4"11.28"15.28"5.70 Ibs
6"13.28"19.28"6.50 Ibs
8"15.28"23.28"7.00 Ibs
10"17.28"27.28"7.25 Ibs
12"19.28"31.28"7.70 Ibs
14"21.28"35.28"7.90 Ibs
Voltage 12 VDC
Stroke 4-14 inch
Force 675 lbs
$187.00 USD
Stroke Length Retracted H2H Extended H2H Weight
1" 13.8" 14.8" 3.99 lbs
2" 14.8" 16.8" 4.23 lbs
3" 15.8" 18.8" 4.48 lbs
4" 16.8" 20.8" 4.7 lbs
6" 18.8" 24.8" 5.18 lbs
8" 20.8" 28.8" 5.64 lbs
10" 22.8" 32.8" 6.11 lbs
12" 24.8" 36.8" 6.59 lbs
16" 28.8" 44.8" 7.54 lbs
20" 32.8" 52.8" 8.47 lbs
24" 36.8" 60.8" 9.42 lbs
Voltage 12 VDC
Stroke 1-24 inch
Force 56 lbs
$251.00 USD
Stroke LengthRetracted H2HExtended H2HWeight
12"17.57"29.57"13.2 lbs
24"23.57"47.57"22.1 lbs
Voltage 24 VDC
Stroke 12-24 inch
Force 270 lbs
$385.00 USD
