IP66 Compact Micro Linear Actuator
Model: PA-ST5
The PA-ST5 is a short stroke tubular linear actuator (1–3.9" travel) with 90 lbs of static holding force and an ultra-low 0.16 A draw. This short stroke linear actuator is IP66 rated for compact outdoor and enclosed installations.
Couldn't load pickup availability
Overview
[PA-ST5]

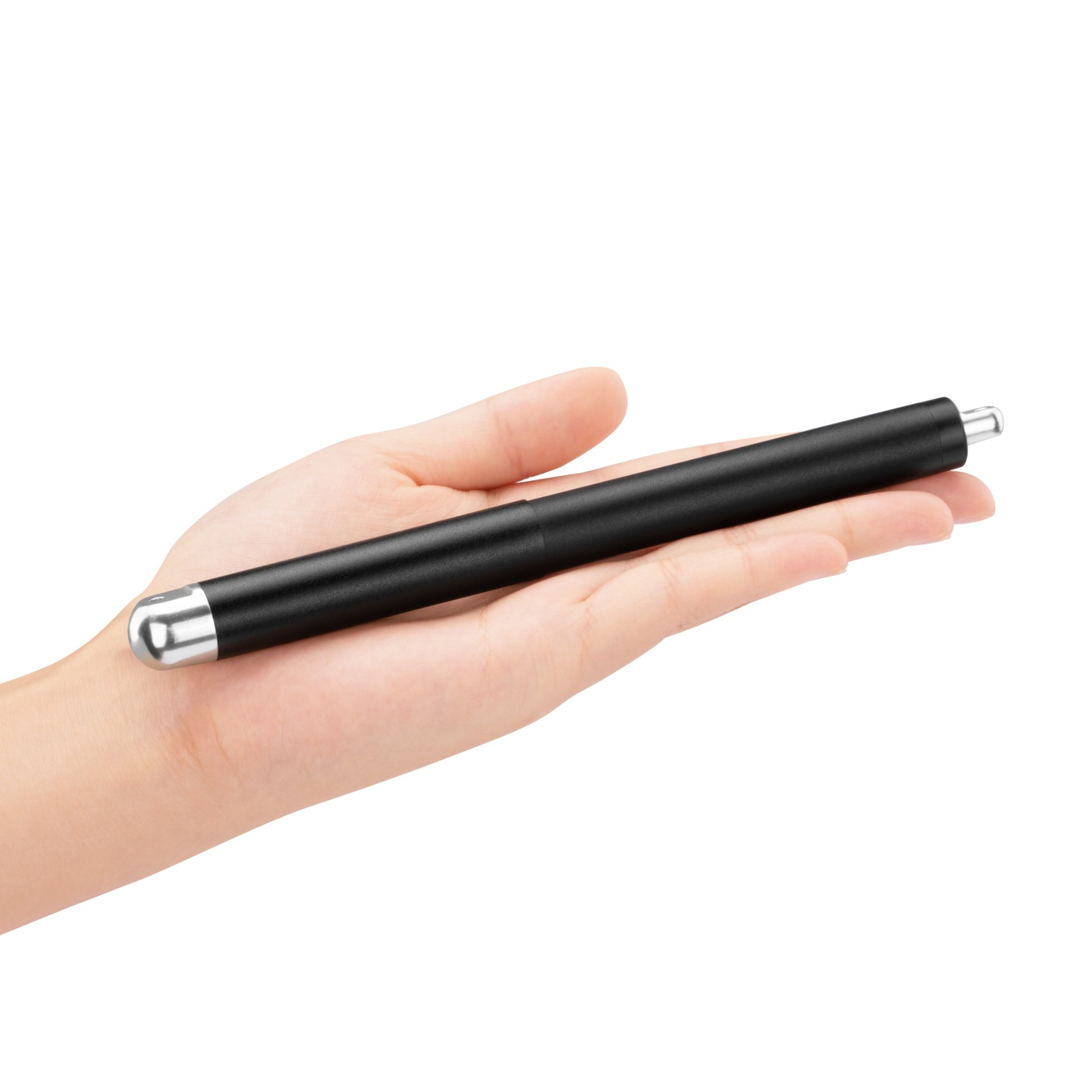

The PA-ST5 Micro Linear Actuator is designed for applications where installation space is limited but reliable linear motion is still required. Its compact form factor, stainless steel stroke rod, and IP66 ingress protection provide durable performance in outdoor environments exposed to dust and water jets. With a low full-load current draw of 0.16 A, the PA-ST5 delivers up to 22 lbs of dynamic force and 90 lbs of static holding force in a compact micro actuator design.
Technology
Specifications
The PA-ST5 Micro Linear Actuator combines compact size, low current draw, and durable construction for efficient integration into space-constrained applications. A standard 2-Pin SL connector supports straightforward plug-and-play installation, while its IP66-rated housing makes this stainless steel rod actuator suitable for home automation, machinery, automotive applications, and other outdoor use cases.
| Voltage | 12 VDC |
| Dynamic Force | 22 lbs |
| Static Force | 90 lbs |
| Speed - No Load | 0.30"/sec |
| Speed - Full Load | 0.20"/sec |
| Current - No Load | 0.01 A |
| Current - Full Load | 0.16 A |
The PA-ST5 Micro Linear Actuator is designed for straightforward integration into compact systems. Its small footprint, stainless steel stroke rod, IP66-rated construction, low current requirements, and standard 2-Pin SL connector help simplify installation across a range of indoor and outdoor automation projects. Refer to the Product Specifications table for dimensions, duty cycle, environmental rating, connector type, materials, stroke options, and other technical specifications.
Complete your PA-ST5 Micro Linear Actuator system with compatible mounting and control components. Refer to the compatibility tables to identify accessories suitable for your selected actuator configuration.
MOUNTING BRACKETS:
The PA-ST5 Micro Linear Actuator is compatible with the BRK-ST5 mounting brackets, designed specifically for the PA-ST5 to support straightforward installation in compact applications. Refer to the corresponding bracket product page for additional specifications and installation information.
CONTROL SYSTEMS:
The PA-ST5 is designed for use with the PA-CB2 control box in compatible 12 VDC applications. Its low current draw of 0.16 A supports efficient operation and straightforward integration with this control system. Refer to the compatibility tables and product datasheet to confirm voltage, current, connector, and application requirements.
