Feedback Heavy Duty Linear Actuator
Skip to product information
1 of 9

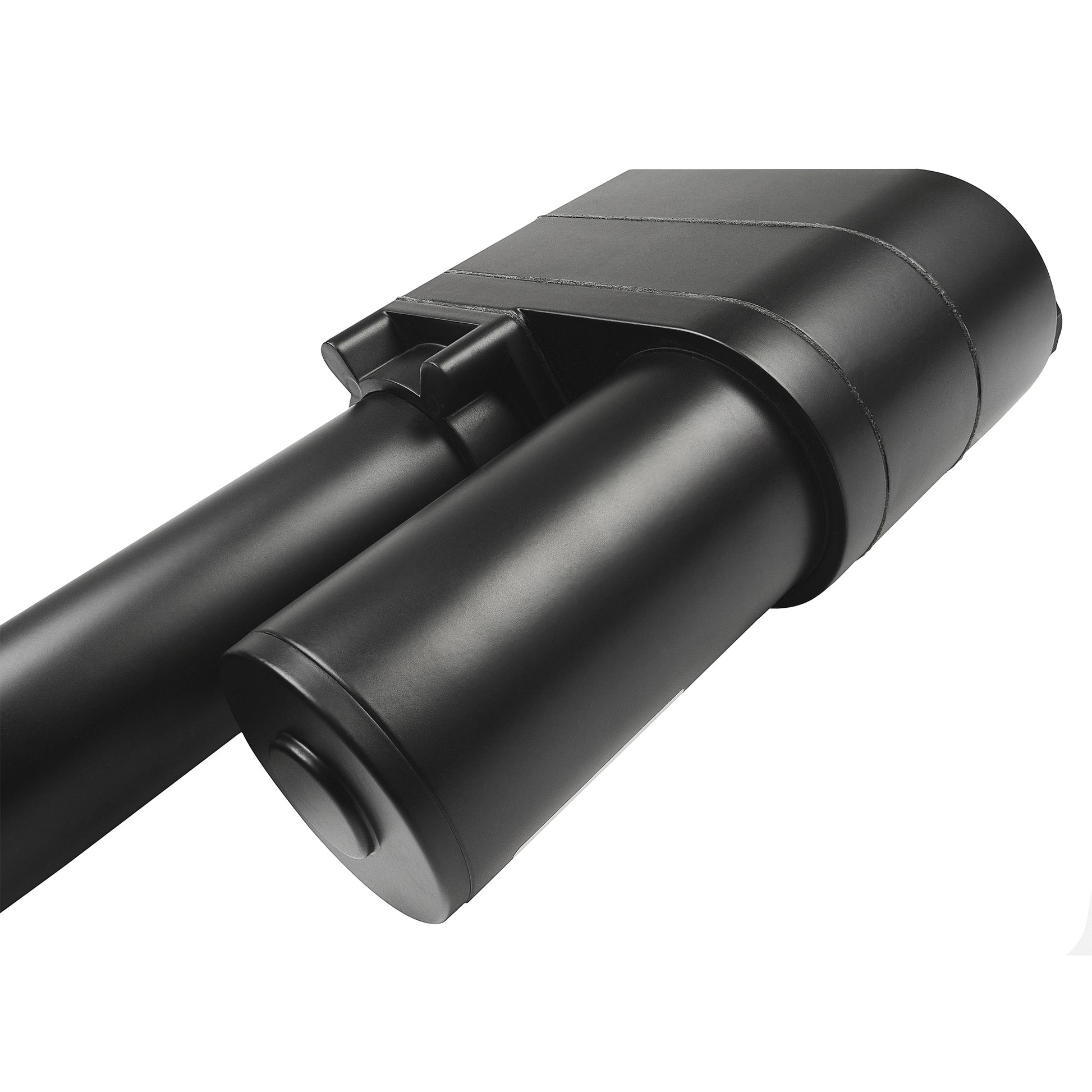

Feedback Heavy Duty Linear Actuator

Feedback Heavy Duty Linear Actuator

Model: PA-17-10-2000-POT

Low stock
Ships within 24 hours
Volume Discount
1-6 units $354.00 USD
7-9 units $336.30 USD
10–19 units $318.60 USD
20–49 units $283.20 USD
Regular price $354.00 USD
Regular price Sale price $354.00 USD
Sale Sold out
Feedback - Yes
Voltage - 12 VDC
Stroke - 10 inch
Force - 2000 lbs
  • Linear Actuator Calculator
  • Get Free Actuator Guide
View full details

Description
PA-17-POT Specifications

The PA-17 Heavy Duty Linear Actuator with potentiometer feedback provides cost-effective high-force capabilities. The stainless steel shaft accompanied by metal gears allows it to push and pull up to 2000 lbs, and hold up to 4000 lbs. The environmental protection rating provides a versatile unit able to withstand dust, water, and harsh environments. The heavy-duty actuator is the only unit in our line of products with adjustable limit switches. This feature allows the user full control over where to start and stop the actuator. The added potentiometer allows for positional feedback when using compatible control systems. If you do not require potentiometer feedback on this model, check out our PA-17 base model here!

This unit can be found in industries such as manufacturing, renewable energy, agriculture, and industrial automation. For a full list of specifications, customization options, and dimensional drawings, please see our PA-17 POT Data Sheet.

Actuators Comparison Chart

MOUNTING OPTIONS:

The BRK-17 bracket, designed for the Heavy Duty and High Force Industrial Actuators, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.

CONTROL SYSTEMS:

The Heavy Duty electric actuator is compatible with a variety of our controllers as long as they have a 20A rating. With each controller comes a wide range of control options useful for whatever project you have in mind, as well as a very simple wiring process. Take a look at our control systems page for a full list of options. Due to the high current draw, relays and other components may be required for compatibility.

*Our PA-17-POT actuators come with potentiometer feedback that can be used to read positional information while the motors draw a high amount of current to handle heavy loads. For more information, please contact sales@progressiveautomations.com.
BROWSE MORE ACTUATORS

Custom options

Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!

Overview
PA-17-POT Specifications

The PA-17 Heavy Duty Linear Actuator with potentiometer feedback provides cost-effective high-force capabilities. The stainless steel shaft accompanied by metal gears allows it to push and pull up to 2000 lbs, and hold up to 4000 lbs. The environmental protection rating provides a versatile unit able to withstand dust, water, and harsh environments. The heavy-duty actuator is the only unit in our line of products with adjustable limit switches. This feature allows the user full control over where to start and stop the actuator. The added potentiometer allows for positional feedback when using compatible control systems. If you do not require potentiometer feedback on this model, check out our PA-17 base model here!

This unit can be found in industries such as manufacturing, renewable energy, agriculture, and industrial automation. For a full list of specifications, customization options, and dimensional drawings, please see our PA-17 POT Data Sheet.

Actuators Comparison Chart

MOUNTING OPTIONS:

The BRK-17 bracket, designed for the Heavy Duty and High Force Industrial Actuators, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.

CONTROL SYSTEMS:

The Heavy Duty electric actuator is compatible with a variety of our controllers as long as they have a 20A rating. With each controller comes a wide range of control options useful for whatever project you have in mind, as well as a very simple wiring process. Take a look at our control systems page for a full list of options. Due to the high current draw, relays and other components may be required for compatibility.

*Our PA-17-POT actuators come with potentiometer feedback that can be used to read positional information while the motors draw a high amount of current to handle heavy loads. For more information, please contact sales@progressiveautomations.com.
BROWSE MORE ACTUATORS

Custom options

Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!

Force, Speed & Current
Product Specifications
Length & Weight
Brackets Compatibility
Control Boxes Compatibility
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Read More

Data Sheets

User Manual

User manual

View

2D/3D models

Different stroke lengths of models are available upon request, please email us at: sales@progressiveautomations.com

Video & Articles
Videos
Related blog articles:
Photo of linear actuator

How to Replace an Actuator?

Anna Sapiga

Electric linear actuators are used in many applications. Chances are, there are a few of them aro...

Learn more
Feedback Linear Actuators: Popular Uses and Applications

Feedback Linear Actuators: Popular Uses and Applications

Nathan Bong

Electric linear actuators with positional feedback electronics are capable of performing some imp...

Learn more
 Photo of arm man has a mobile telephone on which image of  Wi-Fi Actuator App and linear actuator on background

Easy Setup & Control of Linear Actuators with Wi-Fi App

Nathan Bong

Many control boxes require a wired or wireless remote to operate, however, the demand for an app ...

Learn more
Stair Climbing Wheelchair Using PA-17-POT Actuator

Stair Climbing Wheelchair Using PA-17-POT Actuator

Nathan Bong

Individuals with limited or no leg mobility often require mobility devices capable of navigating ...

Learn more
Support
FAQ
How Can I Determine Which Progressive Automations Linear Actuator is Best Suited for My Application?

Depending on your application, there are different specification requirements you should consider when determining the linear actuator you need. These requirements include force, stroke, speed and mounting dimensions. For detailed actuator information, you can refer to either the datasheet or the specification table located on the selected actuator's product page. You can also contact us to speak with one of our expert engineers.

What Is Duty Cycle and How Is It Calculated?

Duty cycle is the fraction of the working period in which a linear actuator can remain active. You can calculate the duty cycle of a linear actuator by using the following equation: Duty cycle (%) = (Time the linear actuator is active) / (Time for one working period)

For example: With a 25% duty cycle, an actuator can run for 5 minutes continuously before needing to rest for 15 minutes before operating.

What Does Stroke Mean? How Am I Supposed to Know Which Size to Choose?

Stroke is the travel distance of the extending rod. To find the stroke length you require, measure your application from the fully retracted position to the fully extended position. The difference will equal the stroke length you require.

How Do I Know Which Force Rating Is Right for My Application?

We always recommend purchasing an actuator with a higher force rating than what the application requires. If unsure of your force requirements, this article may help you calculate this: How to Calculate Force to Find the Right Linear Actuator

Can I Synchronize My Linear Actuators?

Yes, this is possible. However, it does depend on the units you are currently using. To synchronize actuators, they require a form of feedback such as a potentiometer or hall effect sensors. For more information, see below some of our key content regarding linear actuator synchronization.

Controlling Multiple Linear Actuators at the Same Time

How To Utilize FLTCON-2 & FLTCON-4 Control Boxes?

What Are the Control Box Options For My Actuator?

The control box you choose should be able to provide sufficient voltage and current rating to your actuator. If you are unsure of the specifications, please contact us.

Alternatively, you can also find compatible control boxes on your selected linear actuator's product page.

What Is Backdriving? -- What Does Dynamic and Static Load Ratings Mean? -- What Is Lateral Loading?
What Is Backdriving?

Backdriving is when an actuator starts sliding down under load, when it is either overloaded or when the actuator has been damaged. Watch the video.

What Does Dynamic and Static Load Ratings Mean?

Dynamic load rating is the amount of weight an actuator can pull or push safely when being powered. Static load rating is the amount of weight the actuator can hold or withstand without back driving when it is not being powered. For example, let's just say you have an actuator installed on a window and the static load rating of the actuator is 100lbs, it could experience backdriving when there is a high wind event, which means there will be more pressure exerted on the actuator which would exceed the 100lbs load rating of the actuator.

What Is Lateral Loading?

Lateral loading is when the actuator experiences forces from the lateral plane. Actuators are not meant to handle lateral forces at all so if it experiences any lateral forces, it will likely damage the actuator or bend the rod. So it's advised never to use lateral forces and always make sure the actuator is fully in line or in sync with your application, so it does not take any load other than the axial load. Watch the video.
