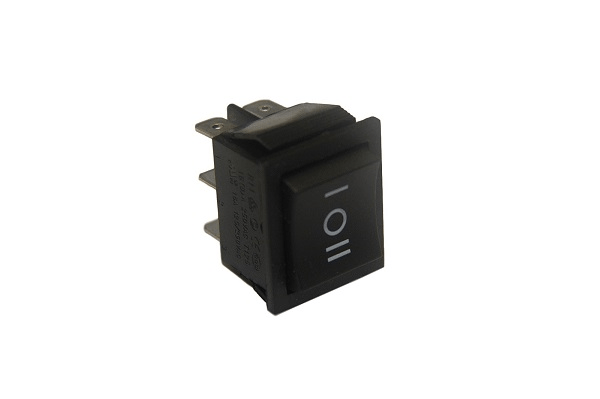

Rocker Switch - Momentary/Non-Momentary - 10A
Model: RC-01 / RC-03

Rocker Switch - Momentary/Non-Momentary - 10A

Model: RC-01 / RC-03
Volume Discount
1-6 units 19.00
7-9 units 18.05
10–19 units 17.10
20–49 units 13.30
Regular price
$19.00 USD
Sale price
$19.00 USD
Switch Function *
Quantity
-
+

Created with Fabric.js 1.7.22 You may also need these
Description
RC-01 / RC-03 Specifications

This rocker switch is ideal to control linear actuators at a low cost. It is available in two models, one with momentary and one with non-momentary functionality. The momentary switch is spring-loaded, just press a button to extend or retract actuator. When the button is released the switch will spring back to off position. For the non-momentary switch, press a button and the actuator will fully extend and will stop once fully extended. Push the button in the opposite direction and the actuator will fully retract. In addition, it has a middle position that can stop a linear actuator at any point.

Specifications
RC-01 / RC-03 Specifications

This rocker switch is ideal to control linear actuators at a low cost. It is available in two models, one with momentary and one with non-momentary functionality. The momentary switch is spring-loaded, just press a button to extend or retract actuator. When the button is released the switch will spring back to off position. For the non-momentary switch, press a button and the actuator will fully extend and will stop once fully extended. Push the button in the opposite direction and the actuator will fully retract. In addition, it has a middle position that can stop a linear actuator at any point.

Product Specifications
Input Voltage:
12 VDC
Current:
10A Max
Switch Operations:
On-Off-On
Circuitry:
DPDT
Mounting Type:
0.095" Quick-Connect Tab
Size:
1.3" x 1.3" x 1.0"
Unit Weight:
0.05 lbs
18 Months
Media
Videos
Dimensional Drawing
Dimensional Drawing
