Miniature Electric Linear Actuator - Progressive Automations

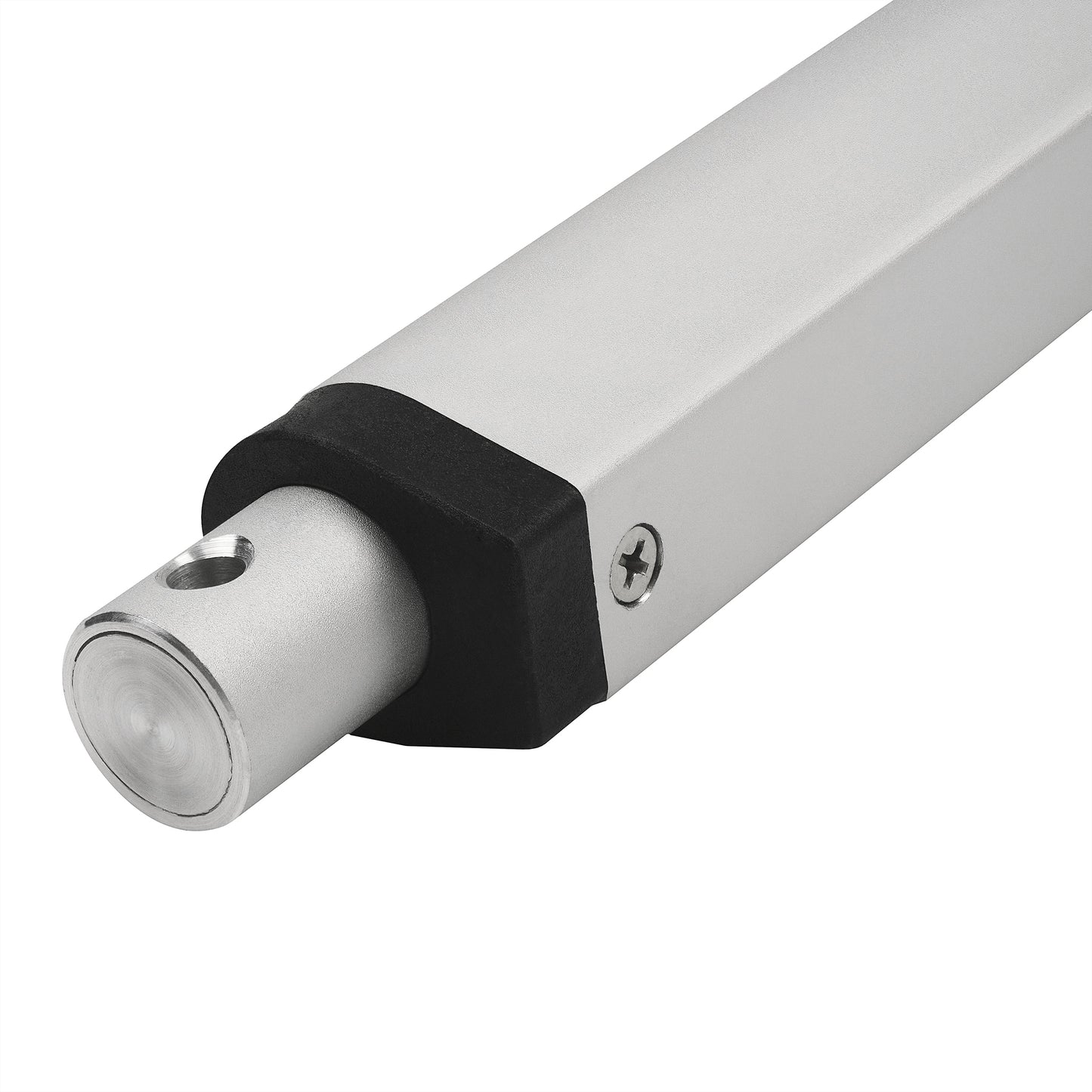

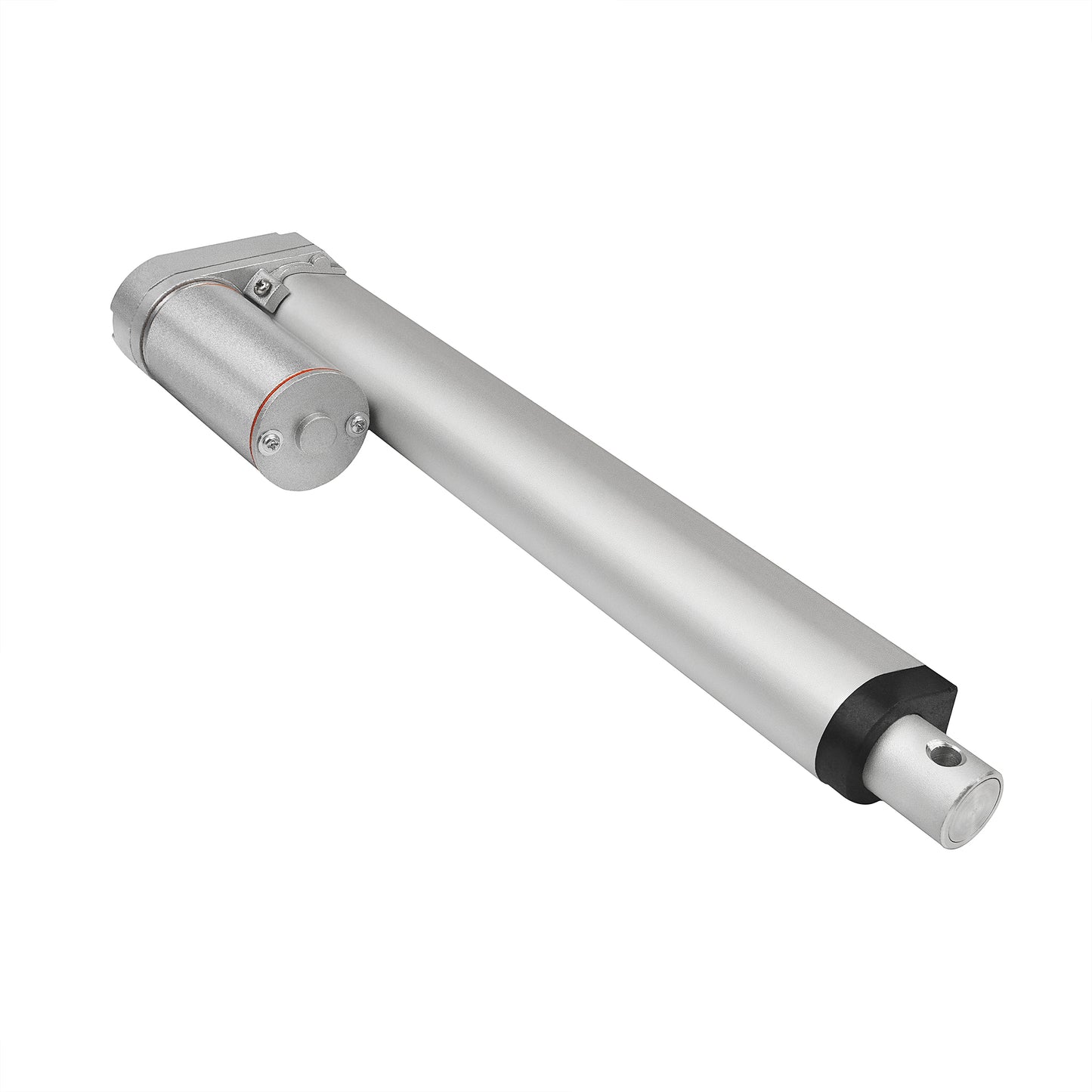

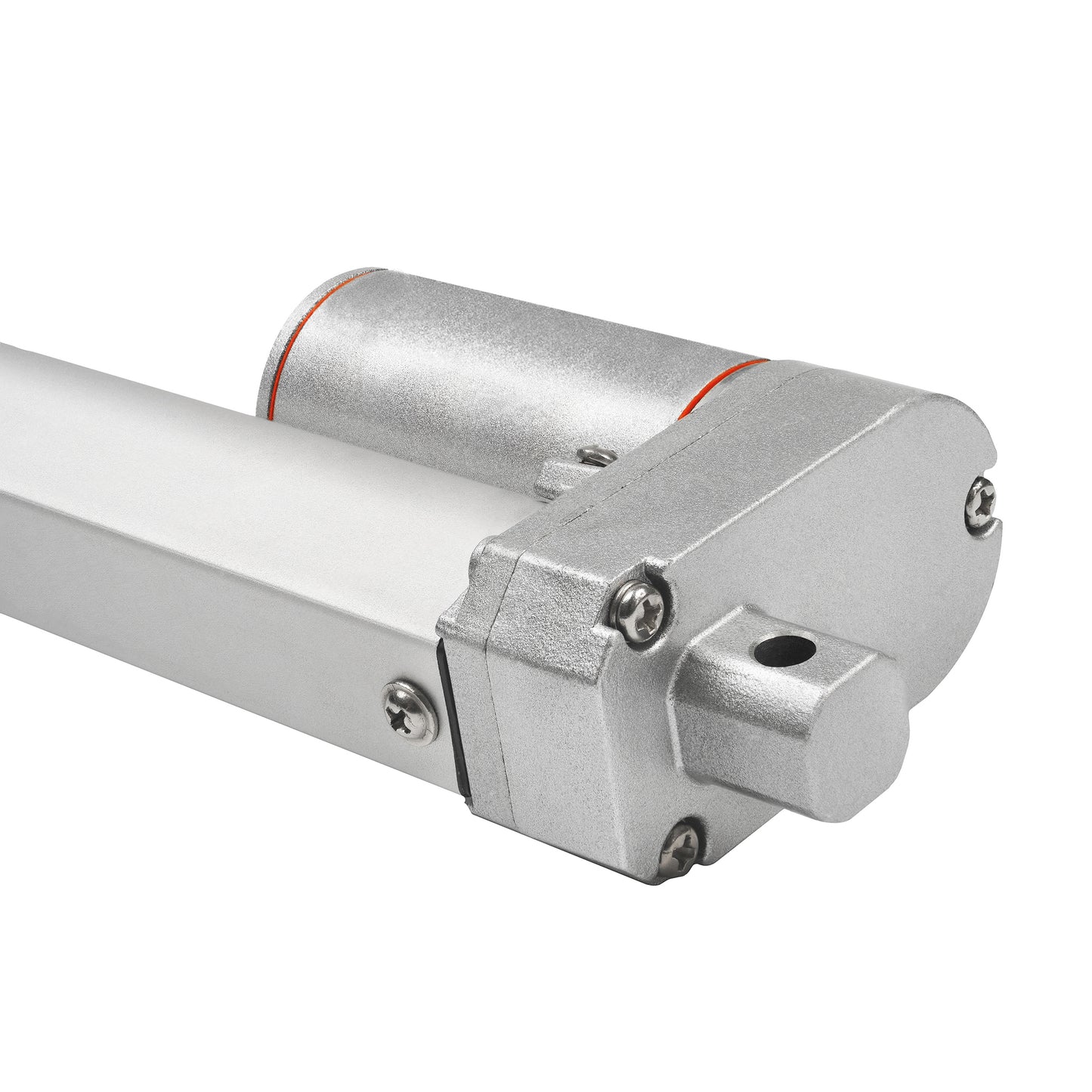

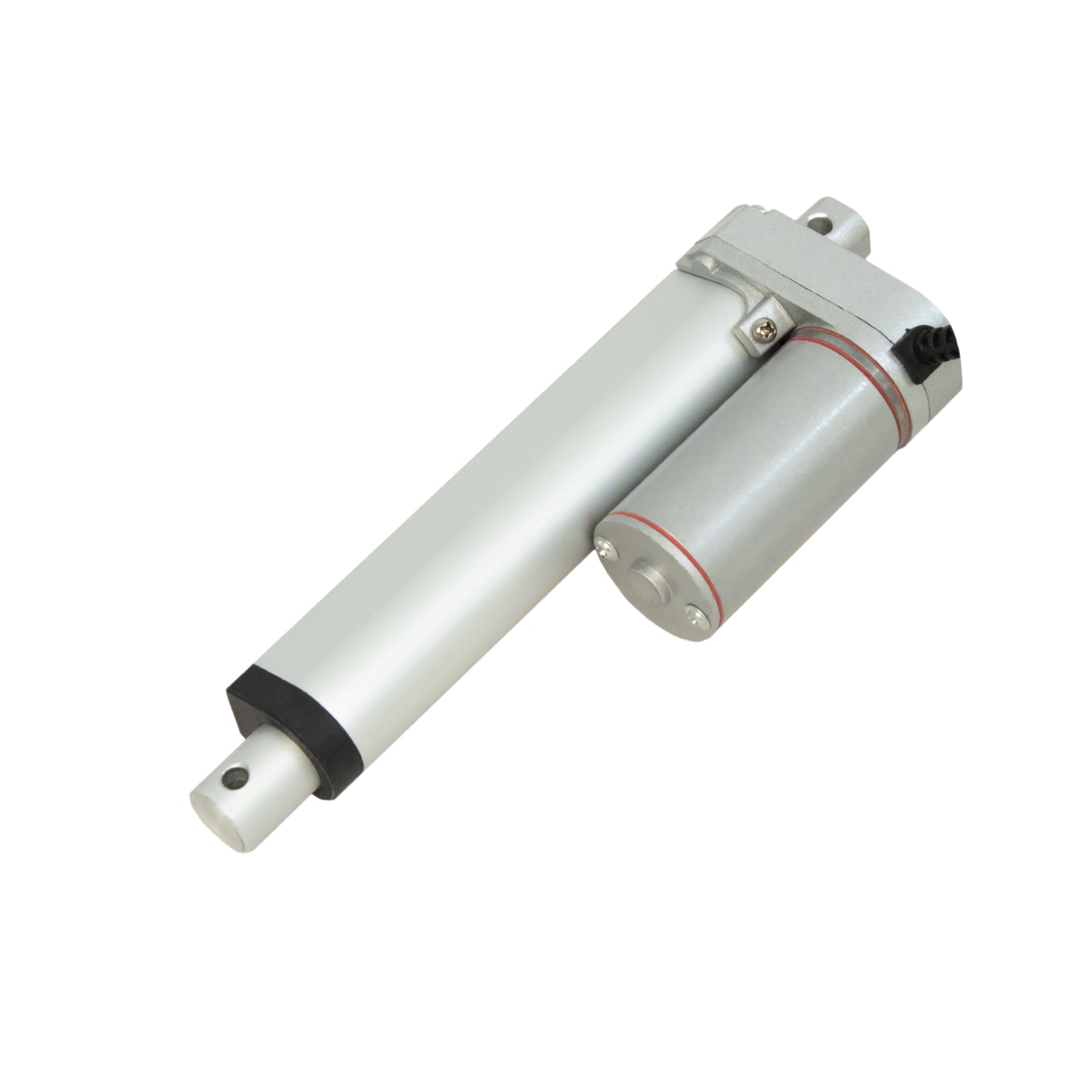

Name: Mini Linear Actuator - Optional Feedback
Brand: Progressive Automations
SKU: PA-14-1-35
Price: 119.99 USD
Availability: InStock

Upgrade to the new model PA-01 for enhanced performance!

Improved quality and durability
Lower real-world noise and vibration
Maintains the same mounting size and length

Compare now and upgrade with confidence!

	PA-01	PA-14
Dynamic Load Options	16, 28, 56, 112, 169, 225 lbs	35, 50, 75, 110, 150 lbs
Highest Load	225 lbs	150 lbs
Fastest Speed	3.54"/sec	2.00"/sec
Ingress Protection	IP65	IP54
Stroke Options	1" to 40"	1" to 40"
Hall Effect Feedback	Optional	No

View PA-01 Proceed to Cart

Description

PA-14 Specifications

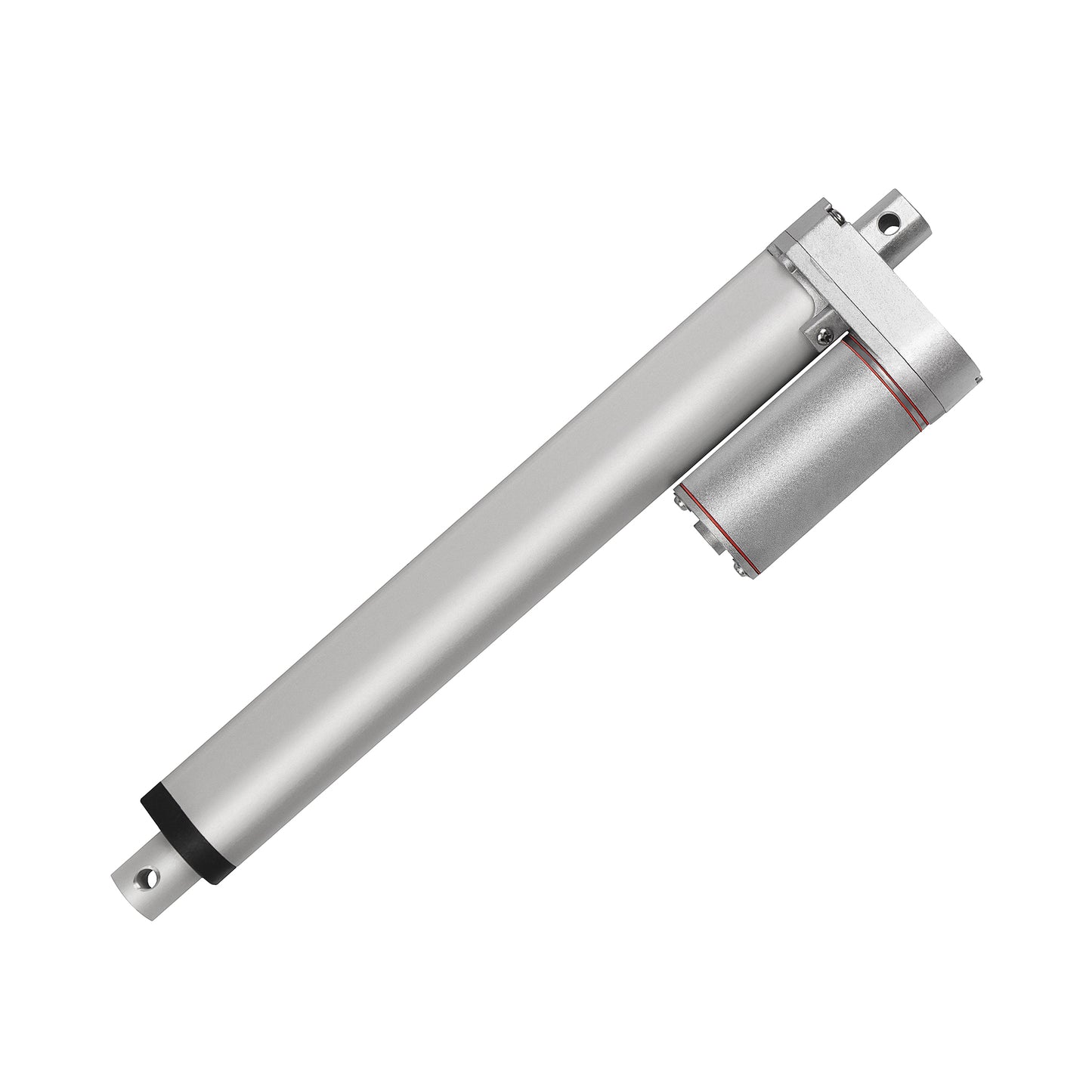

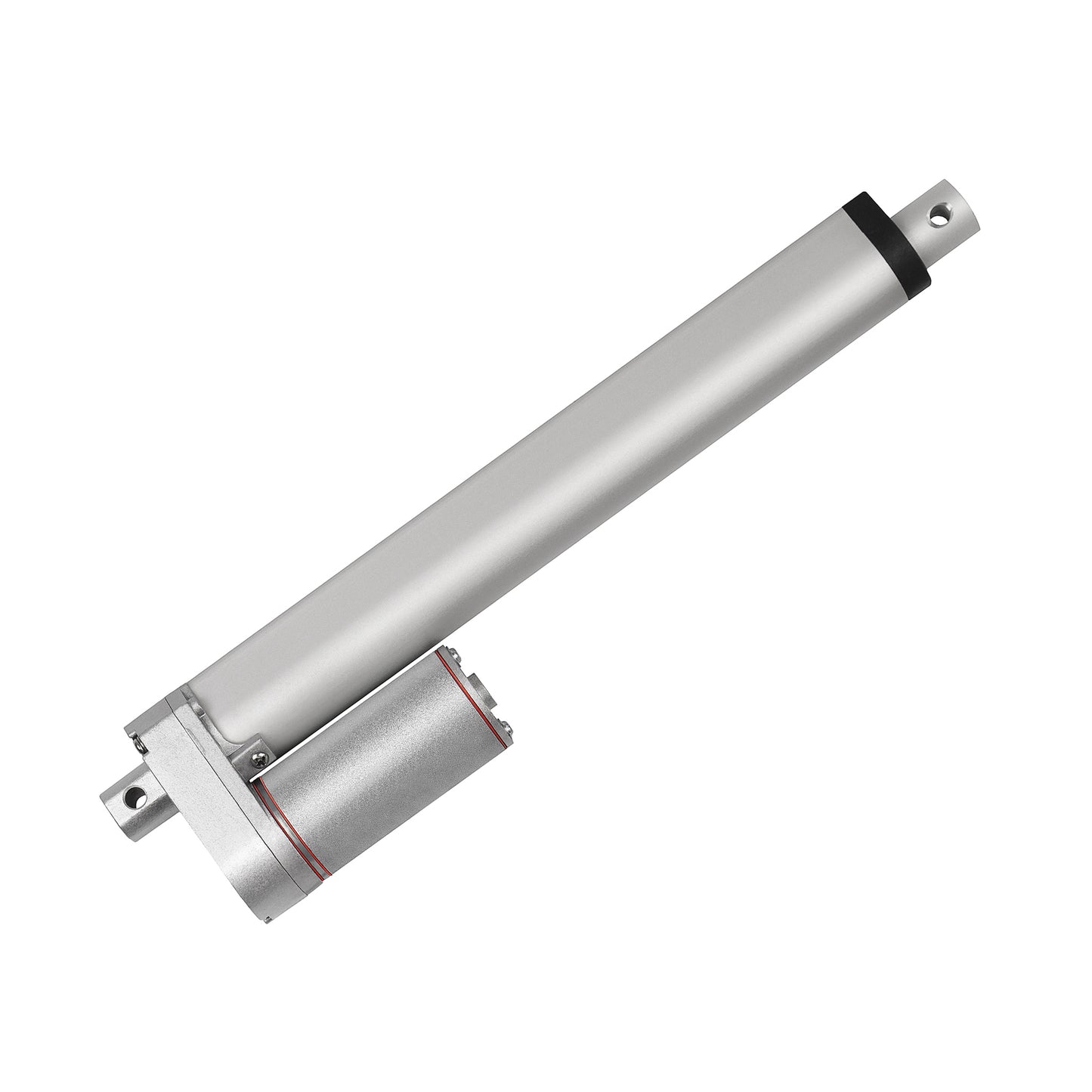

The PA-14 Mini Linear Actuator utilizes a fundamental linear motion design in a compact body. The low current, medium force actuator is ideal for industries such as home automation, automotive, general automation, and manufacturing. For a full list of specifications, customization options, and dimensional drawings, please see our PA-14 Data Sheet.

Actuators Comparison Chart

MOUNTING OPTIONS:

The BRK-14 and BRK-01-U brackets, designed for the Mini Linear Actuator, allow for a simple installation process. For more detailed information and specifications, please see our brackets product page.

CONTROL SYSTEMS:

The low current draw allows for connectivity with most of our control systems. For more information about our plug-n-play control boxes and development micro-controllers, please see our control systems page.

Browse More Actuators Find the Right Actuator

Custom options

Looking for an actuator but the specifications don't exactly match what you require? We have an extensive list of customization capabilities to ensure you get exactly what you need for your project. Download this product's data sheet and find out more about your customization options!

Get Free Actuator Guide

Overview

PA-14 Specifications

Actuators Comparison Chart

MOUNTING OPTIONS:

CONTROL SYSTEMS:

Browse More Actuators Find the Right Actuator

Custom options

Get Free Actuator Guide

Force, Speed & Current

Product Specifications

Input Voltage:	12 VDC, 24 VDC
Stroke:	1" to 40"
Feedback:	Optional
Duty Cycle: i Duty Cycle: The ratio of on time to off time, usually expressed as a percentage. Learn more from the article in our blog: Understanding Duty Cycle.	25%
Weather Protection: i Protection Class: An International Protection Marking, also known as IP Rating/Code, is the rating of a product’s ability to withstand liquid and dust intrusion. Learn more from the article in our blog: What is an IP Rating?	IP54
Overload Protection:	None
Operational Temperature:	-5ºC to 65ºC (23ºF to 149ºF) (Standard), -25ºC to 65ºC (-13ºF to 149ºF) (Customizable)
Operating Noise:	<45 dBA
Limit Switch:	Built-In (Non-Adjustable)
Cable Length:	40"

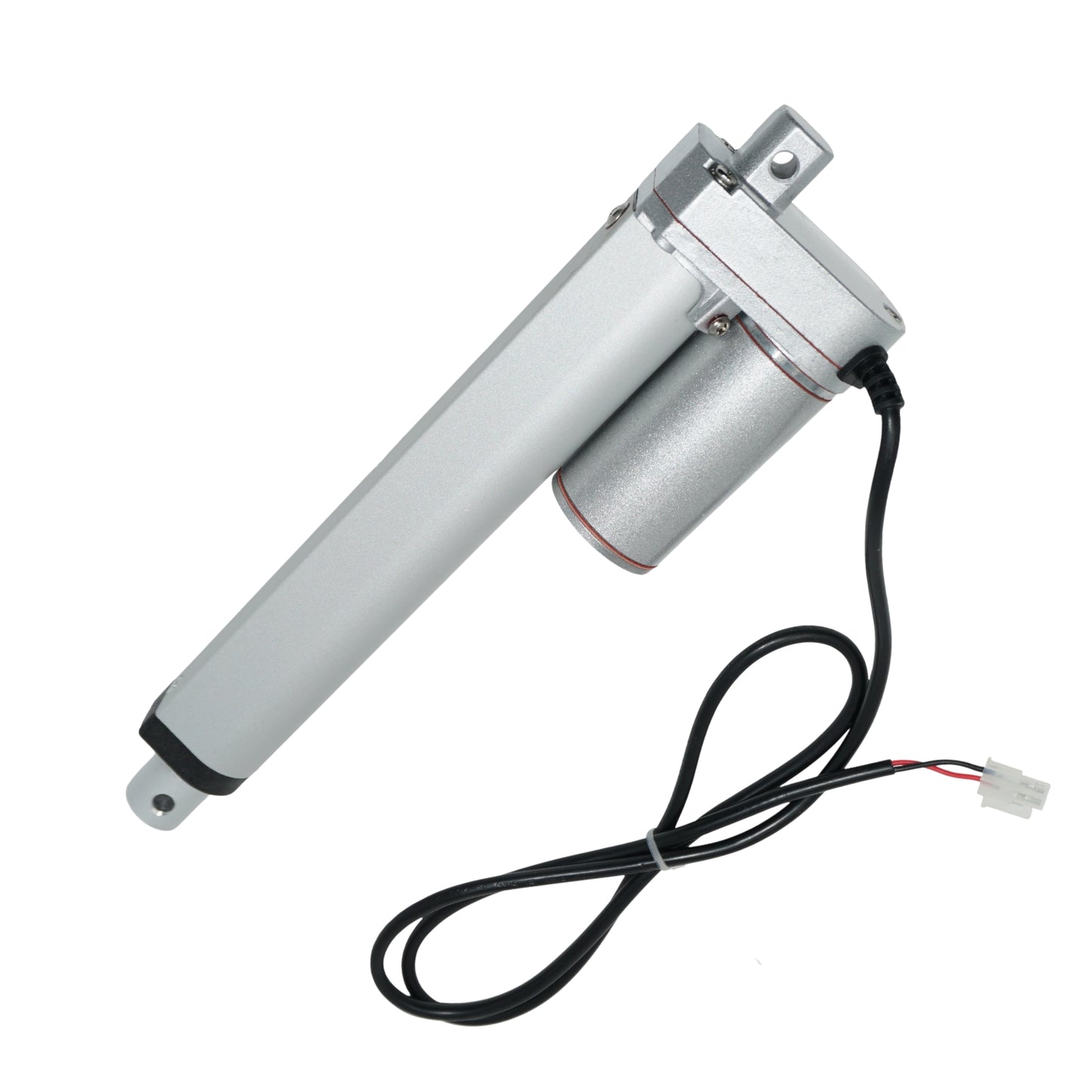

Connector:	Molex Mini-Fit Jr 2-Pin
Front Mounting Hole Size:	0.25"
Rear Mounting Hole Size:	0.25"
Actuator Type:	Mini
Motor Type:	Brushed DC Motor
Screw Type:	ACME
Stroke Rod Material:	Aluminum Alloy
Housing Material:	Aluminum Alloy 6062
Gear Material:	Polyformaldehyde (35 lbs Only), Powder Metallurgy Steel Alloy
Certifications:	CE, RoHS
Compatible Mounting Brackets:	BRK-14, BRK-03

Warranty:

18 Months

Length & Weight

Brackets Compatibility

Control Boxes Compatibility

SKU	Subcategory	Stock Actuator Compatibility	Integration Requirements
SKU PA-14	Subcategory Input 12 VDC	Stock Actuator Compatibility PA-25, PA-28, PA-30, PA-31, PA-33, PA-35, PA-CB1-4-12VDC	Integration Requirements Please pay attention to the current draw and refer to the product datasheet of each model for the voltage and current rating. For more information, feel free to contact our team of engineers and we'll be happy to assist you.
SKU	Subcategory Input 24 VDC	Stock Actuator Compatibility PA-CB1-4-24VDC	Integration Requirements

Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality You Can Trust – Learn More

Data Sheets

PA-14 User Manual

User Manual for PA-14

View

2D/3D models

3D Models

Different stroke lengths of models are available upon request, please email us at: sales@progressiveautomations.com

Knowledge base

Video & Articles

Videos

How to Pick the Right Power Supply for Your Linear Actuator

September 29, 2021Adam Morissette

It is very important to pick the right power supply for your electric linear actuator. You can ha...

Learn more

Photo of a group of people with automated concert wings

Customer Project: Automated Concert Wings

May 27, 2020Loureal Agustin

Idea Generation Brian Szeredy and Brian Scanlon, also known as The Brian’s, have been building sh...

Learn more

FAQ

Why is the PA-01 a better alternative to the PA-14?

The PA-01 actuator is a next-generation upgrade to the PA-14, offering enhanced performance, improved durability, and lower operating noise and vibration. It delivers higher dynamic load capacities—up to 225 lbs compared to the PA-14’s 150 lbs—and operates at faster speeds, reaching up to 3.54"/sec. The PA-01 maintains the same mounting size and length for seamless replacement and offers optional Hall effect feedback for applications requiring precise position control. With an upgraded IP65 ingress protection rating (versus IP54 on the PA-14), the PA-01 is better suited for demanding environments while maintaining full stroke range compatibility from 1" to 40".

What are the typical use cases for the PA-14 Mini Linear Actuator?

The popular PA-14 mini linear actuator use cases include home automation, automotive adjustments, compact robotics, and industrial automation, where moderate force in a compact actuator size is required.

What types of feedback options are available for the PA-14 actuator?

The PA-14 is available as a feedback actuator under model PA-14P, providing potentiometer feedback for applications requiring actuator monitoring.

Is the PA-14 compatible with Arduino or other control systems?

Yes, the PA-14 is a plug-and-play linear actuator that can be integrated with various control boxes that accept the 2-pin molex connector while having simple 2-wire brushed DC motor operation for easy custom control setups.

What mounting brackets are compatible with the PA-14 and how do they simplify installation?

The PA-14 is compatible with either the BRK-14 or BRK-01-U brackets for the front and rear ends while offering installation options for the shaft housing through the BRK-03 (stroke lengths that are 2" or above). These brackets simplify installation by offering secure and flexible mounting solutions that come with all the necessary screws and pins for quick installation.

Can the PA-14 actuator be customized to fit specific stroke length or force requirements?

Yes, the PA-14 can be custom ordered for specific actuator stroke length options and different force ratings than the standard model.

Voltage	12 VDC	12 VDC	12 VDC	24 VDC	24 VDC
Dynamic Force	35 lbs	50 lbs	150 lbs	50 lbs	150 lbs
Static Force	35 lbs	50 lbs	150 lbs	50 lbs	150 lbs
Speed - No Load	2.00"/sec	1.14"/sec	0.37"/sec	1.14"/sec	0.37"/sec
Speed - Full Load	1.38"/sec	0.83"/sec	0.28"/sec	0.83"/sec	0.28"/sec
Current - No Load	1.0 A	1.0 A	1.0 A	0.5 A	0.5 A
Current - Full Load	5.0 A	5.0 A	5.0 A	2.5 A	2.5 A

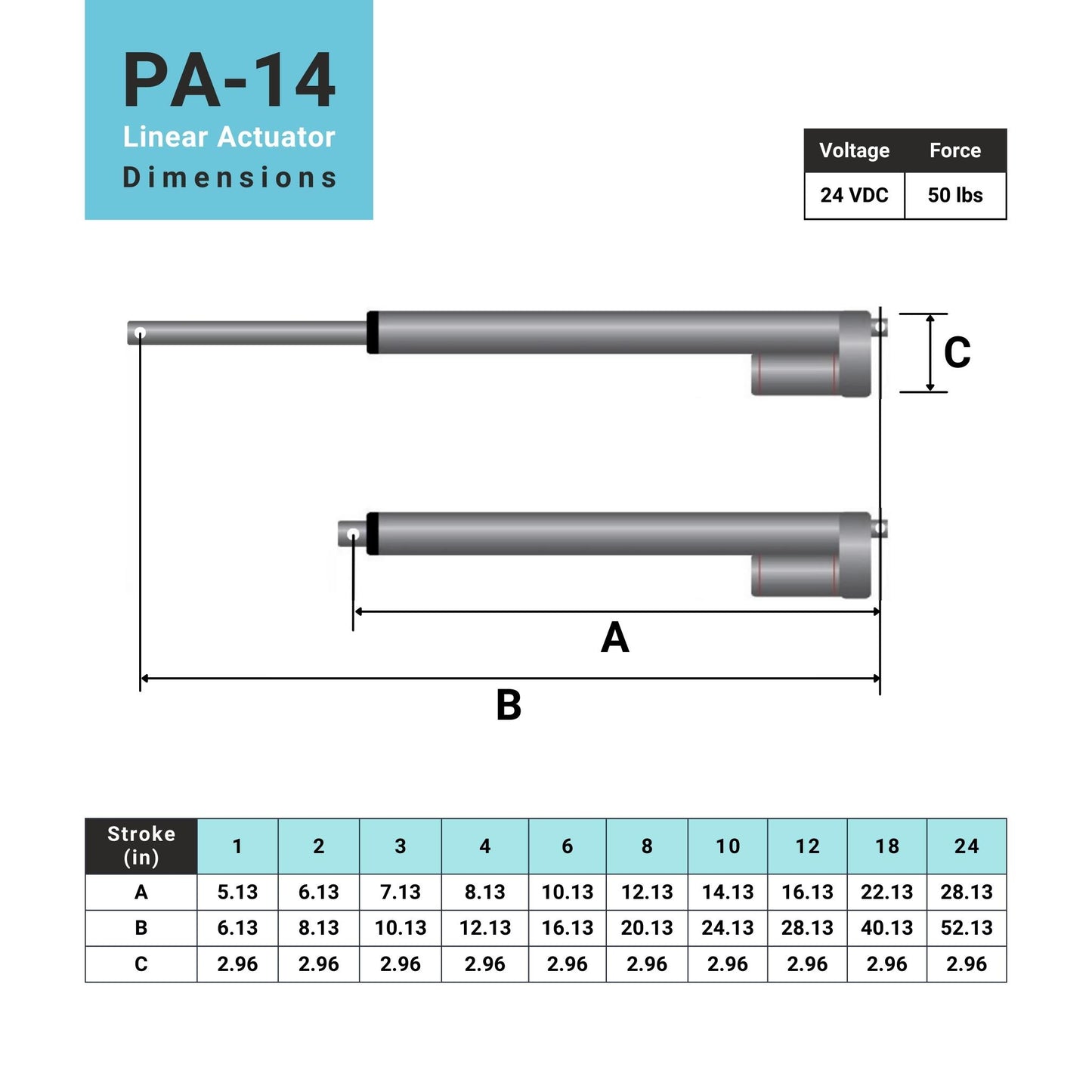

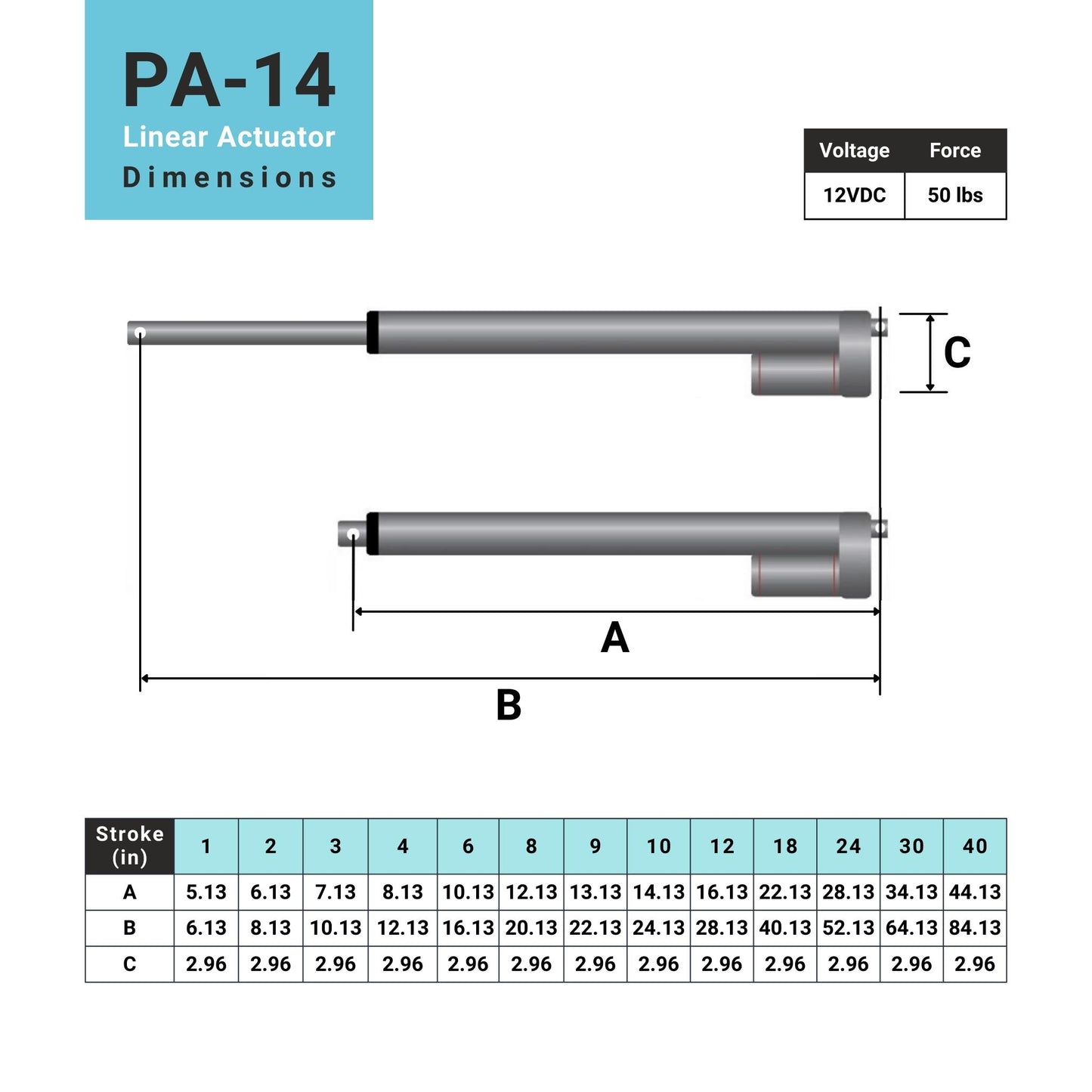

Stroke Length	Retracted Hole-to-Hole Length	Extended Hole-to-Hole Length	Weight
1"	5.13"	6.13"	1.50 lbs
2"	6.13"	8.13"	1.60 lbs
3"	7.13"	10.13"	1.70 lbs
4"	8.13"	12.13"	1.75 lbs
6"	10.13"	16.13"	1.95 lbs
8"	12.13"	20.13"	2.10 lbs
9"	13.13"	22.13"	2.25 lbs
10"	14.13"	24.13"	2.30 lbs
12"	16.13"	28.13"	2.50 lbs
18"	22.13"	40.13"	3.00 lbs
24"	28.13"	52.13"	3.50 lbs
30"	34.13"	64.13"	4.00 lbs
40"	44.13"	84.13"	4.85 lbs

Product name	Actuator Model	Compatible Mounting Brackets	Optional Accessories
Mini Linear Actuator	PA-14	BRK-14 BRK-03 (stroke lengths that are 2" or above)
