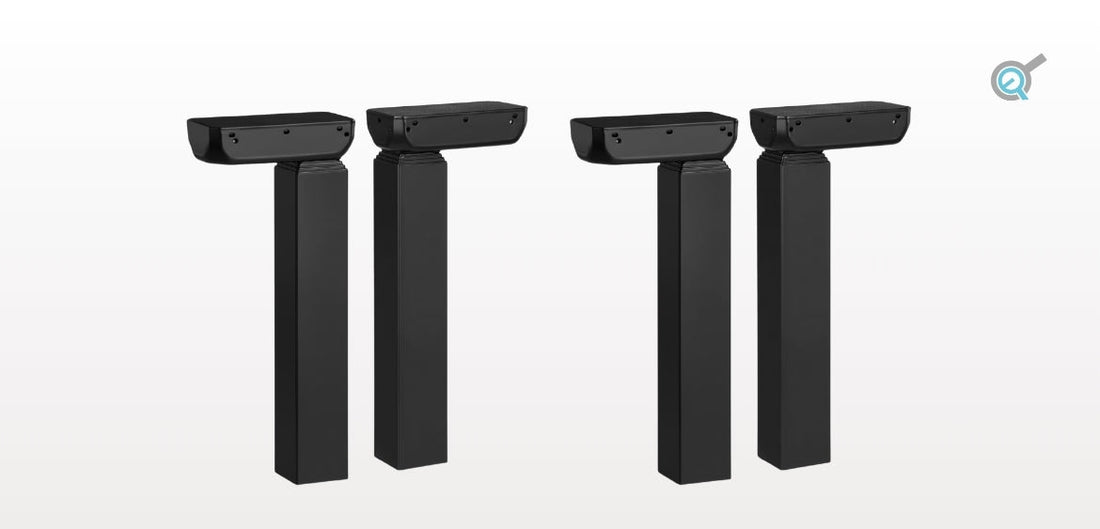

When choosing a lifting column, it’s often a balancing act between compact design, long stroke length, and reliable performance. To keep up with customer demands and the rising growth of new project ideas, our team continues to develop, innovate, and launch new lifting column releases in various shapes and sizes that can meet your needs. Purpose-built with a 4-stage telescopic design, a durable steel frame, and precise positional feedback, the LG-14 lifting column offers a versatile solution for a wide range of home & office automation projects. In this article, we will be covering an overview of the latest product launch in our line-up, our 4-Stage Telescopic LG-14 Lifting Columns!
Why Choose the LG-14 Column?
As our most space-saving lifting solution, the LG-14 lifting column offers a 4-stage telescopic square column design, which provides a compact retracted height of 18.1” while still extending to 45.3”. This, combined with a 67 lbs lifting capacity per column, makes it an ideal choice for applications that demand both space efficiency and extended reach. Another highlight is its stylish black powder-coated finish. Beyond its modern appearance, this coating enhances surface protection, ensuring durable lifting columns in tough environments.
Easy Installation and Support
Every LG-14 lifting column set comes with an instructional PDF manual, complete with wiring diagrams, operational guidance, and troubleshooting procedures. With straightforward plug-and-play installation and quiet operation < 50 dB, it’s designed to integrate seamlessly into your project. Backed by our 84-month lifting column warranty, we are committed to delivering top-quality products to ensure durability, performance, and service that serve you well over the years.
Key Features & Specifications
- Durable Construction: Steel frame for long-lasting strength and stability.
- High-Performance: 67 lbs dynamic and 270 lbs static lifting capacity while maintaining a 1.97”/sec full load speed.
- Telescopic Design: A square 4-stage design provides a 27.2" stroke length in a compact package, traveling a height range from 18.1" to 45.3".
- Hall Effect Feedback: Integrated hall effect sensors allow for precise movement, synchronization, and memory presets when paired with compatible control systems.
- Protective Finish: The black powder coat enhances durability while giving the LG-14 lifting column a clean, modern look.
Customizable Lifting Configurations of Modular Lifting Columns
Similar to how our modular lifting columns are configured as a system, the LG-14 lifting columns are selected and paired with our compatible remotes and control boxes. In just 4 easy steps, you can customize the configuration of our modular lifting columns according to your application needs.
Control Box Compatibility
Each of our FLTCON control boxes offers programmable functions, safety features, and other user settings that can be accessed through the connected remote control. When multiple lifting columns are connected to a compatible control box, the control box ensures the synchronization of the motors so they move together at the same speed.
|
Control box |
Input Voltage |
Number of Legs |
|
110 VAC |
1 |
|
|
110 VAC |
2 |
|
|
24 VDC |
2 |
|
|
110 VAC |
3 |
|
|
110 VAC |
4 |
Variety of Remote Control Options
As part of our new range of modular lifting columns, the LG-14 lifting columns come with a wide range of remote options to choose from without having to order a second remote separately. Enjoy all the unique features of our different programmable wired remotes. For wireless controls, we also offer the RF-controlled RT-14 wireless remotes and RT-BT1 Bluetooth dongle to connect compatible control boxes to the Progressive Motion app on Android or iOS. Enjoy seamless, remote operation and enhanced control right from your smartphone!
Applications and Use Cases
With its telescopic compact design, robust static lifting capacity, and precise motion control, the LG-14 lifting column is suitable for a variety of home and office automation, such as:
Many projects, such as the examples above, are configured in such a way that a platform is attached to our lifting columns so that it sits flush with the surrounding area to stay hidden for the surprise factor when activated. We have many success stories of customer projects that used our other modular lifting columns, which offer several features similar to what is now available in the LG-14 lifting column, and we are excited to see all the new possibilities the 4-stage compact designs will bring in the future!
FAQ
What makes the LG-14 different from other lifting columns?
-The LG-14 lifting column is our only model that has a 4-stage telescopic design for the most compact ratio of retracted height to the stroke length of travel; 18.1” retracted and a travel distance of 27.2”.
What is the lifting capacity and speed of the LG-14?
-Each LG-14 lifting column has a lifting capacity of 67 lbs dynamic and 270 lbs static with a travel speed of 1.97”/sec at full load.
Where can the LG-14 lifting column be used?
-The quiet operation and reliable performance of the LG-14 lifting columns in a compact design can handle a variety of home and office automation setups.
Does the LG-14 support Hall effect feedback for precision control?
-Yes, the LG-14 lifting column comes with built-in hall effect sensors that output positional feedback for precision control with the compatible control boxes.
How can I purchase or get a quote for the LG-14 lifting column?
-To buy LG-14 columns, purchases can be made directly on our website. To request a quote, feel free to contact our customer support team at sales@progressiveautomations.com.
IN SUMMARY
The LG-14 combines a 4-stage telescopic design, durable steel construction, and precise hall effect feedback to deliver exceptional versatility in a stylish, compact design. Configure anywhere from one to four columns with the FLTCON control boxes and create a modular system with reliable performance for a wide range of home and office automation projects.
We hope you found this as informative and interesting as we did, especially if you have automation projects that require versatile lifting columns with a telescopic compact design. If you have any queries or wish to discuss our products further, please do not hesitate to reach out to us! We are experts in what we do and will be happy to assist in any way we can.
