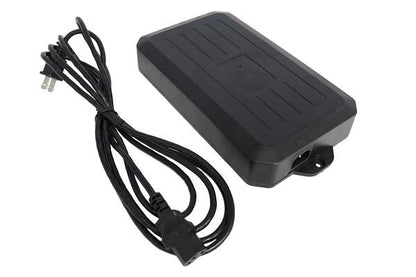

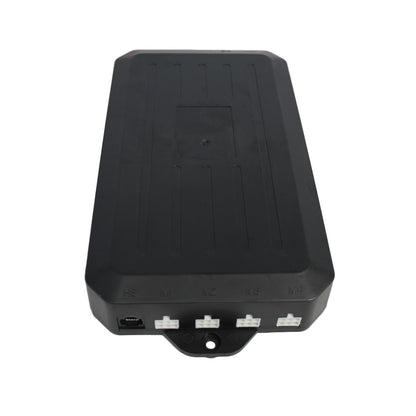

110 VAC - 24 VDC - 4-Sync Hall Effect Control Box with Presets
  • 110 VAC - 24 VDC - 4-Sync Hall Effect Control Box with Presets
  • 110 VAC - 24 VDC - 4-Sync Hall Effect Control Box with Presets
  • 110 VAC - 24 VDC - 4-Sync Hall Effect Control Box with Presets
  • 110 VAC - 24 VDC - 4-Sync Hall Effect Control Box with Presets Dimensions in inches
  • 110 VAC - 24 VDC - 4-Sync Hall Effect Control Box with Presets Wiring Diagram
  • 110 VAC - 24 VDC - 4-Sync Hall Effect Control Box with Presets Pin Out Diagram
1 6

110 VAC - 24 VDC - 4-Sync Hall Effect Control Box with Presets

110 VAC - 24 VDC - 4-Sync Hall Effect Control Box with Presets

Model: FLTCON-4

In stock
Ships within 24 hours
Volume Discount
1-6 units $246.99 USD
7-9 units $234.99 USD
10-19 units $222.99 USD
20+ units $197.99 USD
50+ Get a Quote
$246.99 USD
$246.99 USD
Sale Sold out
IMPORTANT: You must fill out this form if you're purchasing an FLTCON, in order to confirm your programming requirements. Failure to complete this form may result in a delay to your order.
  • Linear Actuator Calculator
  • Get Free Actuator Guide
View full details
Description
FLTCON-4 Specifications

The FLTCON-4 is a 4-channel hall effect control box, designed to function with four identical 24VDC hall effect linear actuators and lifting column systems. Our PA-03, PA-04, and PA-18 linear actuators can be customized to have a hall effect feedback sensor as well as a 24VDC motor. Our PA-04-HS units are readily available in 24 VDC and come standard with the hall effect sensor required for the FLTCON series control boxes.

Using the wired remote with presets, the user can extend, stop, and retract the linear actuators in sync, as well as program up to 4 preset positions with the RT-11 handset remote (sold separately). It can also act as a replacement control box for our FLT-04 table lift set.

Take your FLTCON-4 control box to the next level with wireless connectivity. Simply plug in the RT-BT1 Bluetooth dongle and connect your system to the Progressive Motion app on Android or iOS. Enjoy seamless, remote operation and enhanced control — right from your smartphone!

The FLTCON series does not include a wired remote, please see our Hand Remote section to choose the most suitable remote for the application.

Please contact sales@progressiveautomations.com for programming requirements for this product.
FLTCON-4 Compatibility Chart
Overview
FLTCON-4 Specifications

The FLTCON-4 is a 4-channel hall effect control box, designed to function with four identical 24VDC hall effect linear actuators and lifting column systems. Our PA-03, PA-04, and PA-18 linear actuators can be customized to have a hall effect feedback sensor as well as a 24VDC motor. Our PA-04-HS units are readily available in 24 VDC and come standard with the hall effect sensor required for the FLTCON series control boxes.

Using the wired remote with presets, the user can extend, stop, and retract the linear actuators in sync, as well as program up to 4 preset positions with the RT-11 handset remote (sold separately). It can also act as a replacement control box for our FLT-04 table lift set.

Take your FLTCON-4 control box to the next level with wireless connectivity. Simply plug in the RT-BT1 Bluetooth dongle and connect your system to the Progressive Motion app on Android or iOS. Enjoy seamless, remote operation and enhanced control — right from your smartphone!

The FLTCON series does not include a wired remote, please see our Hand Remote section to choose the most suitable remote for the application.

Please contact sales@progressiveautomations.com for programming requirements for this product.
FLTCON-4 Compatibility Chart
Product Specifications
Input Voltage:
110-220 VAC
Unit Weight:
2.1 lbs
Output Power:
24 VDC
Current:
6.25A (Per Channel)
Size:
10.1" x 1.8" x 5.8"
Warranty:
18 Months
Control Boxes Compatibility
Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality You Can Trust – Learn More

Data Sheets

FLTCON-4 Data Sheet
FLTCON-4 Data Sheet

FLTCON-4 Data Sheet

View
Knowledge base
Video & Articles
Videos
Related blog articles:
FLTCON Control boxes

How To Utilize FLTCON-2 & FLTCON-4 Control Boxes?

Gregory Kimbell

Our FLTCON control box series is primarily used to operate our table lifts and lifting column set...

Learn more
New PA-41 Control System: Controlling Multiple Linear Actuators

New PA-41 Control System: Controlling Multiple Linear Actuators

Nathan Bong

Many applications that operate with electromechanical systems require a single control system tha...

Learn more
Bluetooth dongle and Progressive Motion app

Ultimate Control at Your Fingertips: The Bluetooth Dongle and Progressive Motion App

Nataliia Borysko

Imagine transforming your workspace or industrial setup with just a tap on your smartphone! Progr...

Learn more
FAQ
What actuators are compatible with the FLTCON-4 and how do I ensure proper synchronization for four channels?

Ensure FLTCON-4 compatibility by selecting actuators that have hall effect sensor feedback, 24 VDC operation, and current draw no higher than 6.25A each. To ensure proper synchronization, the setup requires 4 identical actuators paired together, similar wire length, and a reset procedure for initial setup. For more information, check our Control Boxes Compatibility Chart.

How can I use memory presets with the FLTCON-4 and what remote is needed to access this functionality?

The RT-11 recommended remote is the most popular for our FLTCON control boxes, which offers four memory presets, basic up/down keypads, and an LED display. With an RT-11 handset remote, move to a desired position using the UP and DOWN buttons, and then press a preset key to save; tap this preset key to recall the desired position.

Can I control the FLTCON-4 system wirelessly and what setup is needed for Bluetooth connectivity?

Wireless actuator control is possible with the RT-14 Wireless Remote and RF Receiver and/or use with our RT-BT1 Bluetooth Dongle. The RT-BT1 connects compatible FLTCON control boxes to your smartphone via the Progressive Motion app, available for both Android and iOS platforms.

Is the FLTCON-4 compatible as a replacement for FLT-04 table lifts, and what should I consider during the upgrade?

Assuming the FLT-04 table lift was already previously using an FLTCON-4 with the same pinouts, mounting, power requirements, and programming requirements, a newer FLTCON-4 could be used as a replacement control box. For more information on legacy table lift upgrades, reach out to our customer support team at sales@progressiveautomations.com.

What are the power input and actuator output specs for the FLTCON-4 and how should the system be wired?

The FLTCON-4 accepts 110-220 VAC input power and has 24VDC actuator output ports that handle up to 6.25A per channel. To ensure safe operation, follow the 4-channel control box specs by wiring four matching 24V hall effect actuators that have similar wire length and do not draw over 6.25A of current each.
