12 VDC Control Box - 2 Channel - 30A - Parallel Control - Speed Control - Wireless Remote
12 VDC Control Box - 2 Channel - 30A - Parallel Control - Speed Control - Wireless Remote
Model: PA-25
Couldn't load pickup availability

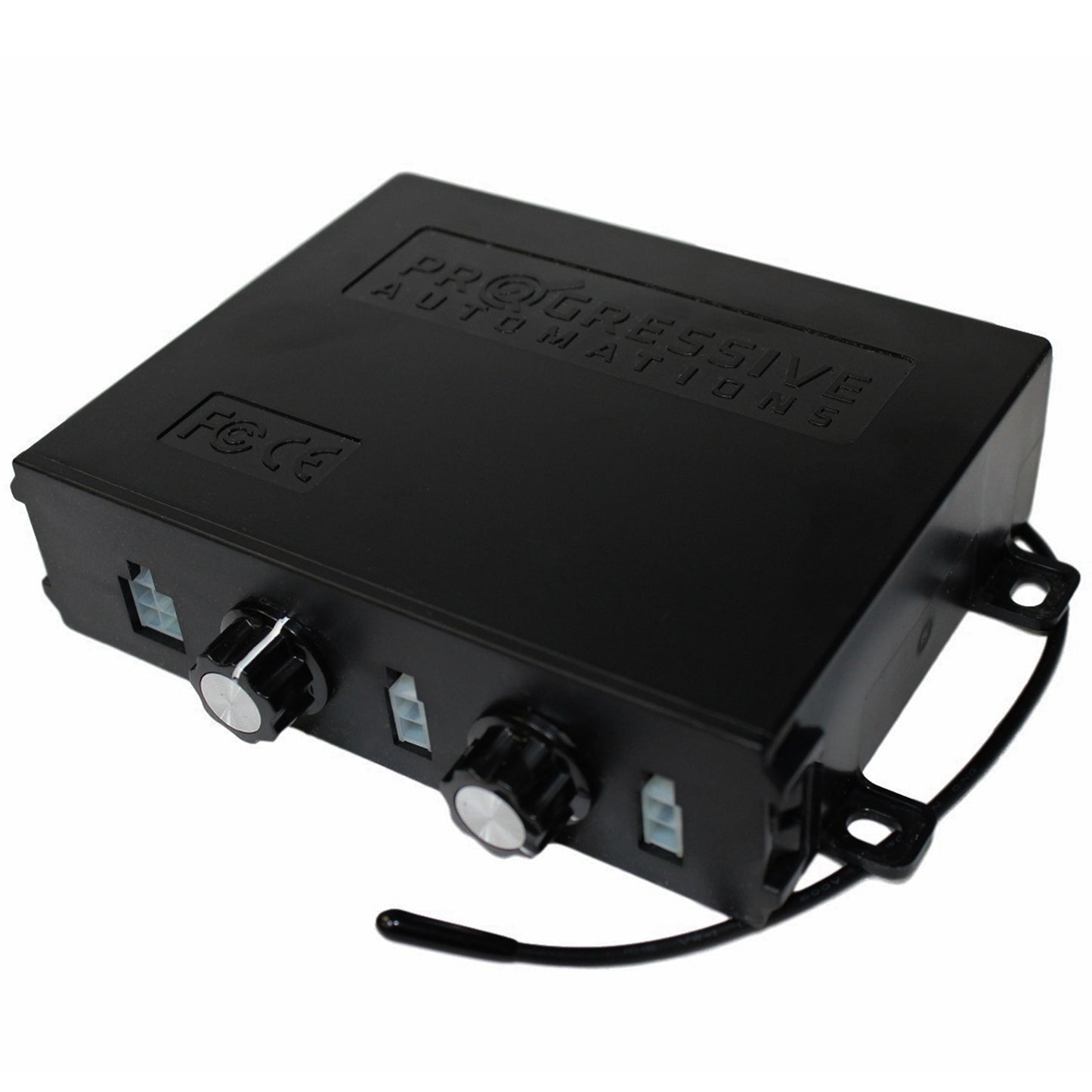

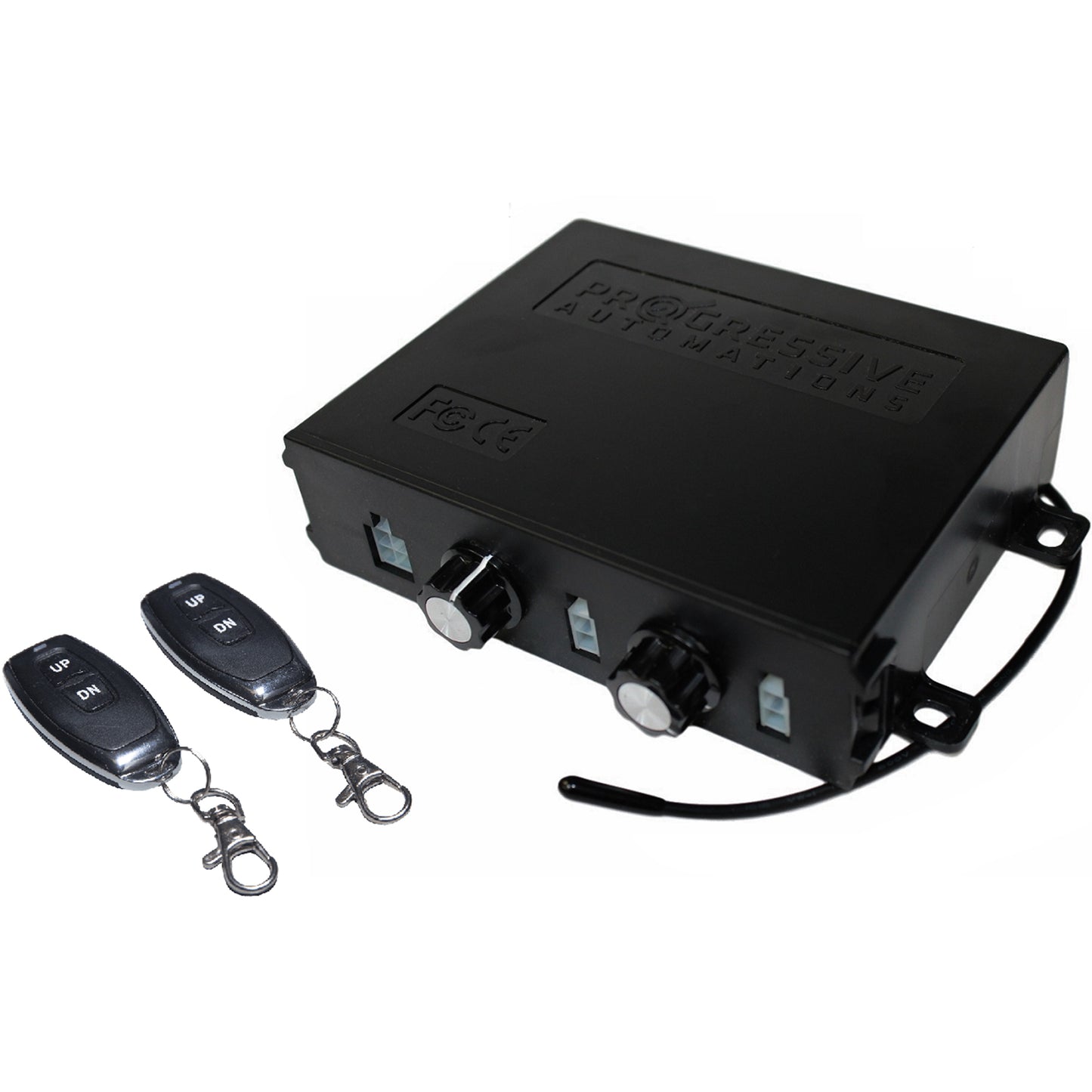

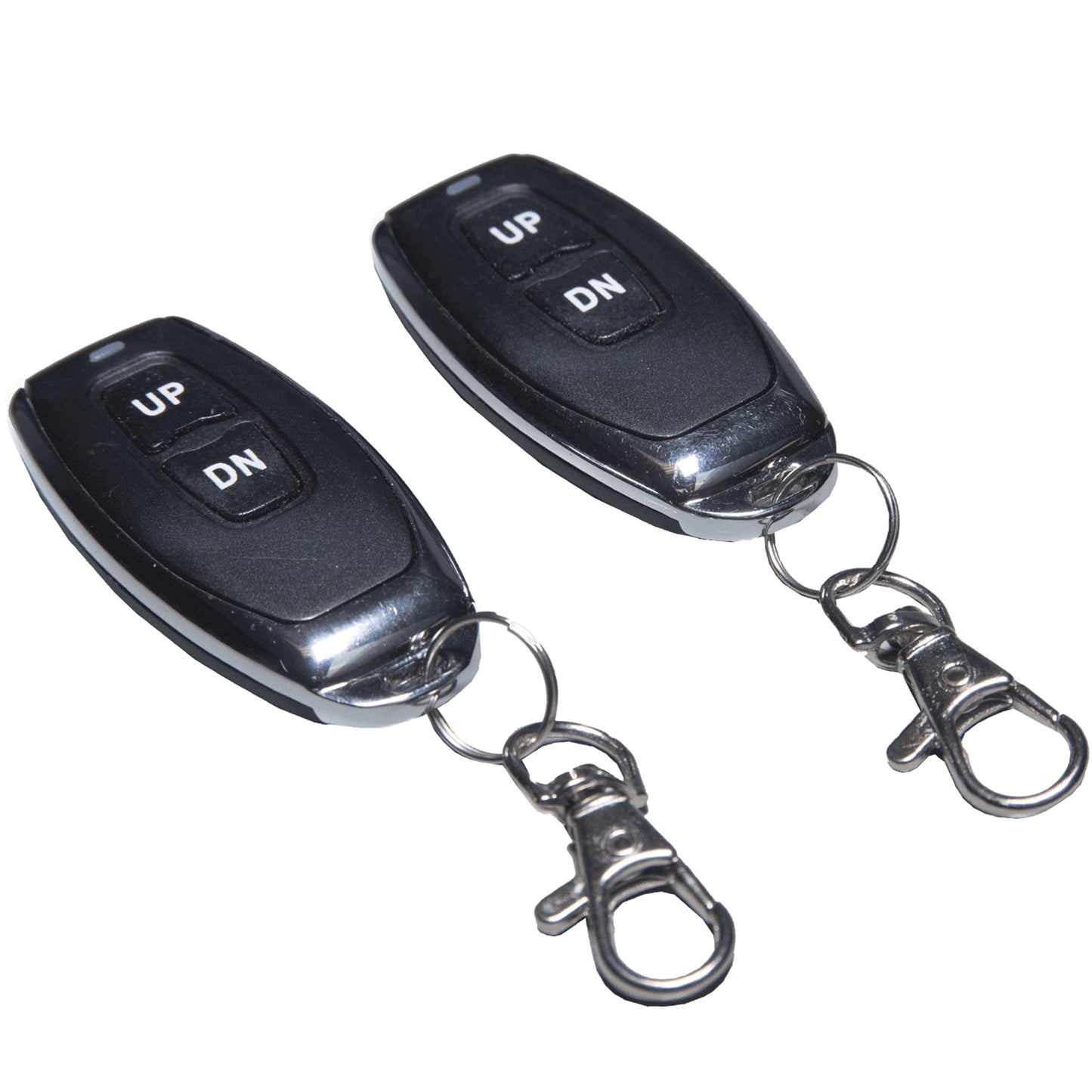

The PA-25 dual channel control box allows for speed control of linear actuators. Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 30-50 feet away (open air). Using the onboard speed control knobs, each unit connected to the PA-25 can have the speed adjusted from 0-100%. The speed will be affected in both the extend and the retract directions. The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

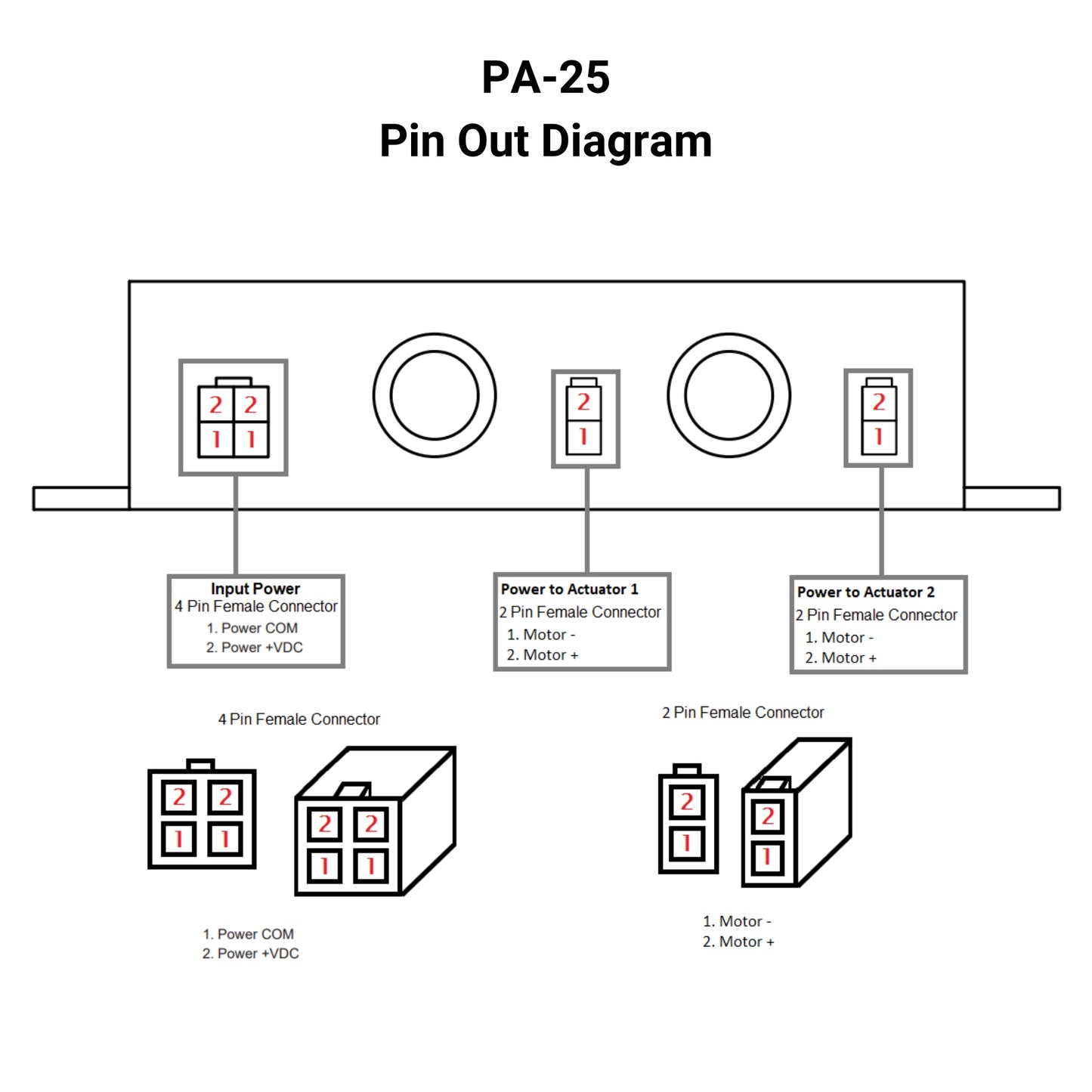

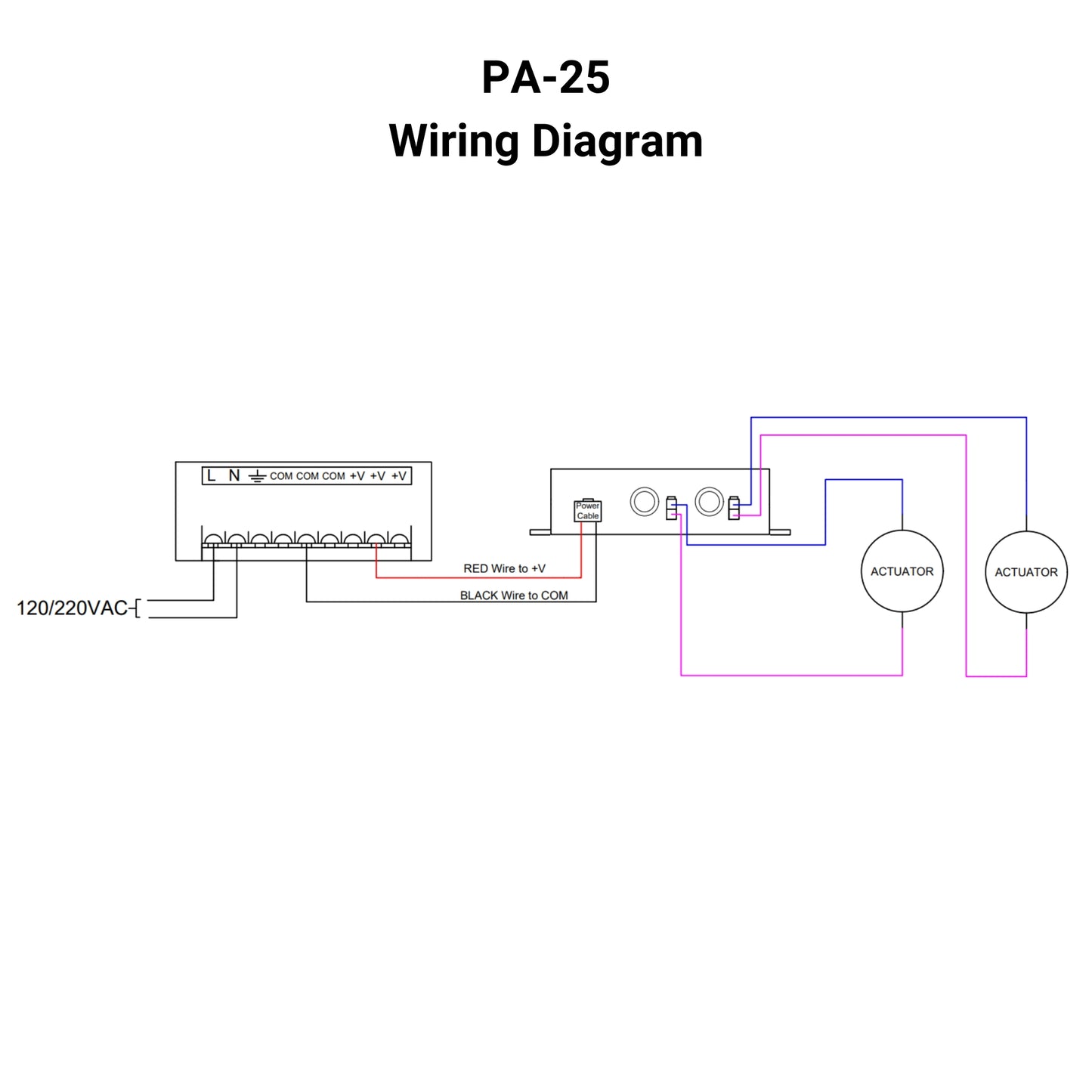

Using the included wire harness, connect the linear actuators to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-25 is designed to handle a maximum of 15A per channel.
Please see the PA-25 Data Sheet for information about controls, wiring, and troubleshooting.
*Parallel control of linear actuators at 12 VDC. Each unit connected to the PA-25 can have the speed adjusted from 0-100%. The speed will be affected in both the extend and the retract directions.
The PA-25 dual channel control box allows for speed control of linear actuators. Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 30-50 feet away (open air). Using the onboard speed control knobs, each unit connected to the PA-25 can have the speed adjusted from 0-100%. The speed will be affected in both the extend and the retract directions. The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.
Using the included wire harness, connect the linear actuators to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-25 is designed to handle a maximum of 15A per channel.
Please see the PA-25 Data Sheet for information about controls, wiring, and troubleshooting.
*Parallel control of linear actuators at 12 VDC. Each unit connected to the PA-25 can have the speed adjusted from 0-100%. The speed will be affected in both the extend and the retract directions.
