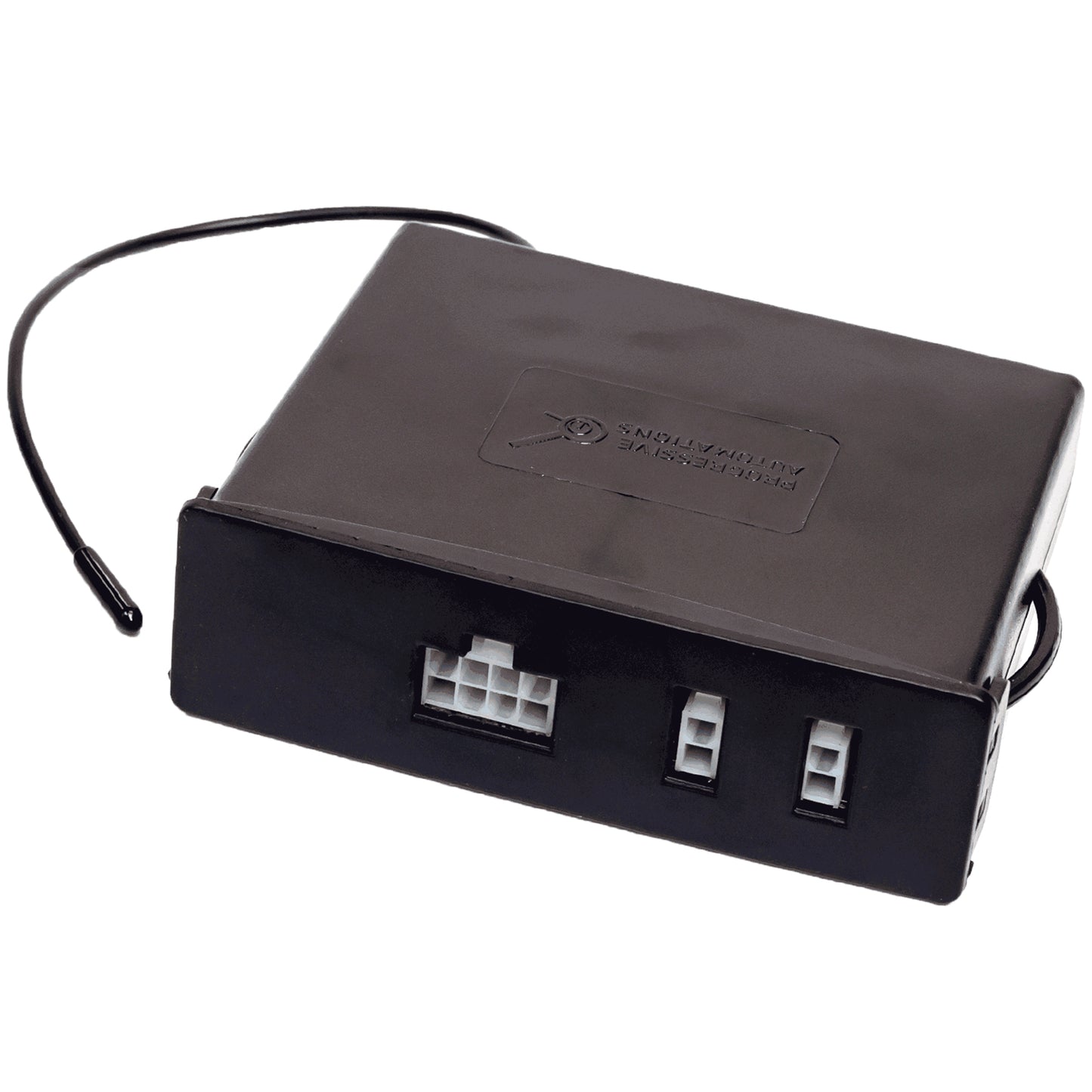

2 Channel Individual Wireless Control Box

Name: 12 VDC Control Box - 2 Channel - 30A - Individual Control - Wireless Remote
Brand: Progressive Automations
SKU: PA-28
Price: 116.99 USD
Availability: InStock

Description

PA-28 Specifications

The PA-28 dual channel control box allows for full individual control of linear actuators. Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 30-50 feet away (open air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

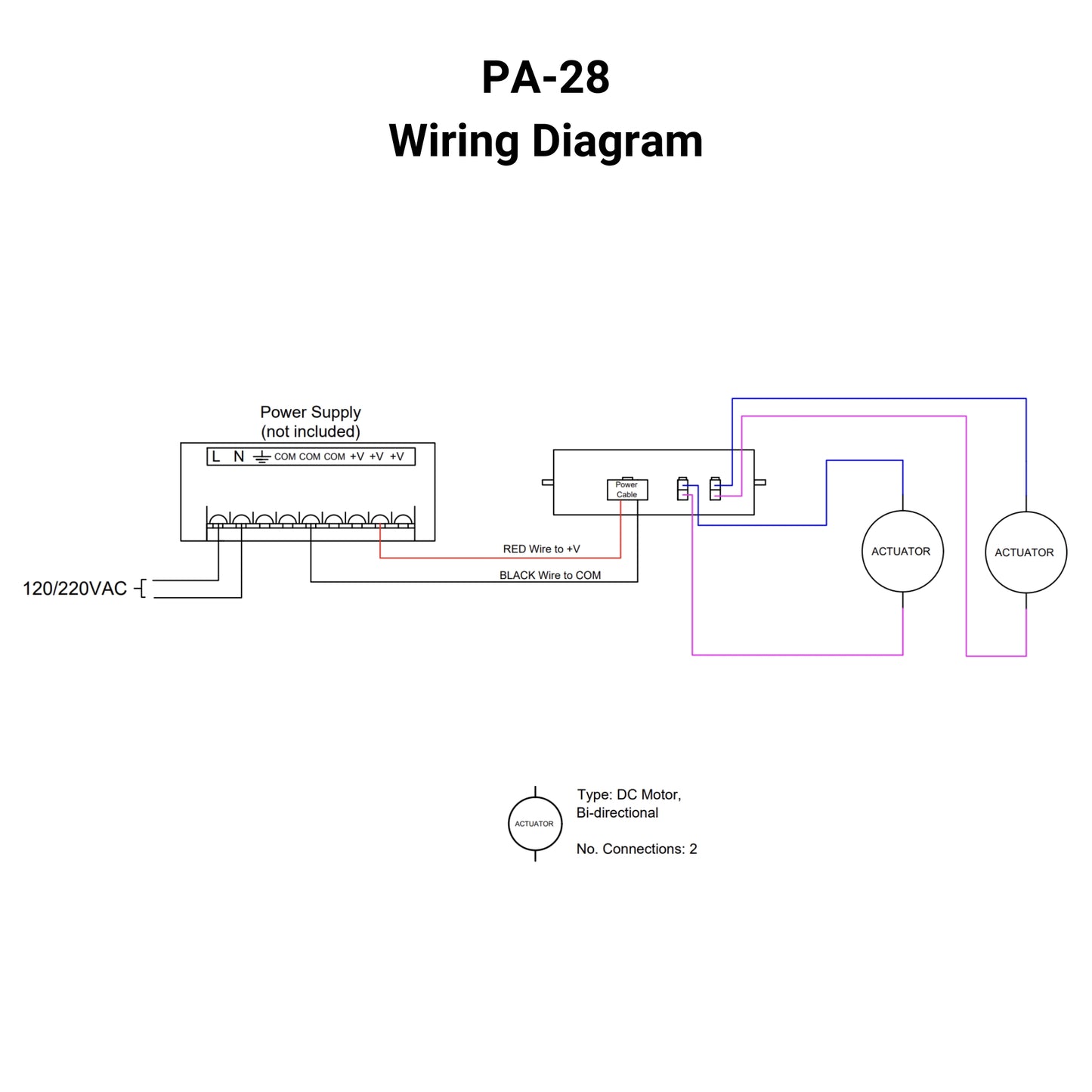

Using the included wire harness, connect the linear actuators to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-28 is designed to handle a maximum of 15A per channel.

Please see the PA-28 Data Sheet for information about controls, wiring, and troubleshooting.

* Individual control of linear actuators at 12 VDC.

PA-28 Compatibility Chart

Overview

PA-28 Specifications

The PA-28 dual channel control box allows for full individual control of linear actuators. Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 30-50 feet away (open air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

Using the included wire harness, connect the linear actuators to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-28 is designed to handle a maximum of 15A per channel.

Please see the PA-28 Data Sheet for information about controls, wiring, and troubleshooting.

* Individual control of linear actuators at 12 VDC.

PA-28 Compatibility Chart

Product Specifications

Control Ability:

2 actuators individually (more actuators can be added)

Input Voltage:

12 VDC

Unit Weight:

1.05 lbs

Output Power:

12 VDC

Current:

15 Amps (each channel)

Kit Includes:

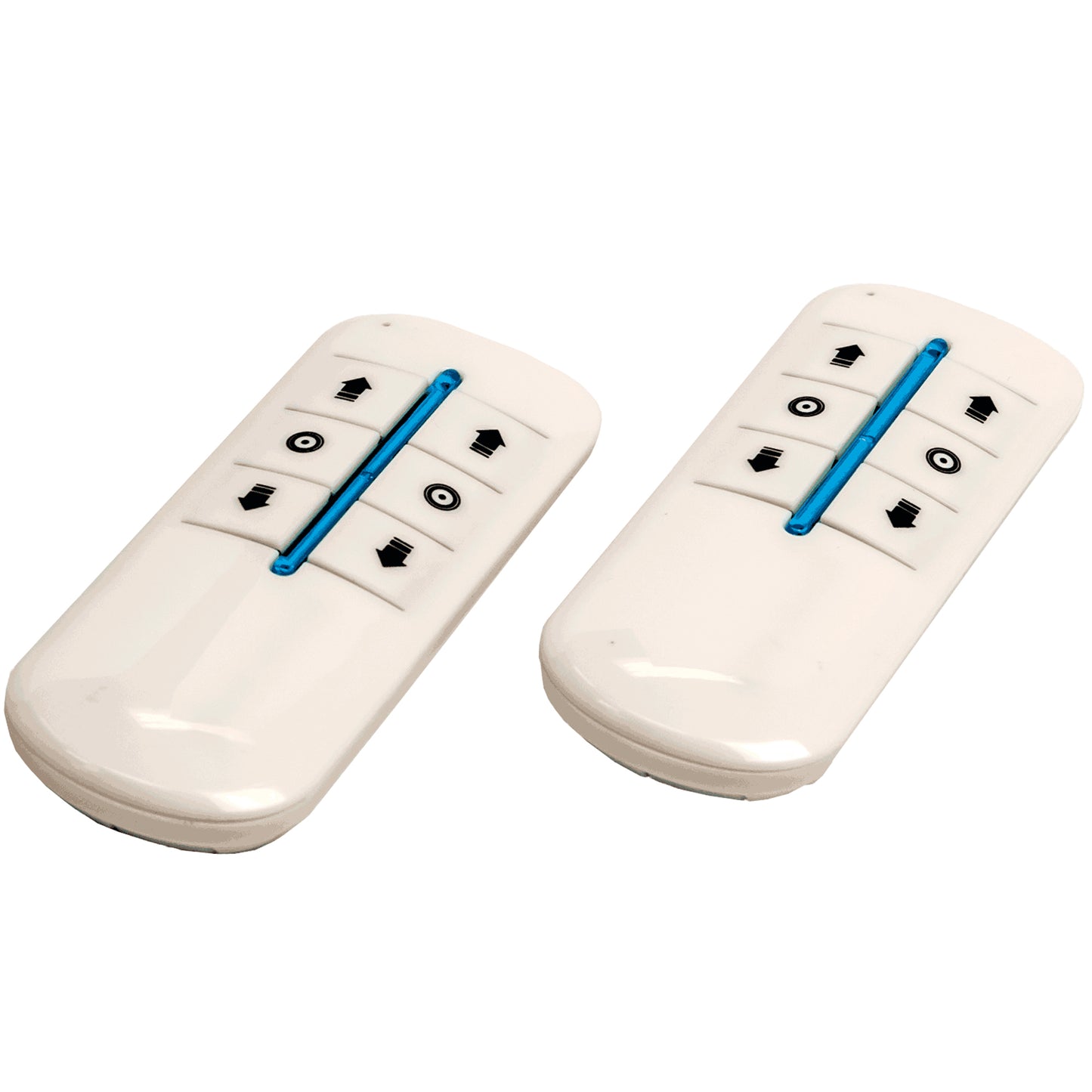

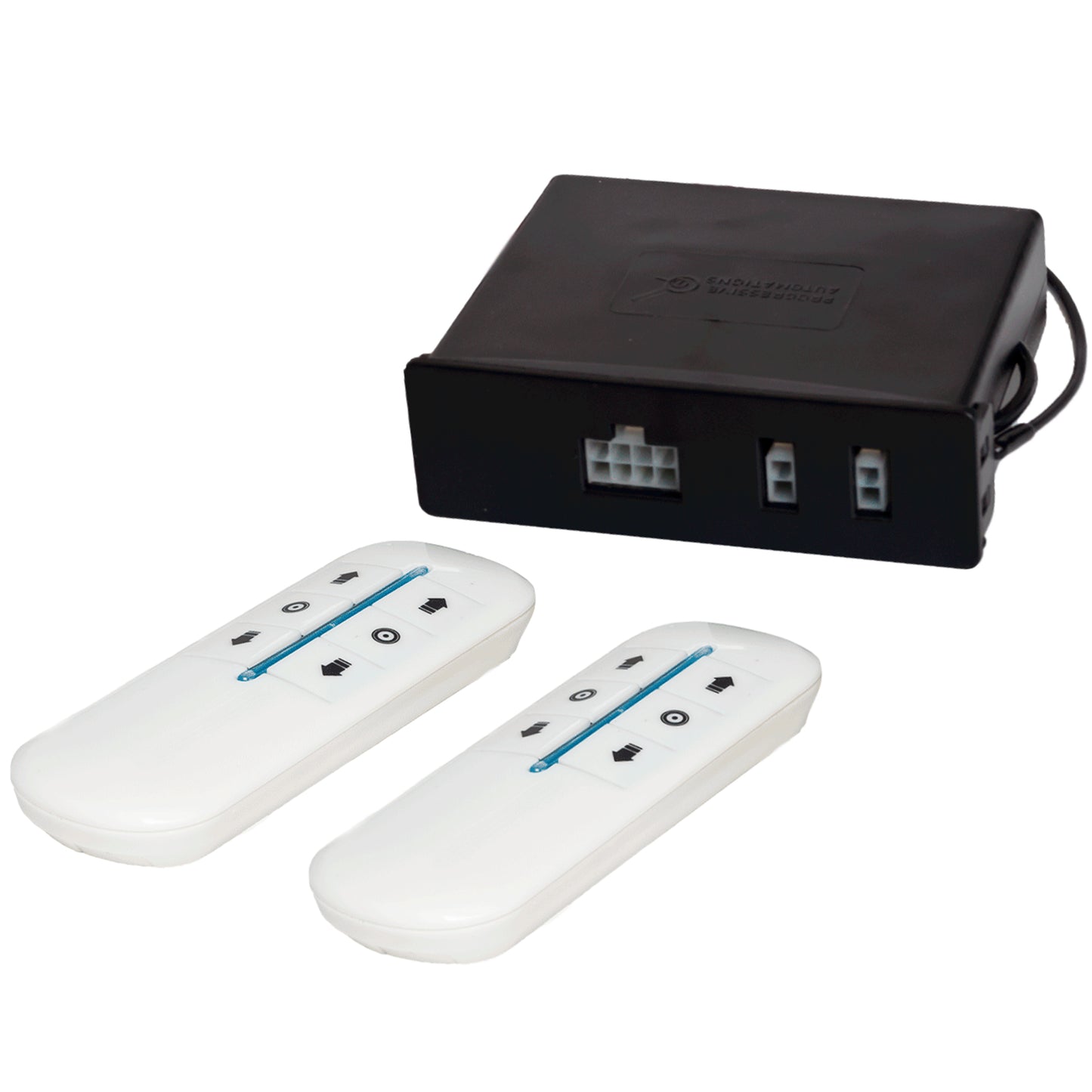

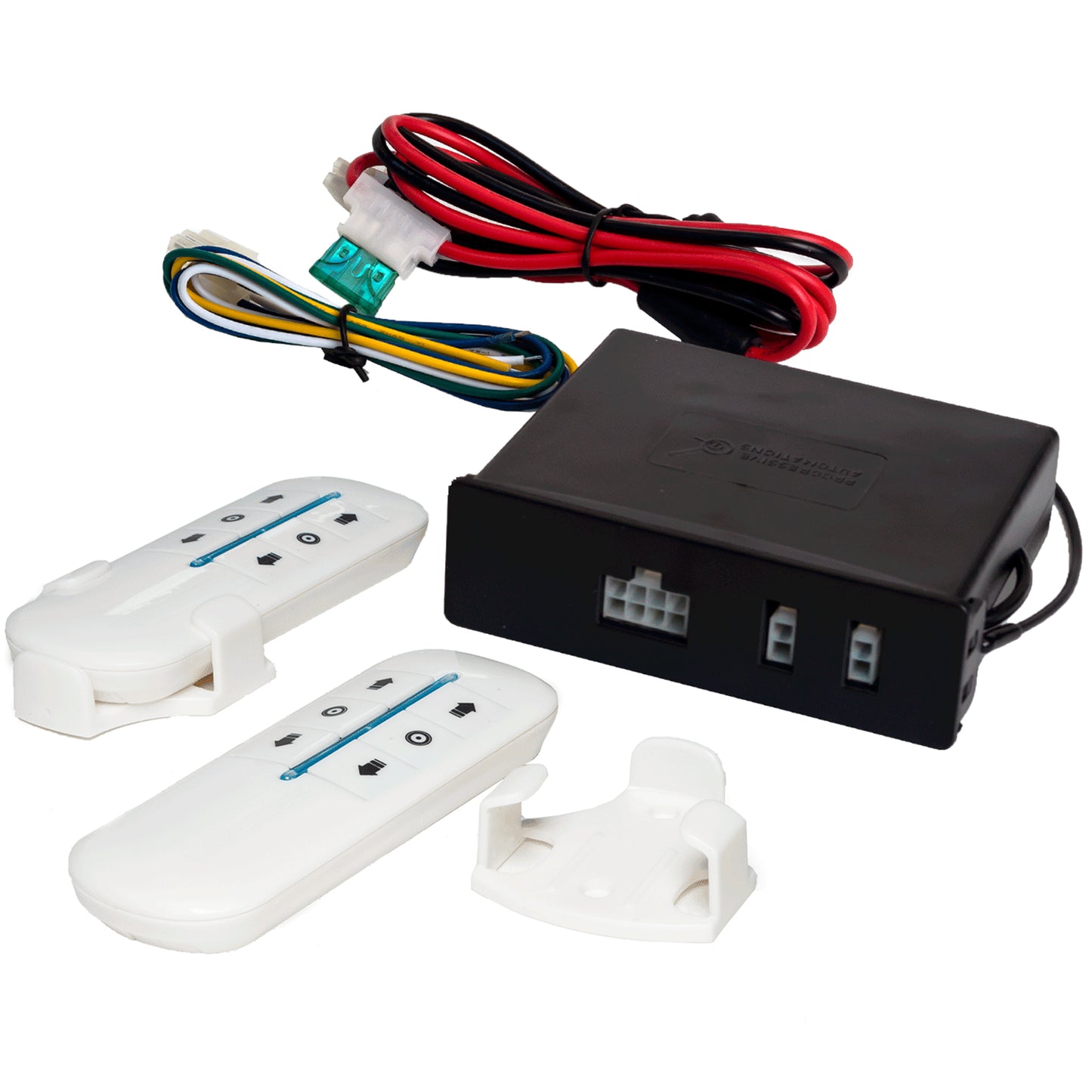

2 hand remotes, 1 control box, remote batteries

Remote Functions:

up, down, pause (both momentary and non-momentary)

Size:

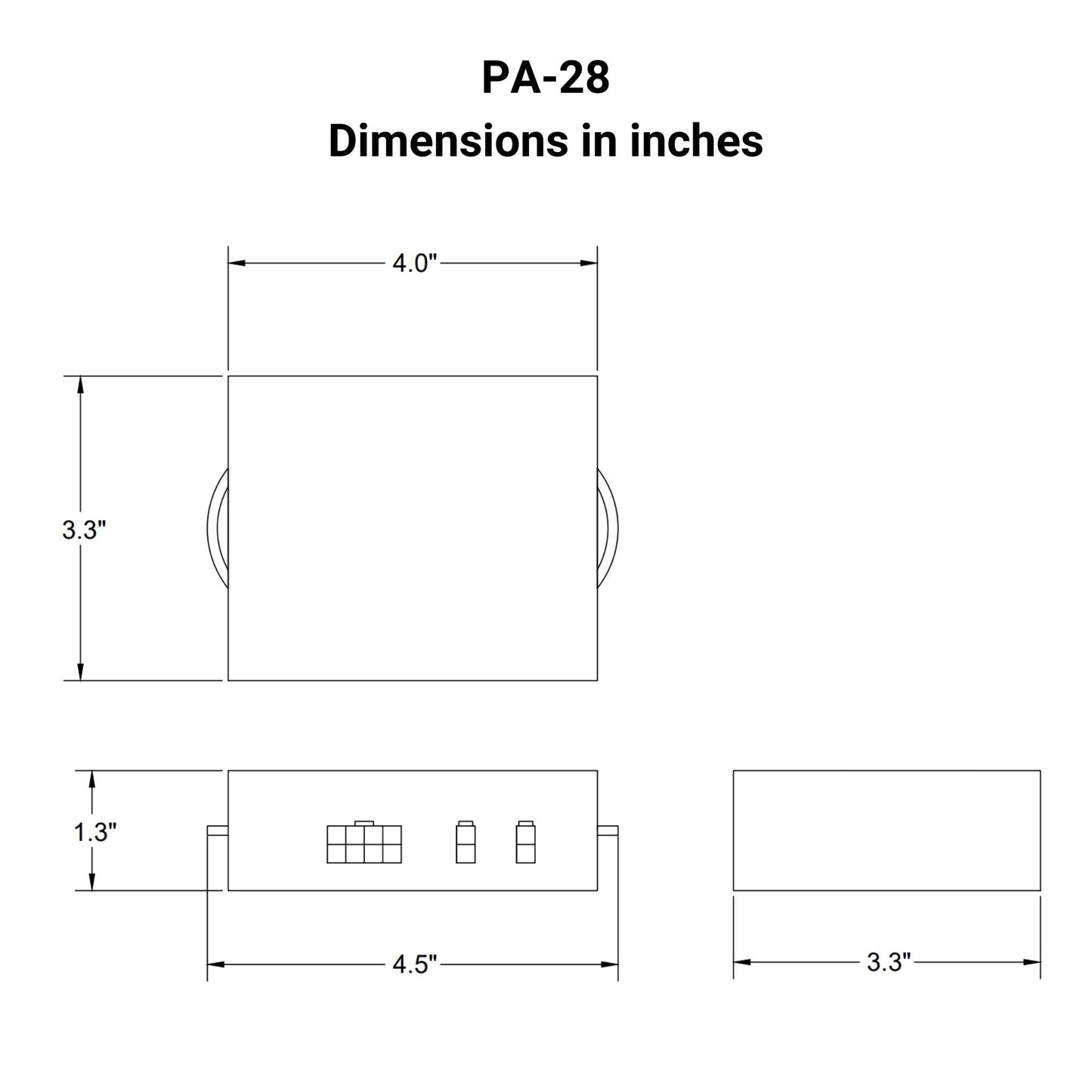

4.5" x 1.3" x 3.3"

AC Power Option:

with AC-15, PS-13-12, PS-20-12, PS-20-12-67, PS-40-12

Warranty:

18 month

Control Boxes Compatibility

Model	Subcategory	Control Boxes Compatibility	Integration Requirements
Model PA-28	Subcategory Output 12VDC	Control Boxes Compatibility PA-14, PA-03, PA-09, PA-04, PA-18, PA-07, (cable modification required), PA-06, PA-10, PA-QR1, PA-01, PA-MC1, PA-ST1, PA-ST4, PA-ST5	Integration Requirements Rated for 15A per channel, individual control of linear actuators.

Technical Information

Following a set of standards is crucial for businesses to ensure their products and services can meet a level of quality that promotes customer satisfaction. At Progressive Automations, we aim for nothing but the best for our customers and strive toward continual improvements. Because of this, we are excited to announce that Progressive Automations is now ISO 9001:2015 certified!

Quality You Can Trust – Learn More

Data Sheets

PA-28 Data Sheet

Data Sheet for PA-28

View

PDF

Knowledge base

Video & Articles

Videos

New PA-41 Control System: Controlling Multiple Linear Actuators

January 30, 2024Nathan Bong

Many applications that operate with electromechanical systems require a single control system tha...

Learn more

Relays to Control High Current Actuator with Low Current Control Box

April 8, 2019Guest Writer

Have you ever faced a situation where you must connect a high current actuator with a low current...

Learn more

DIY Designs to Automate Your Home

March 26, 2021Zuriel Gonzalez

Linear actuators have totally revolutionized the way things move around us. This invention of mod...

Learn more

FAQ

How does individual control work with the PA-28, and what are the benefits over synchronized or parallel control setups?

The PA-28 outputs separate signals per actuator, with independent movement for each actuator. This is ideal for systems that do not require synchronized motion or where you need individual actuator control.

How can I switch between momentary and non-momentary modes on the PA-28 controller?

Changing between momentary vs non-momentary control box settings requires access inside the enclosure. Once you have access, follow the steps below:

Momentary Mode

Ensure the Jumper S1 on the PCB is connected
Hold UP to extend the actuator, let go to stop the actuator
Hold DOWN to retract the actuator, let go to stop the actuator

Non-Momentary Mode

Ensure the Jumpers S1 on the PCB is disconnected
Press UP to extend the actuator, Press UP again to stop the actuator
Press DOWN to retract the actuator, Press DOWN again to stop the actuator
If DOWN is pressed while the actuator is extending, it will reverse direction and begin to retract

What is the RF range of the remote and how do I assign each button to a specific actuator channel?

The PA-28 has an RF range of 30–50 ft in open air paired with the RF remote actuator controller. The buttons automatically assign to channels once a dual channel remote is paired successfully. For actuator remote pairing, please see the Remote Synchronization Process:

Open the control box and press the white button. the blue LED with turn on
Press any button on the remote and the LED will turn off
The remote is now saved to the control box
A maximum of two remotes can be saved to one control box

What types of linear actuators are compatible with the PA-28 and what wiring setup is required?

Actuator compatibility requirements for the PA-28 include models having brushed DC motors, 12 VDC operation, and a current draw below 15A per channel. The output ports are compatible with 2-Pin Molex Mini-Fit Jr connectors found on many actuators to ensure simple plug-and-play compatibility.

What safety protections are built into the PA-28 and how can I troubleshoot if a fuse blows or a channel stops working?

The PA-28 offers an in-line fuse as protection for short circuit safety. If a channel stops, check for pinched wires, shorts, blown fuses, reversed polarity, and undersized power supplies by measuring the output values and testing for continuity using a multimeter. Replace fuses as necessary with the listed rating only.
