12 VDC Control Box - 2 Channel - 30A - Parallel Control - Wireless Remote
Model: PA-30

12 VDC Control Box - 2 Channel - 30A - Parallel Control - Wireless Remote

Model: PA-30
In stock
Ships within 24 hours
Instant Quote
Regular price
$98.99
Sale price
$98.99
7-9 units
10-19 units
20–49 units
Quantity
-
+

Description
PA-30 Specifications

The PA-30 dual channel control box allows for parallel control of linear actuators. Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 30-50 feet away (open air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

Using the included wire harness, connect the linear actuators to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-30 is designed to handle a maximum of 15A per channel. Please note that linear actuators connected to the PA-30 will travel in parallel and will not be synchronized to one another

Please see the PA-30 Data Sheet for information about controls, wiring, and troubleshooting.

PA-30 Data Sheet
Specifications
PA-30 Specifications

The PA-30 dual channel control box allows for parallel control of linear actuators. Using the RF remote provided, users have the ability to extend, stop, and retract their actuators from up to 30-50 feet away (open air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

Using the included wire harness, connect the linear actuators to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-30 is designed to handle a maximum of 15A per channel. Please note that linear actuators connected to the PA-30 will travel in parallel and will not be synchronized to one another

Please see the PA-30 Data Sheet for information about controls, wiring, and troubleshooting.

PA-30 Data Sheet
Product Specifications
Control Ability:
Will control multiple actuators at the same time
Input Voltage:
12 VDC
Output Power:
12 VDC
Current:
30 Amps (15A per channel)
Kit Includes:

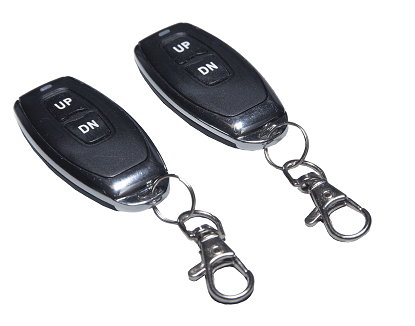

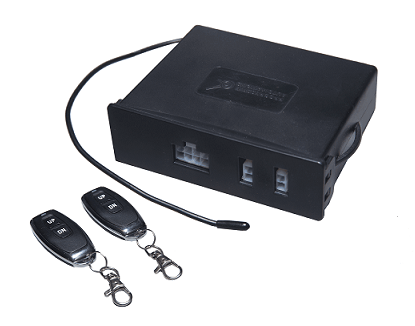

1 control box and 2 wireless remotes
Remote Functions:
up, down (both momentary and non-momentary)
Remote Battery Type:
2 x CR2016 3V Lithium cell
Size:
4.5" x 1.3" x 3.3"
Unit Weight:
0.95 lbs
AC Power Option:
with AC-15, PS-10, PS-11 or PS-12
18 Months
Data Sheet
12 VDC CONTROL BOX - 2 CHANNEL - 30A - PARALLEL CONTROL - WIRELESS REMOTE

PA-30 Data Sheet
