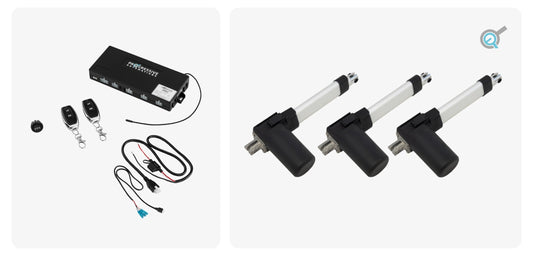

12 VDC Control Box - 2 Channel - 30A - Parallel Control - Wireless Remote

Parallel actuator control using the PA-30 runs multiple actuators at the same time without feedback and works well for non-critical alignment. Synchronized actuator control, such as using the PA-CB40, uses positional feedback in the process to keep actuators level and in step, ideal for lids, platforms, or lifts that must stay square.

Changing modes for momentary and non-momentary mode control requires access inside the enclosure. Once you have access, follow the steps below:

Momentary Mode

• Ensure the Jumper S1 on the PCB is connected
• Hold UP to extend the actuator, let go to stop the actuator
• Hold DOWN to retract the actuator, let go to stop the actuator

Non-Momentary Mode

• Ensure the Jumpers S1 on the PCB is disconnected
• Press UP to extend the actuator. Press UP again to stop the actuator
• Press DOWN to retract the actuator. Press DOWN again to stop the actuator
• If DOWN is pressed while the actuator is extending, it will reverse direction and begin to retract

The PA-30 has a 30-50 ft range controller capability (open air) with the RF actuator remote. For pairing remotes, please see the Remote Synchronization Process:

• Open the control box, press and hold the white button and the blue LED will turn on
• While holding down the white button, press any button on the remote and the LED will turn off
• The remote is now synced to the control box
• A maximum of two remotes can be saved to one control box

The power source selection compatible with PA-30 is any 12V actuator power supply that can meet the total actuator current draw for your use case; however, we do not recommend using the PA-30 for actuators that draw more than 15A per channel.

The inline fuse opens when there is a short or a significant spike in current to help protect the controller and actuators, mainly as short circuit protection. Disconnect power, open the holder, and replace the fuse with the same type and rating listed in the manual.
