12 VDC - Synchronized Dual Hall Effect Actuator Control - 20A - Wireless Remotes

12 VDC - Synchronized Dual Hall Effect Actuator Control - 20A - Wireless Remotes

Model: PA-40

In stock
Ships within 24 hours
Volume Discount
1-6 units $286.00 USD
7-9 units $277.42 USD
10–19 units $271.70 USD
20–49 units $265.98 USD
Regular price $286.00 USD
Regular price Sale price $286.00 USD
Sale Sold out
  • Linear Actuator Calculator
  • Get Free Actuator Guide
View full details
Description
PA-40 Specifications

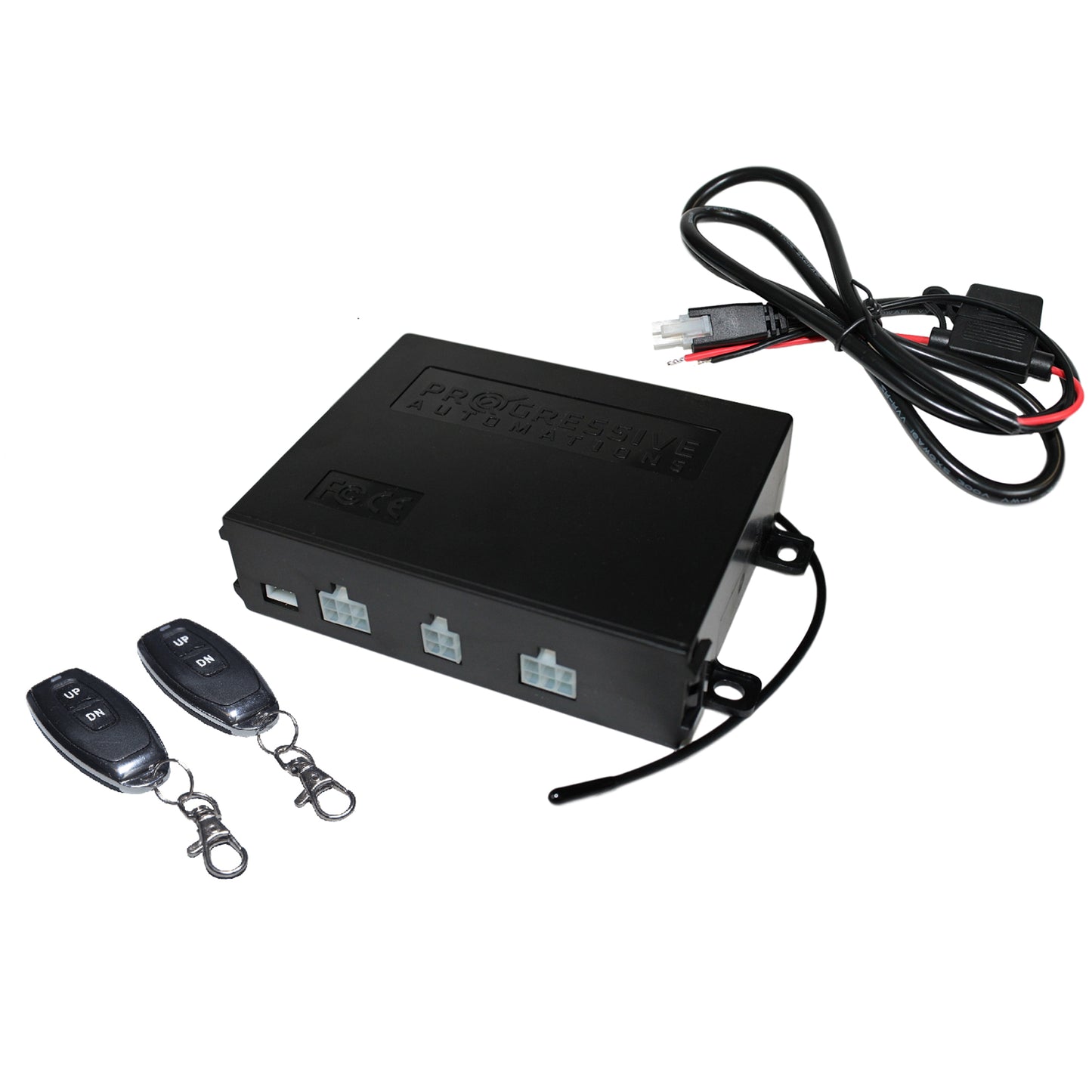

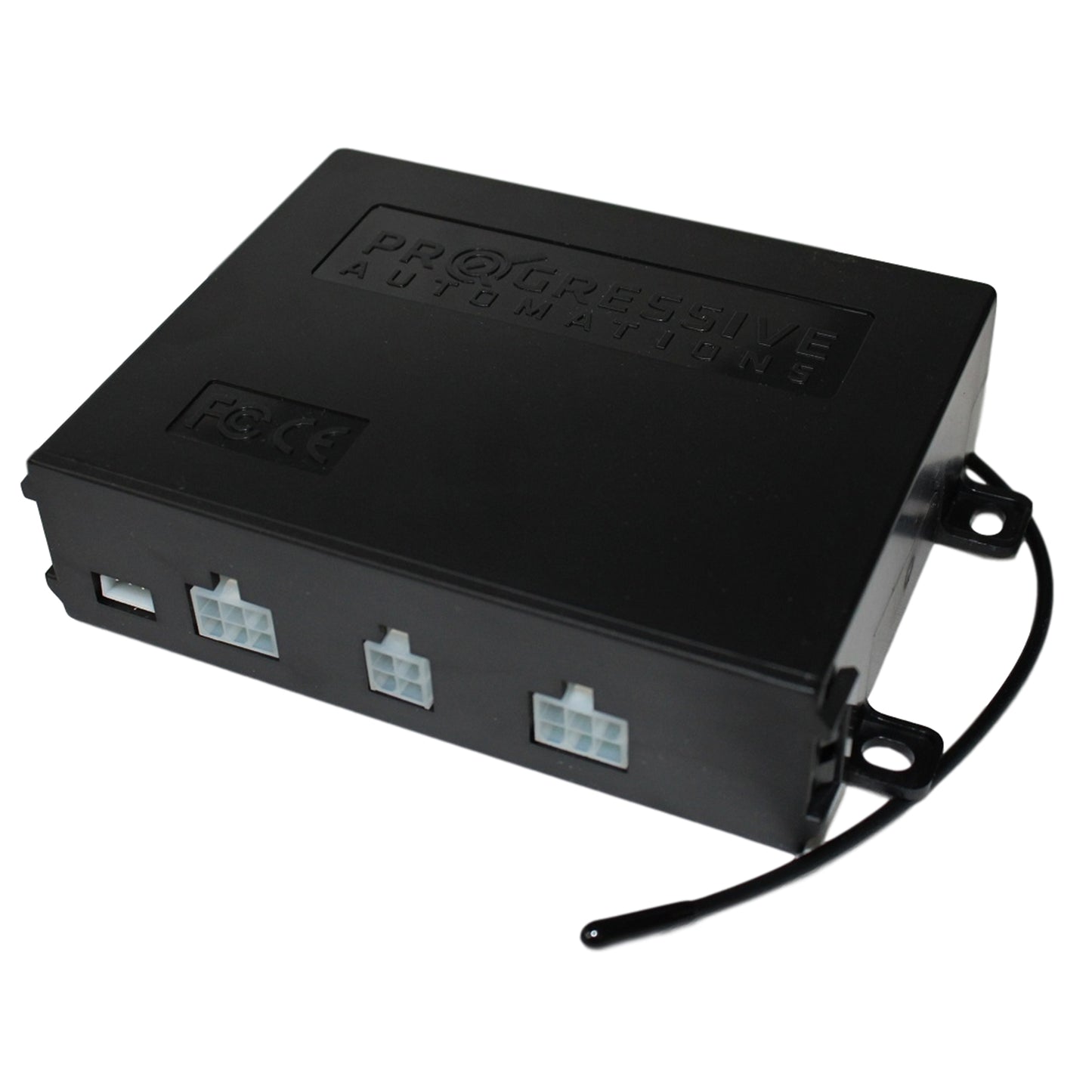

The PA-40 control box allows for synchronous control of two linear actuators with hall effect feedback. Using the RF remote provided, users have the ability to extend, stop, and retract their synchronized actuators from up to 30-50 feet away (open air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

Using the included wire harness, connect the linear actuators to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-40 is designed to handle a maximum of 10A per channel.

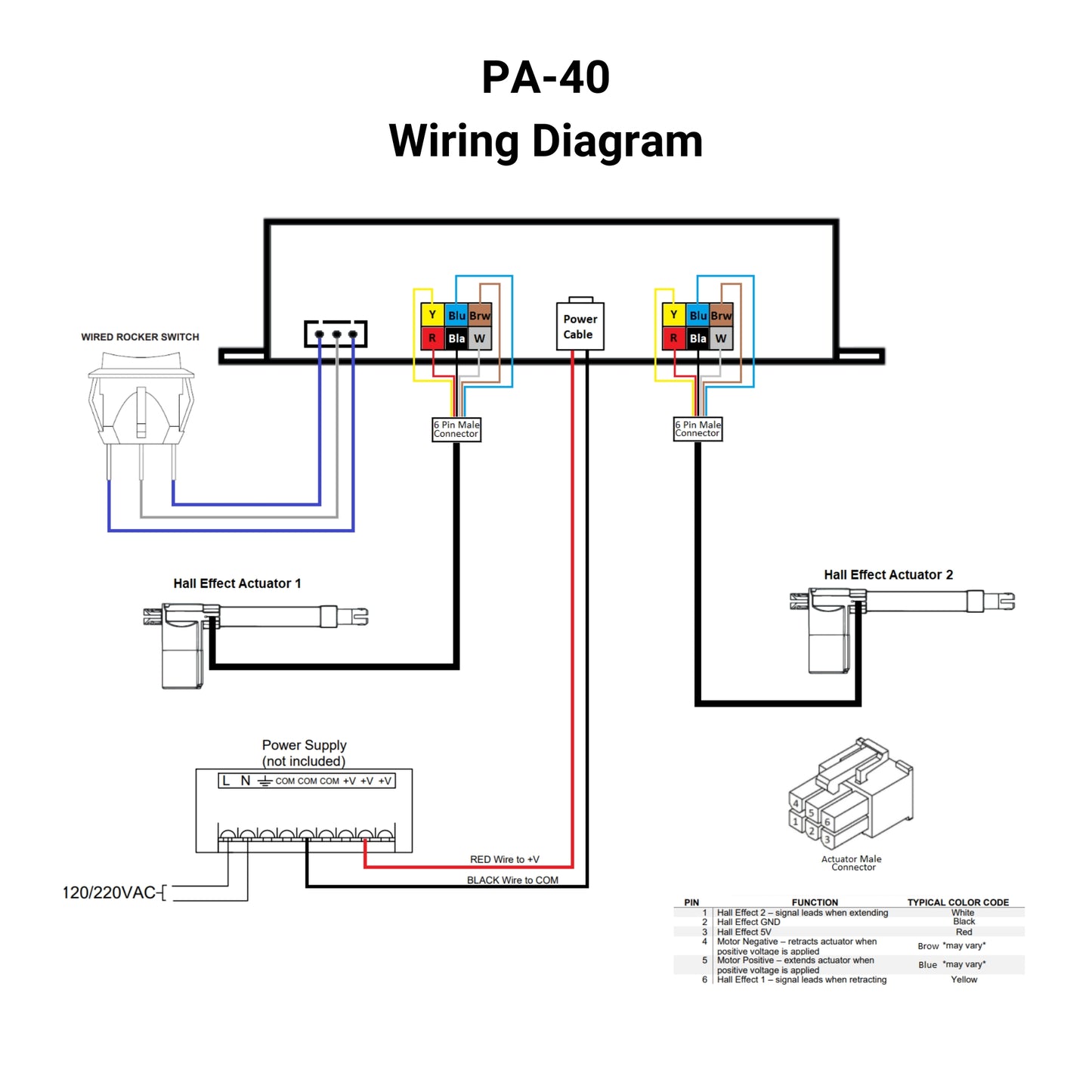

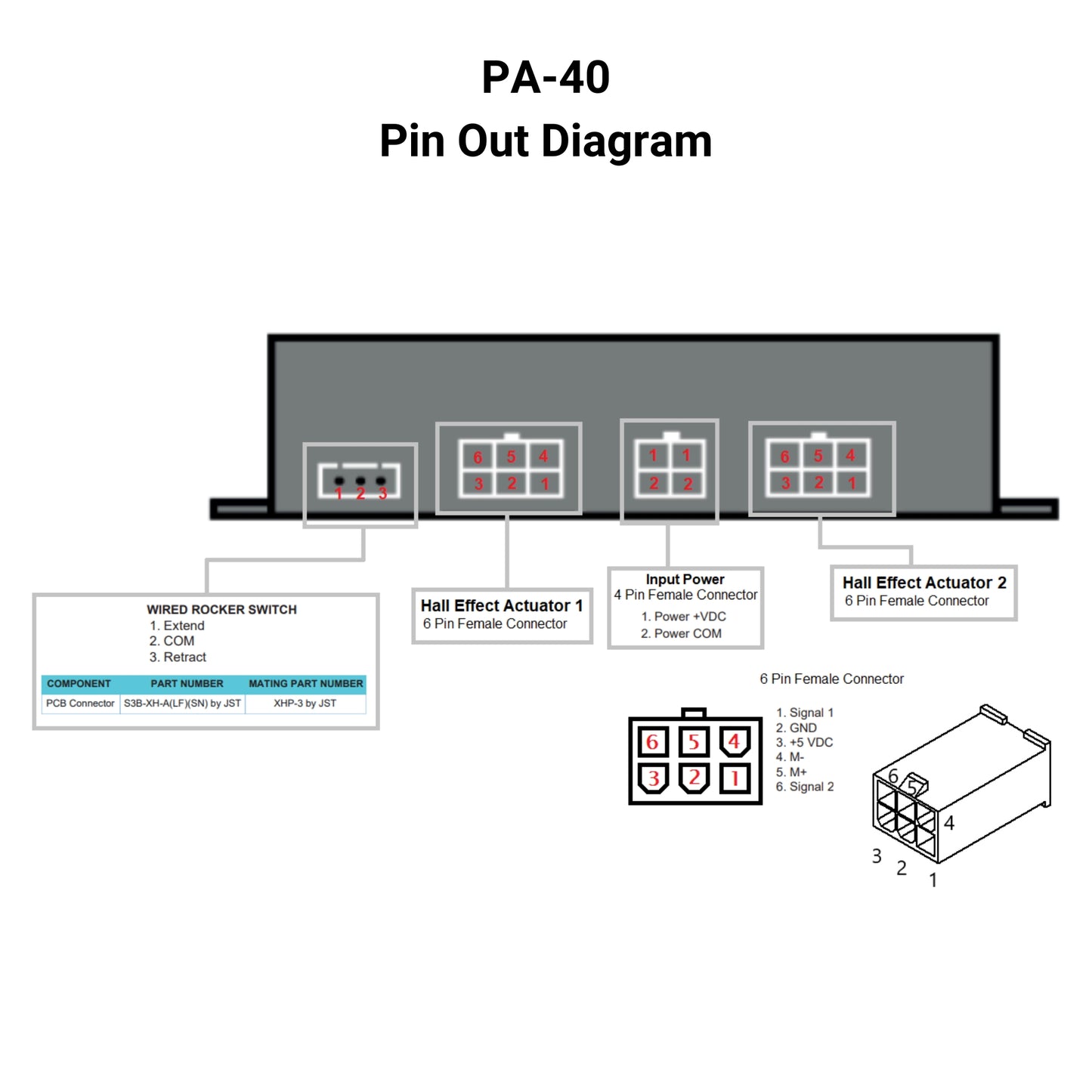

Please see the PA-40 Data Sheet for information about controls, wiring, and troubleshooting.

* Only compatible with 12 VDC hall effect type actuators. Controls 2 matching Hall Effect actuators simultaneously to travel the same speed together in the same direction. Ensure PA-04-HS actuators are not fully loaded to stay within the current rating.

Overview
PA-40 Specifications

The PA-40 control box allows for synchronous control of two linear actuators with hall effect feedback. Using the RF remote provided, users have the ability to extend, stop, and retract their synchronized actuators from up to 30-50 feet away (open air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits.

Using the included wire harness, connect the linear actuators to the control box. Apply 12VDC across the power wires and the system is now ready to use. It is important to ensure that the power supply has a sufficient amperage rating to control the linear actuators. The PA-40 is designed to handle a maximum of 10A per channel.

Please see the PA-40 Data Sheet for information about controls, wiring, and troubleshooting.

* Only compatible with 12 VDC hall effect type actuators. Controls 2 matching Hall Effect actuators simultaneously to travel the same speed together in the same direction. Ensure PA-04-HS actuators are not fully loaded to stay within the current rating.

Product Specifications
Control Ability:
2 matching Hall Effect actuators simultaneously
Input Voltage:
12 VDC
Unit Weight:
0.6 lbs
Output Power:
12 VDC
Current:
20A (10A Per Channel)
Kit Includes:

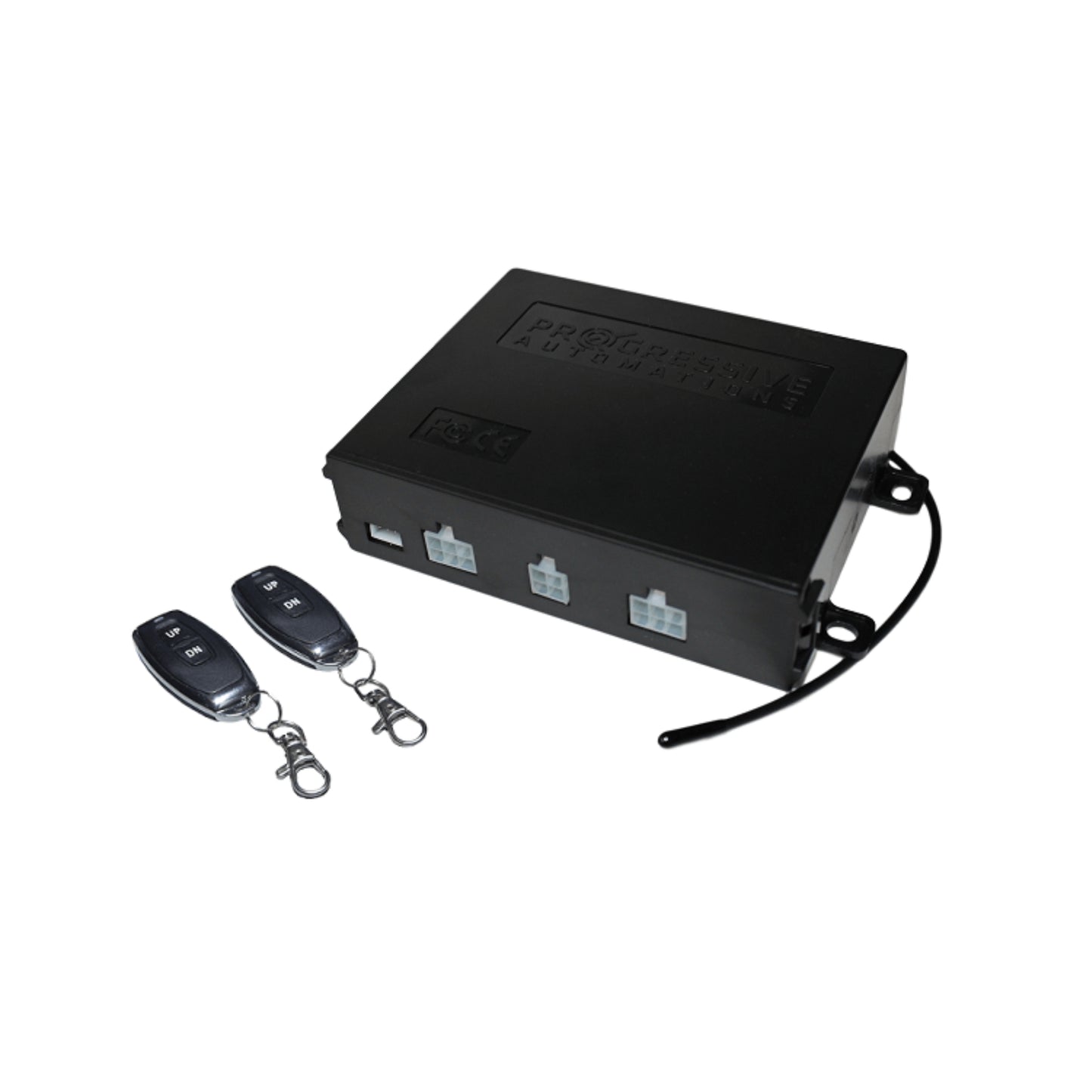

1 Control box, 2 Wireless remotes, 1 Power wire harness w/ in-line 30A fuse
Remote Functions:

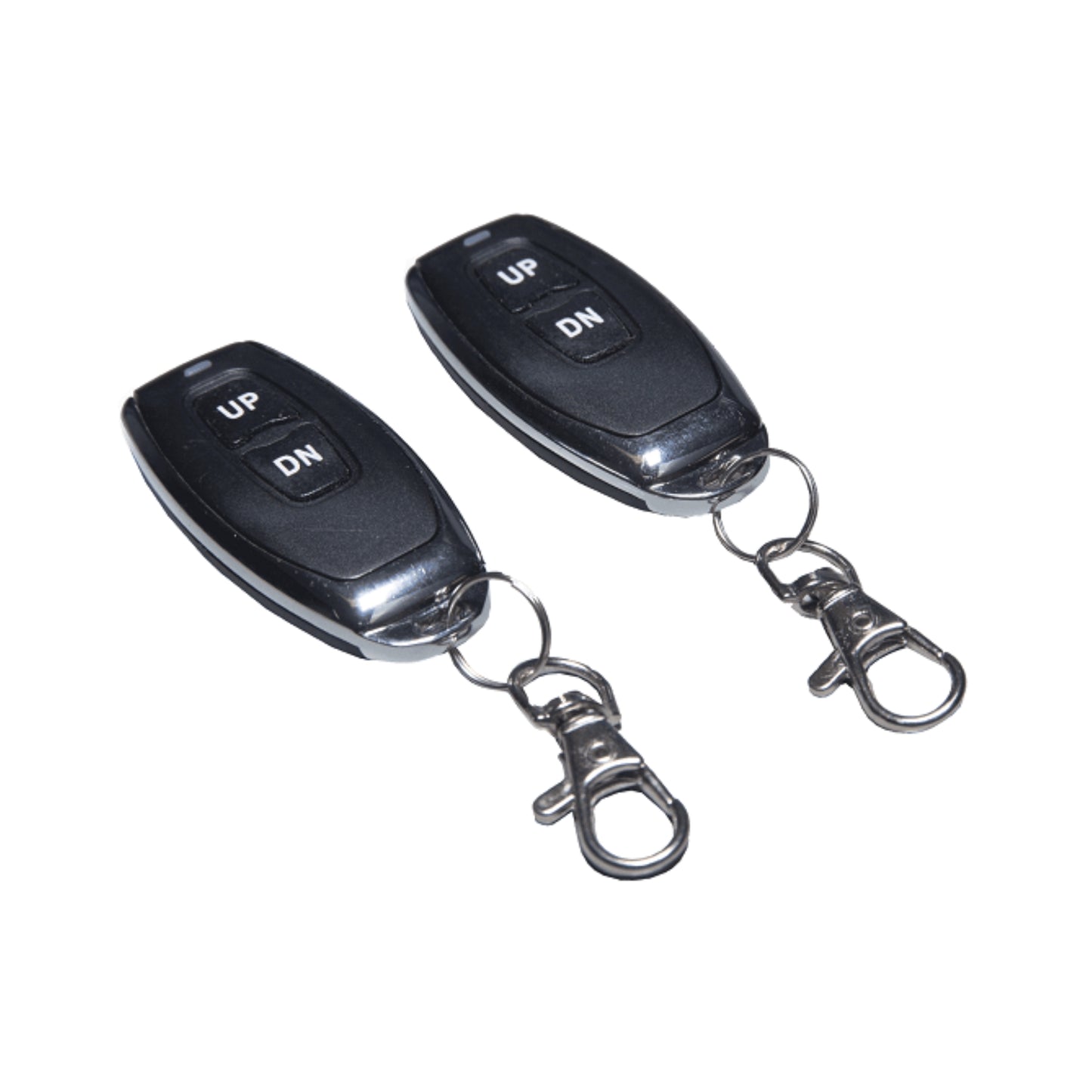

Up, Down, Pause (momentary/non-momentary)
Remote Battery Type:
2 x CR2016 3V Lithium cell
Size:

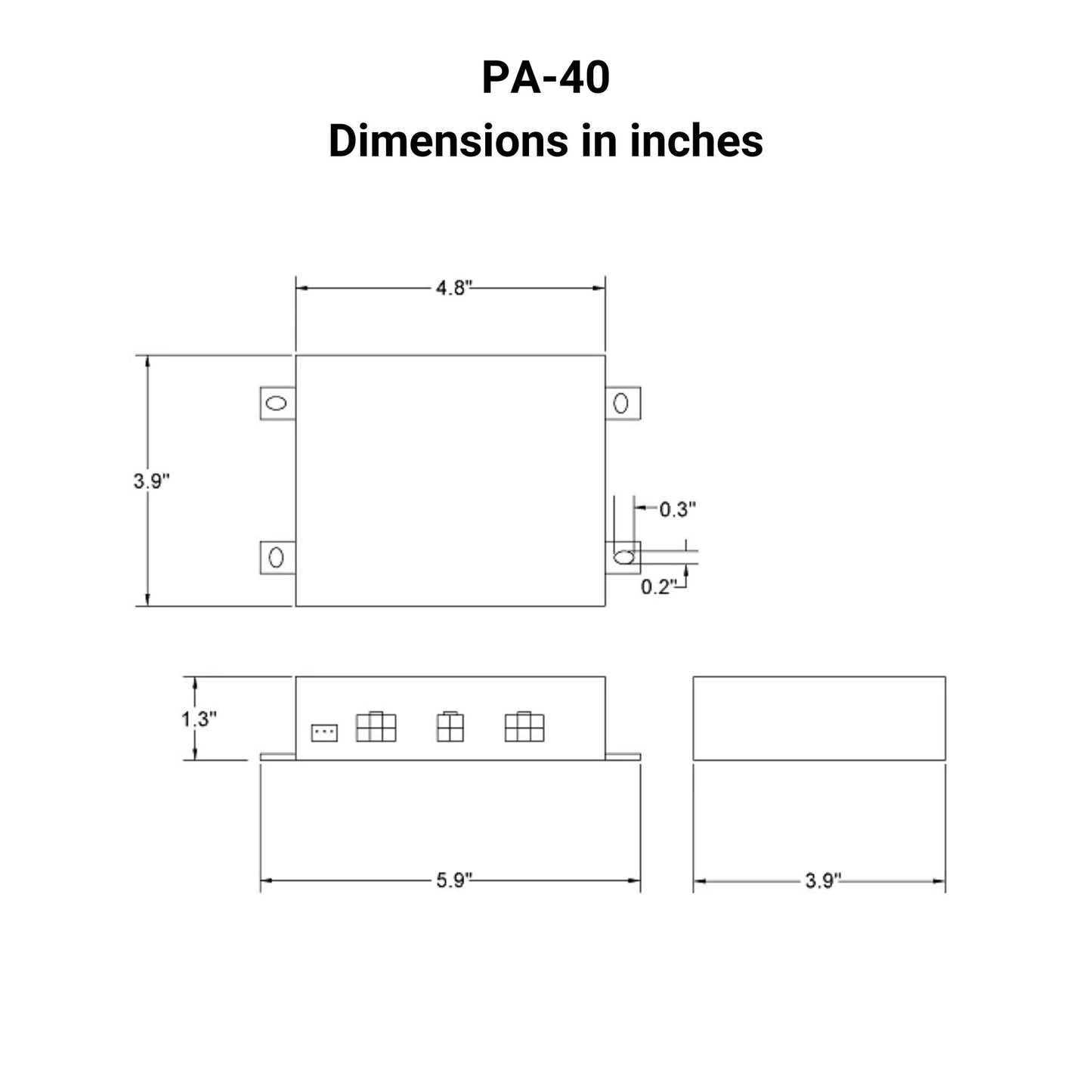

5.9" x 1.3" x 3.9"
AC Power Option:
with PS-20-12, PS-20-12-67, PS-40-12
Control Boxes Compatibility
