Linear Actuator

Linear Actuator

MODEL: PA-03

From:
$133.99
From:
$133.99
Specs
PA-03 PRODUCT INFO

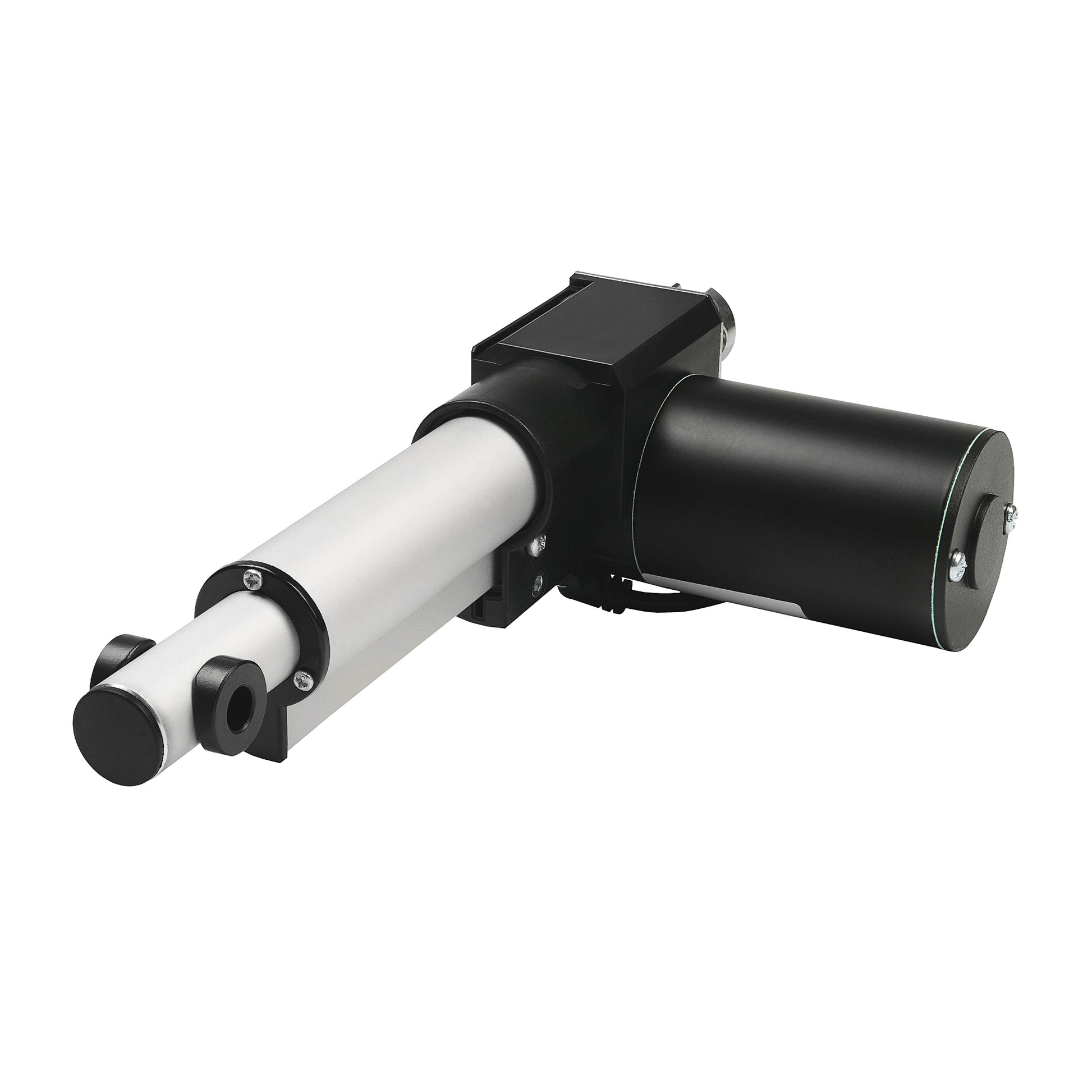

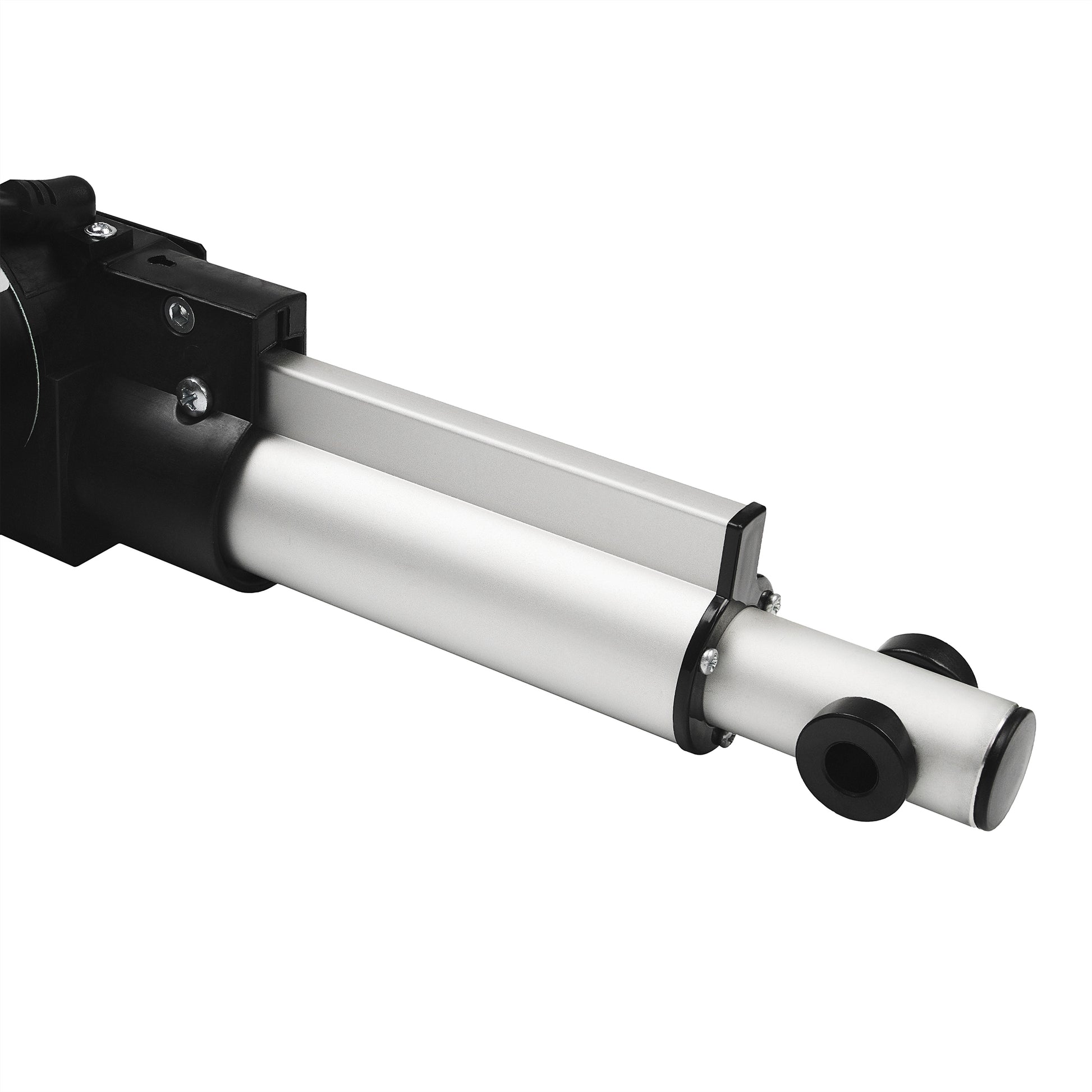

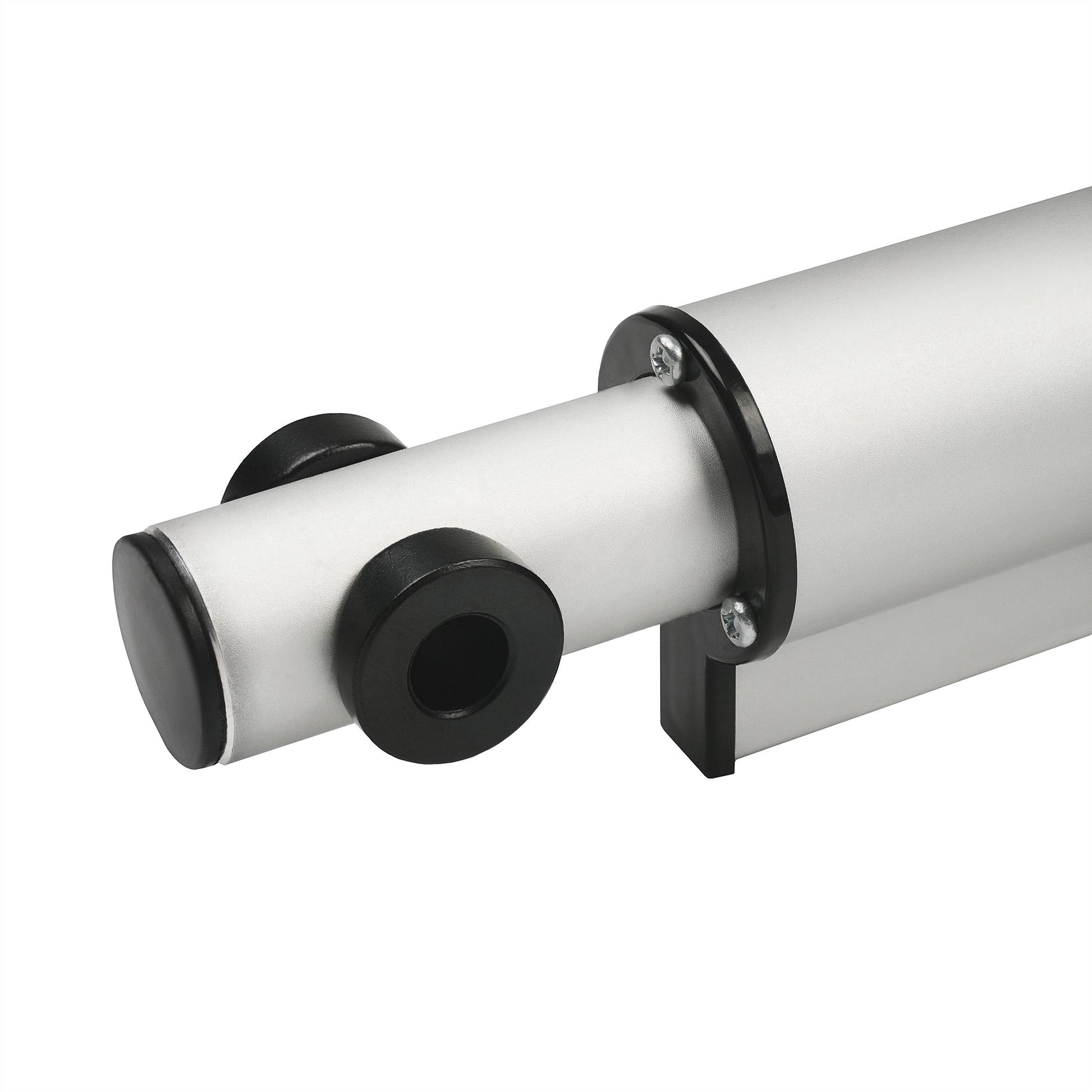

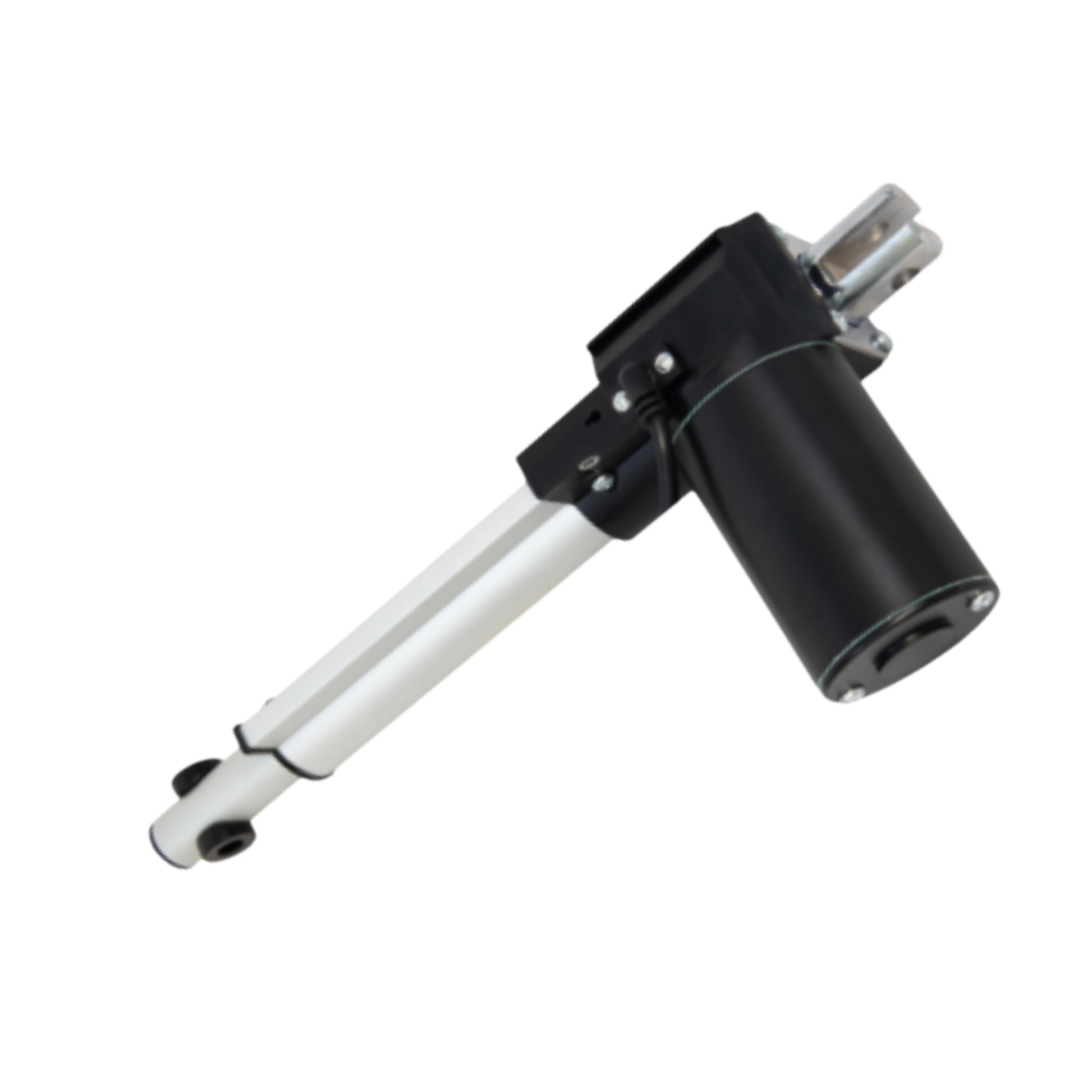

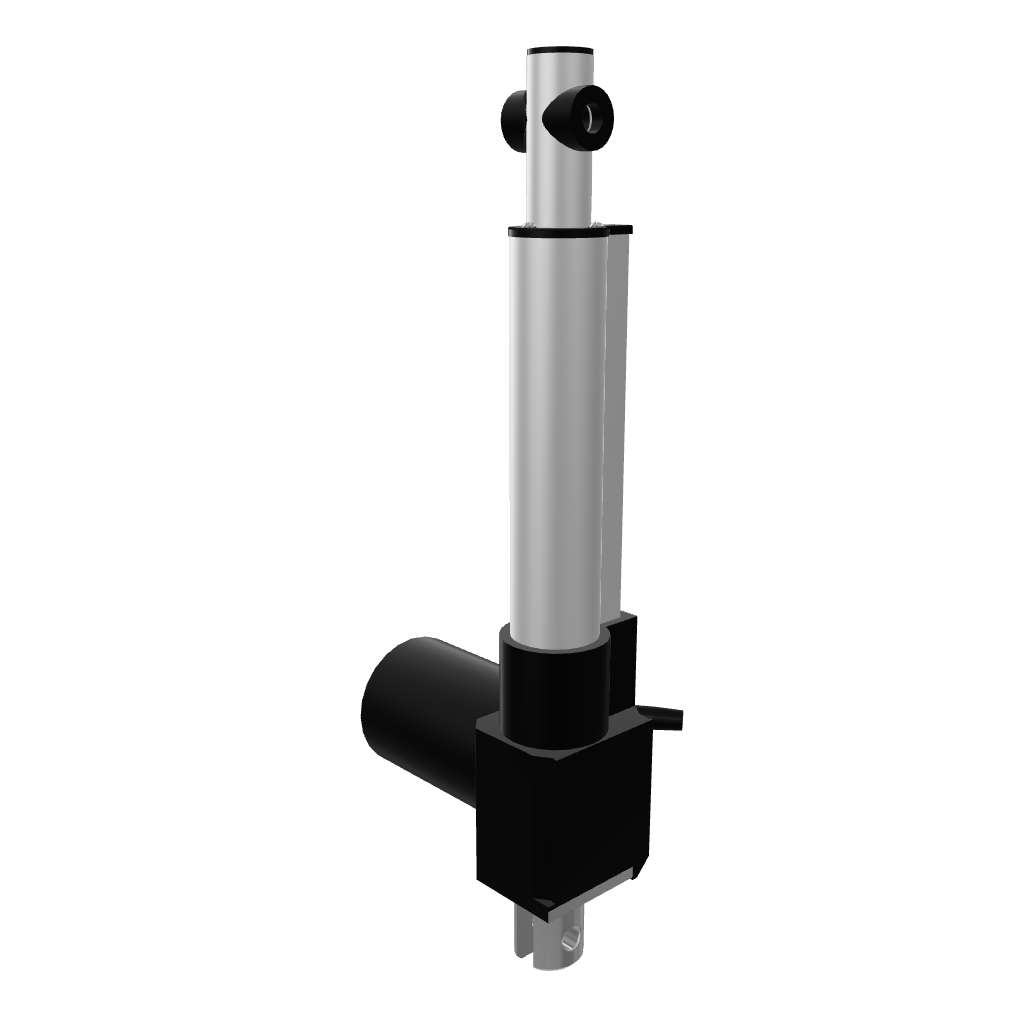

When you’re looking for power and performance, the PA-03 linear actuator is the only one you need. No matter what your use, these models add the automation you need to any project or application. These actuators can be found everywhere across hundreds of industries. They’re most commonly used in robotics, manufacturing and industrial automation, hobby and more. This actuator comes in forces of 200 lbs and 600 lbs with speeds of 0.39”/sec and 1.60”/sec. Strokes sizes available are from 4-24”.

Every PA-03 that you see in our dropdown menu is available and ready to be shipped out today.

CONTROLS & BRACKETS:

The PA-03 electric linear actuator is compatible with a variety of the control systems that we offer, allowing for versatile automation options. Our control boxes are all very easy to use and involve a simple wiring to set up. Take advantage of our many options and find the perfect control system for your actuator.

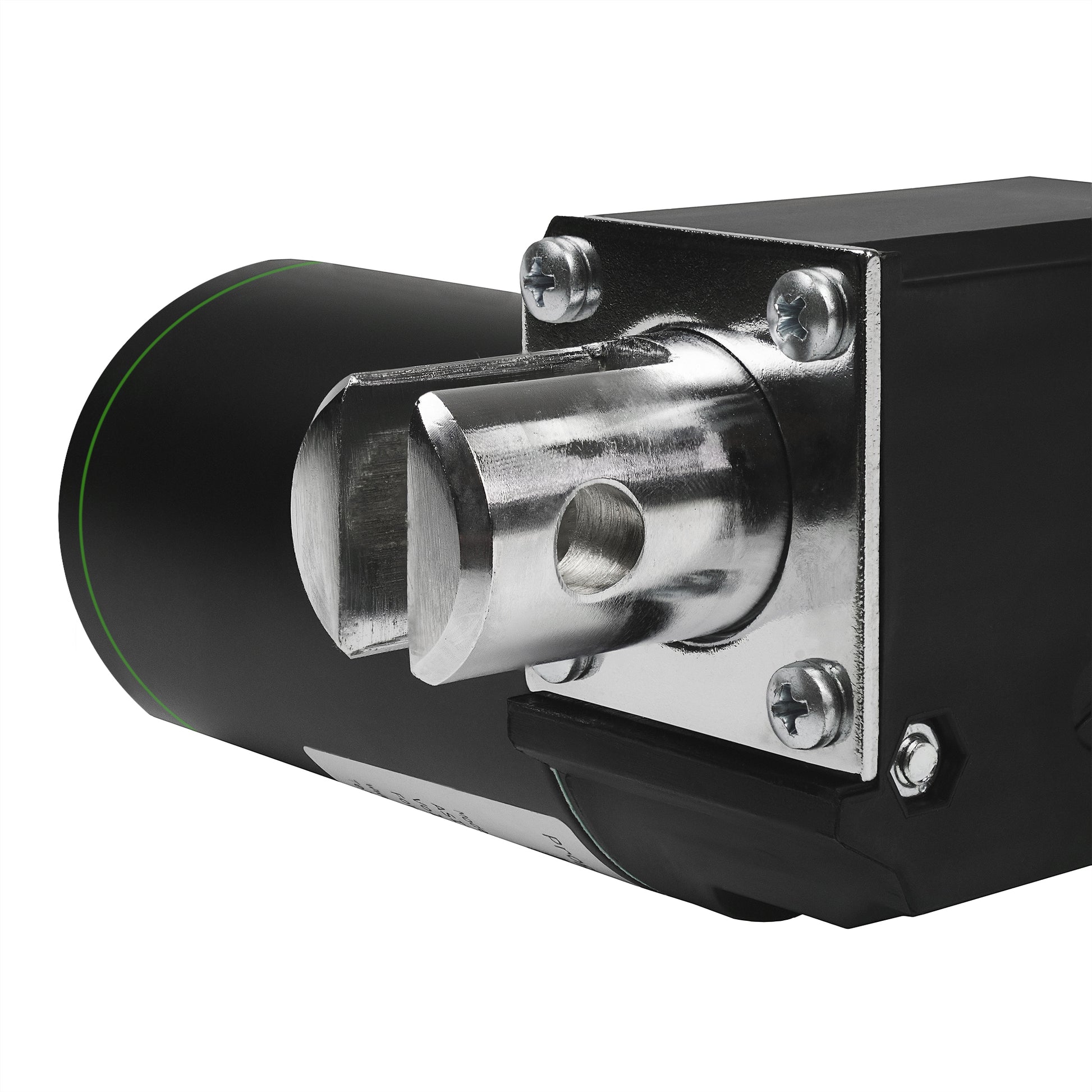

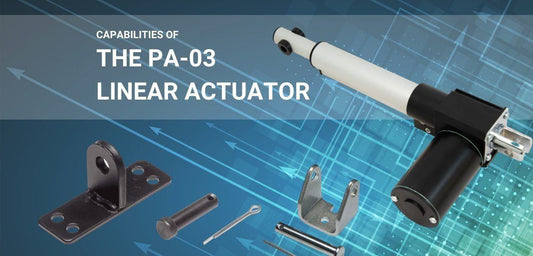

The BRK-02 is the standard bracket for our PA-03 linear actuators. They allow a full 180° of rotation and are manufactured with iron steel, making them sturdy and reliable. The BRK-01 T-shaped bracket is used for the motor end of the unit and provides an alternative mounting option when additional support is needed.

CUSTOM ACTUATOR:

Getting the actuator you want with the exact specifications you want is as easy as letting us know what they are. Our custom actuator service can manufacture a product for you in as little as 10-20 business days. Look at our Custom Options tab and contact us to discuss your specifications.

PA-03 SPECIFICATIONS

  • Input Voltage
    12V DC
  • Stroke
    4 - 24 inches
  • Force
    200 lbs and 600 lbs
  • Speed
    0.39"/sec (600 lbs); 1.60"/sec (200 lbs)
  • Protection Class
    IP54
  • Operational Temperature
    -25C~+65C
  • Noise
    db<45(A)
  • Duty Cycle
    20%
  • Limit Switch
    Built In, Non-Adjustable
  • Current (full load)
    4.5A (200 lbs); 7.6A (600 lbs)
  • Mounting Holes
    0.40"
  • Motor Type
    Brushed DC Motor
  • Screw Type
    ACME
  • Housing Type
    Aluminum Alloy

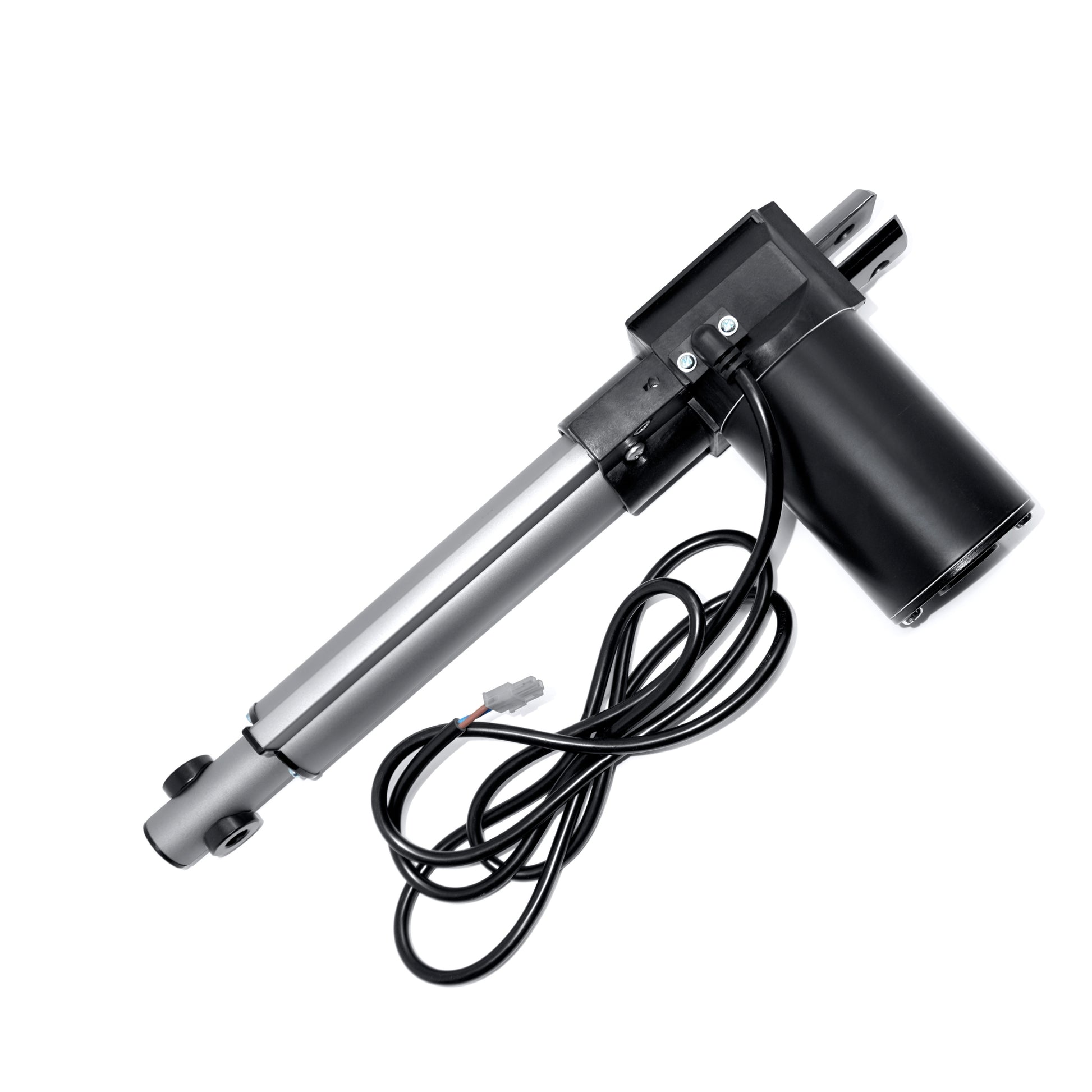

  • Wire Length
    60"
  • Fully Retracted
    6.89" + stroke
  • Fully Extended
    6.89" + stroke + stroke
  • Certifications
    CE
  • Unit Weight
    0 lbs
  • Warranty
    18 Months
Pdf

Product PDF

PA-03 PRODUCT INFO
3D Models
Video

Videos

Custom Options

Custom Options

  • · Customize force to 1,000 lbs (0.24"/sec)
  • · Customize voltage to 24V
  • · Customize stroke length from 1-40"
  • · Add Hall Effect Sensor (max stroke 40") or Reed Switch
  • · Customize actuator mounting holes and position
  • · Customize internal limit switches
  • · Add specific connector
  • · Customize actuator dimensions
  • · IP66 Protection Rating

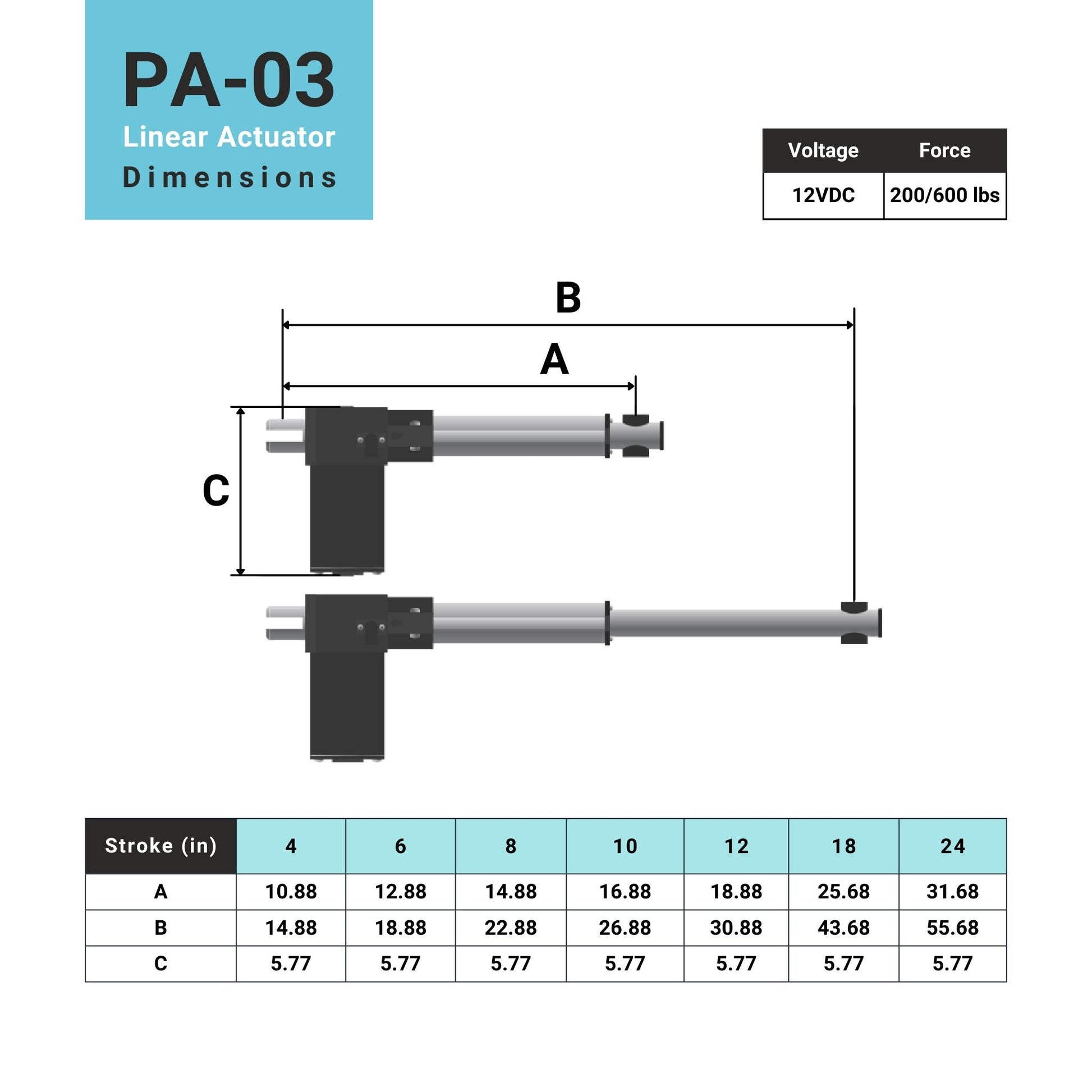

Dimensional Drawing

Dimensional Drawing

Linear Actuator
Warranty

Warranty

We guarantee that all products you receive will be brand new, and have been thoroughly tested for defect and performance before being shipped to you. At Progressive Automations Inc we put our products to the test, stressing their performance in heat, cold, liquid, and under heavy loads and high duty cycles. The specifications listed on our products aren't just approximations, they're backed up by hours and days of testing. We're so confident in our actuators quality, performance, and endurance, that we proudly offer the industry leading 18 month warranty.

All products produced and sold by progressiveautomations.com are covered by our comprehensive 18 month warranty against defect or flaw. If we sell you a product, and it stops working before 18 month pass, we will replace it free of charge. However, the product has to only have been used within its rated parameters and environment conditions.
